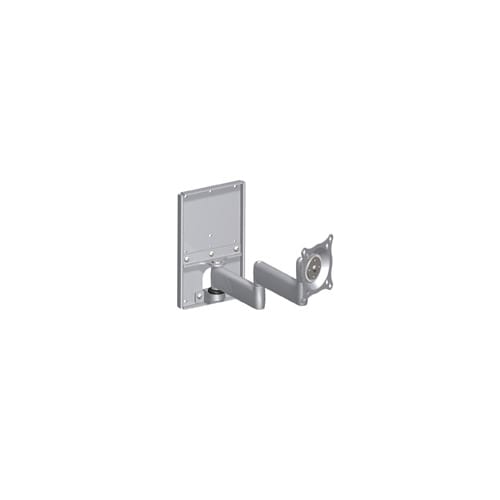

Dual Arm Metal Stud Wall Mount - KWDSK110S
Single steel stud wall mount for KWD dual swing arms, supporting 40 lbs with tilt, swivel, and extension adjustability
The Chief KWDSK110S is a specialized workstation mounting solution designed to install a KWD dual swing arm wall mount to a single metal stud. This silver-finished mount provides an ergonomic setup for home or office environments, offering high levels of adjustability including tilt, swivel, and extension. It allows users to extend the display over 15" (381 mm) to reach the ideal viewing angle and can fold in close to the wall to maintain a low-profile appearance. This TAA compliant mount supports both landscape and portrait orientations and features a minimum installation depth of 2.85 in (7.2 cm). For precise installation, the mount includes post-installation leveling rolls. It is compatible with VESA 75 x 75 mm and 100 x 100 mm patterns, though additional interface brackets may be required for non-VESA compliant displays. This mount is built to support a weight capacity of 40 lbs (18.1 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 2.85 in (7.2 cm) |
| Shipping Dimensions | 13.25" x 13.25" x 4.5"(336.6 x 336.6 x 114.3 mm) |
| Shipping Weight | 8.9 lbs (4 kg) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Silver |
| Number of Displays | 1 |
All other specifications 6
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872106526 |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Security Hardware Kit - KSA1005B
KSA1005BDiscontinued
Print Security Hardware Kit (obsolete)
KSA1005SDiscontinued
Verified fitment
Questions about this part
Will the KWDSK110S fit my display?
This mount is verified against 3,389 display models from 173 manufacturers, including LG ELECTRONICS, SAMSUNG, SONY, NEC, and PHILIPS.
Does this mount require extra hardware for non-VESA screens?
The mount is VESA 75 x 75 mm and 100 x 100 mm compliant. If your display is not VESA compliant, you will need to purchase separate interface brackets like the FSB1U.
What do I need to install this on a metal stud?
This SKU is designed specifically to attach a KWD dual swing arm mount to a single steel stud. Ensure your installation environment has the necessary backing to support the 40 lbs (18.1 kg) capacity.
How much can the display be adjusted away from the wall?
The arm provides an extension of over 15" (381 mm) to help you achieve the optimal viewing angle for your workstation.
Which document do I need for a submittal?
For technical drawings, use the KWDSK110 Technical Drawing (PDF), or the KWDSK CAD Drawing (dwg) for architectural modeling.
