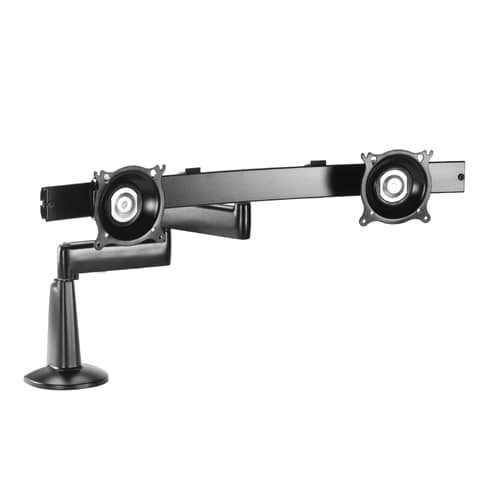

Dual Arm Desk Mount, Dual Monitor - KCD220B
Dual arm workstation mount for two displays, featuring Centris Technology tilt and multiple mounting options for desk or grommet installation
The Chief KCD220B is a dual arm workstation mount designed to ergonomically position two displays on a desk or tabletop. This solution utilizes Centris Technology to provide smooth, fingertip tilt adjustment in all directions, ensuring the screen angle stays exactly where the user sets it. For installers seeking flexibility in workspace configuration, the KCD220B offers three distinct mounting options: an edge clamp, a grommet clamp, or a grommet thru-bolt. The mount supports both landscape and portrait orientations and includes a post-installation leveling roll to fine-tune the setup. To maintain a professional appearance, the design minimizes visible hardware from the underside of the work surface. Tension at the pivot points is independently adjustable, which allows for customized control and optimization for touchscreen use. This mount is VESA® 75 x 75 mm and 100 x 100 mm compliant. For displays that do not follow these patterns, various interface brackets are available to ensure a secure fit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 6.4 in (16.3 cm) |
| Shipping Dimensions | 19.25" x 13.75" x 6"(489 x 349.3 x 152.4 mm) |
| Shipping Weight | 23 lbs (10.4 kg) |
| Weight Capacity | 17 lbs (7.7 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-Tabletop |
| Color | Black |
| Desktop Thickness Range | 0.5" - 3.5" (13mm - 89mm) |
All other specifications 8
| Grommet Hole Size Range | 0.38" - 3" (10mm - 76mm) |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| UPC | 841872044705 |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Centris Quick Connect Bracket - KSA1024B
KSA1024B$61.60
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Security Hardware Kit - KSA1005B
KSA1005BDiscontinued
Verified fitment
Questions about this part
Will the KCD220B fit my specific monitor?
The KCD220B is verified against 5,556 display models from 175 manufacturers, including LG 15LC1, Samsung 150S, NEC 1940CX, Sharp E242NBK, Dell 1703FP, and Philips 140S1M.
What are the mounting requirements for the desktop?
This mount accepts a desktop thickness between 0.5" and 3.5" (13mm - 89mm). For grommet installations, the hole size must be between 0.38" and 3" (10mm - 76mm).
What is the weight capacity for each arm?
The KCD220B features a total weight capacity of 17 lbs (7.7 kg) per display. It is compatible with VESA® 75 x 75 mm and 100 x 100 mm patterns.
Can I use this with non-VESA compliant displays?
Yes, while the mount is natively VESA® compliant, various interface brackets such as the FSB1U or FSB4243B can be used to adapt non-VESA displays.
How do I adjust the tilt and tension on the arms?
The KCD220B uses Centris Technology for fingertip tilt adjustment and features independently adjustable tension at the pivot points to suit your specific display or touchscreen needs.
