Drop Pipe Camera Adapter
White camera adapter for 1.5-in. drop pipes, compatible with Chief CMS series, featuring 1/4-20 mounting screws

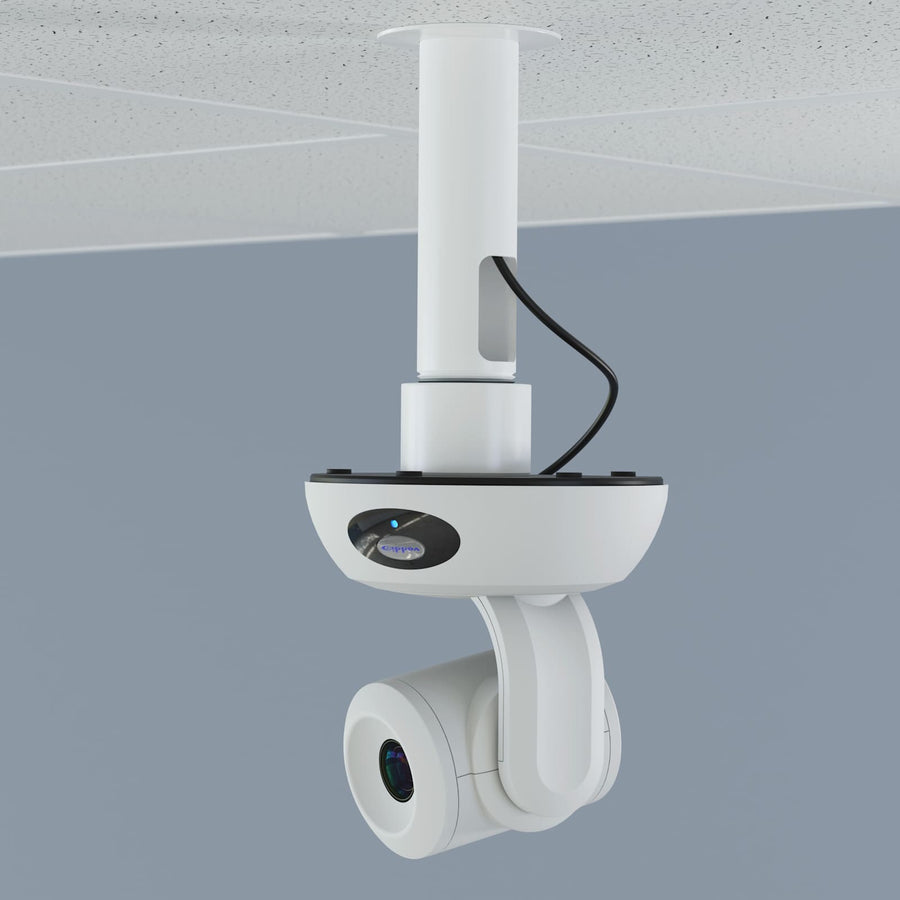

The Vaddio 535-2000-300W is a white drop pipe camera adapter designed to facilitate the mounting of inverted cameras. This adapter screws directly onto a 1.5-in. threaded NPT pipe or a 1.5-in. drop pipe, making it compatible with the Chief CMS series of fixed and adjustable drop pipes. Constructed from durable cold-rolled steel, the adapter provides a stable connection for ceiling-mounted or pole-mounted camera installations. To accommodate varying camera mounting thread depths, this unit includes two different lengths of 1/4-20 screws: a 1/4-20 x 0.875 in. screw and a 1/4-20 x 0.75 in. screw. This SKU features a white finish, distinguishing it from the black version available in the same series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 12" x 10" x 10" (304.8 x 254 x 254 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 840077508234 |
| Certifications | CEFCCTAA |
Resources
Questions about this part
What kind of pipe does the 535-2000-300W attach to?
This adapter is designed for 1.5-in. NPT pipes and is compatible with 1.5-in. threaded drop pipes, such as the Chief CMS series.
Will this work with my Chief CMS drop pipe?
Yes, the adapter is compatible with both Chief CMS fixed and adjustable drop pipes.
How do I handle different camera mounting thread depths?
The adapter comes with two 1/4-20 screws of different lengths: 0.75 in. and 0.875 in., allowing you to accommodate various camera specifications.
What is the difference between this and the black version?
The 535-2000-300W is the white finish variant; the black version is the other option available in this series.
Is this product TAA compliant?
Yes, this camera adapter is TAA compliant and carries CE and FCC certifications.
