Drop Pipe Camera Adapter
Adapter for mounting inverted cameras onto 1.5-in. drop pipes or standard NPT pipes

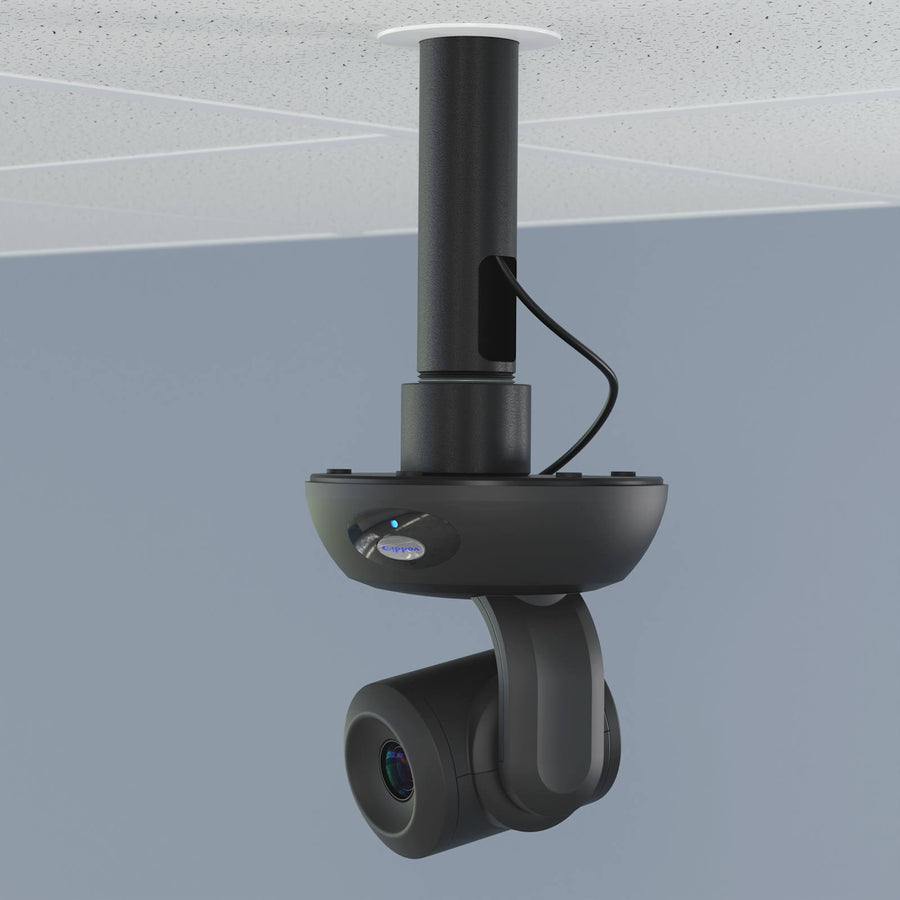

The Vaddio 535-2000-300 is a drop pipe camera adapter designed to facilitate the installation of an inverted camera. It screws directly onto a 1.5-in. threaded pipe, making it compatible with Chief CMS fixed and adjustable drop pipes as well as other standard 1.5-in. NPT pipes. This black, cold-rolled steel adapter provides a secure mounting point via a 1/4-20 screw. To accommodate varying camera mounting thread depths, the adapter includes two different screw lengths: a 1/4-20 x 0.875 in. screw and a 1/4-20 x 0.75 in. screw. This component is TAA compliant, CE, and FCC certified for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 12" x 10" x 10" (304.8 x 254 x 254 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 840077508081 |
| Certifications | CEFCCTAA |
Resources
Questions about this part
What type of pipe does the 535-2000-300 mount to?
This adapter is designed for 1.5-in. NPT pipes, including Chief CMS fixed and adjustable drop pipes.
Will this adapter work with my camera mounting depth?
Yes, it includes two different screw lengths, a 1/4-20 x 0.875 in. screw and a 1/4-20 x 0.75 in. screw, to accommodate different thread depths.
What is the difference between the 535-2000-300 and other models in this series?
This specific SKU features a black finish, while other versions in the series are available in white.
Is the 535-2000-300 TAA compliant for government contracts?
Yes, this adapter is TAA compliant and carries CE and FCC certifications.
What material is this camera adapter made from?
The adapter is constructed from cold-rolled steel for reliable mounting in professional environments.
