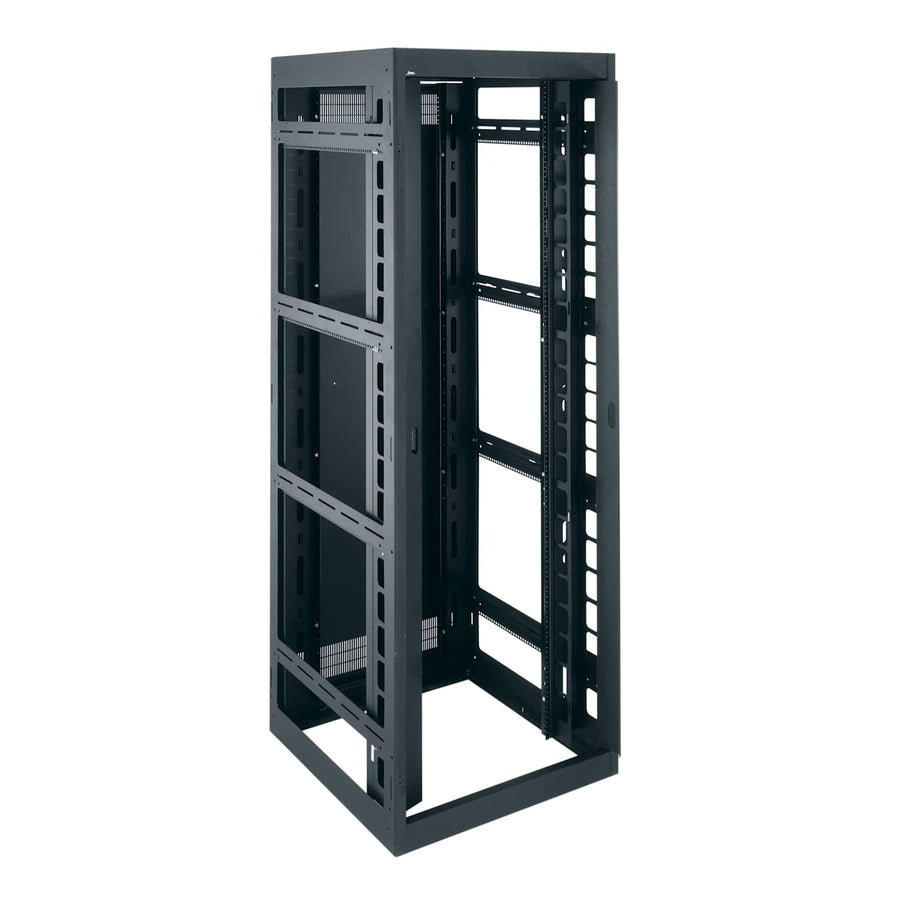

DRK Series 30 Inch Wide Rack - DRK19-44-42PRO
30-inch wide 44 RU floor-standing rack for high-density cable management with seismic rating and TAA compliance
The Middle Atlantic DRK19-44-42PRO is a 44 RU floor-standing rack purpose-built to support high-density cable management applications. Featuring a 30-inch wide footprint, this rack provides abundant internal space for routing 19-inch panel width equipment in network patching and cable-heavy environments. The steel construction is fully welded for maximum strength and is seismic rated to ASCE 7-10 standards, with an OSHPD number of 96-967. This specific model includes a partially vented locking rear door and comes with factory-mounted pre-installed cable ducts that feature hinged steel doors and magnetic closures. These ducts can be mounted in the front or the rear and are designed to accommodate both copper and fiber cables. The rack features standard front and rear adjustable cage nut rails with numbered spaces for easy alignment. This TAA compliant, gangable chassis is designed to accommodate significant weight, with a 10,000 lbs (4535.9 kg) total weight capacity and a UL load capacity of 2,500 lbs (1,134 kg). It provides a usable height of 77 in (195.6 cm) and a usable depth of 34.85 in (88.5 cm) within its 42 in (106.7 cm) total depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 83.49 in (212.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 267 lbs (121.1 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 34.85 in (88.5 cm) |
| Usable Height | 77 in (195.6 cm) |
All other specifications 16
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 30 in (76.2 cm) |
| Available Internationally | No |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Cage Nut |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747068782 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| OSHPD Number | 96-967 |
| Seismic Load Capacity | 755 lbs (342.5 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
Leveling Feet
LF$40.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Side Panels for 42-43 Inch Deep MRK or DRK Racks
SPN-44-423$1,434.60
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
115V Fan 10 Inch, 825 CFM
BMF-FAN10$429.30
44 RU Cable Duct for DRK Series
DRK-44DUCT$629.10

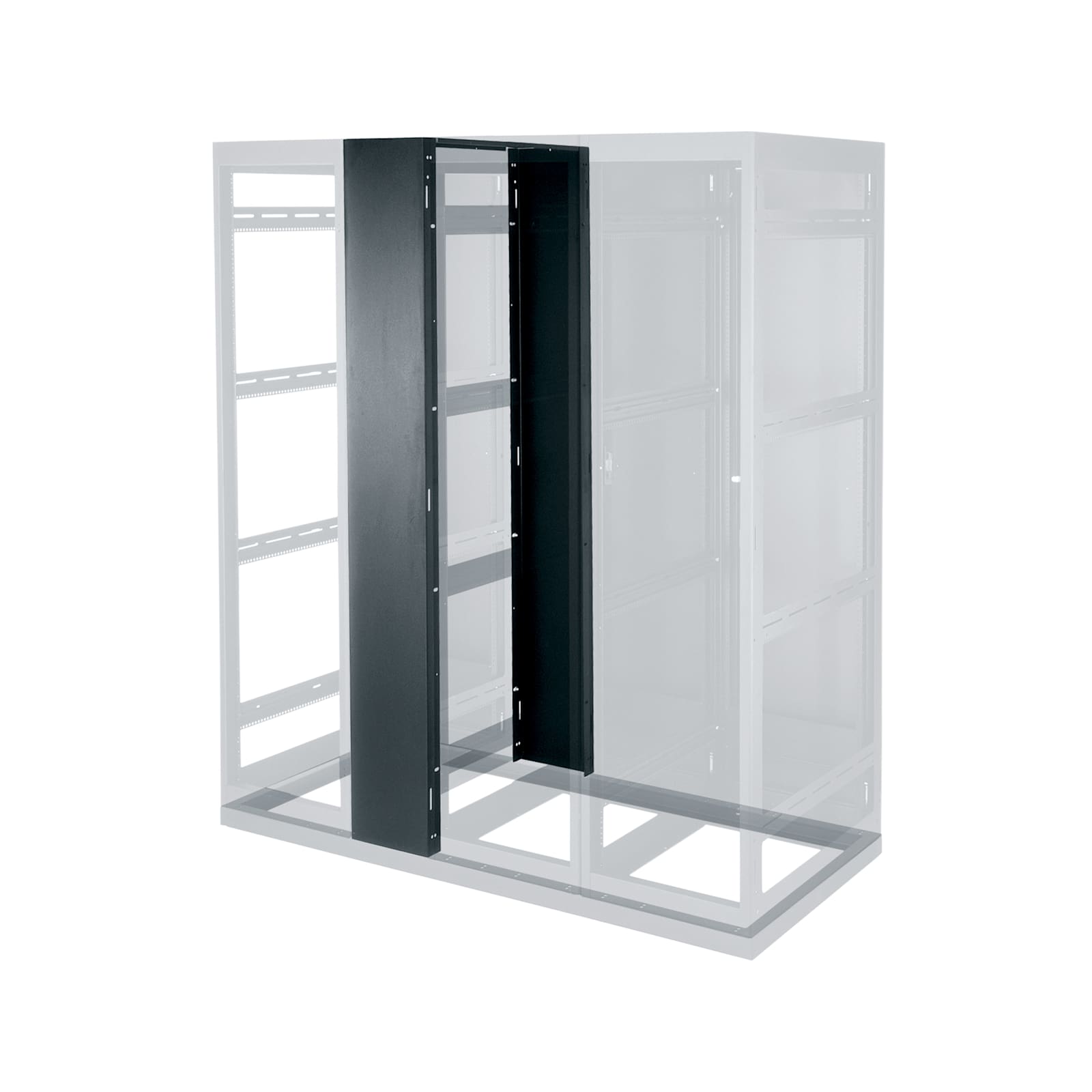

44 RU Cable Chase, 42 Inches to 43 Inches Deep for MRK,WRK,VRK Racks
CC-44-423$373.50
2 Bay Riser Base for 42 Inch Deep for DRK Racks
RIB-2-DRK-42
44 RU Plexi Vented Front Door for DRK Racks
DPVFD-44$1,629.90
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
Will the DRK19-44-42PRO fit my 19-inch equipment?
Yes, this rack is designed to accommodate standard 19-inch panel width equipment within its 44 RU usable height.
Is this rack suitable for seismic zones?
Yes, this is a seismic-rated rack that meets ASCE 7-10 standards and holds an OSHPD number of 96-967.
What accessories are needed to complete the enclosure?
This is a frame-only configuration; you may need to purchase items like SPN-44-423 side panels or specialized doors like the DPVFD-44 Plexi Vented Front Door.
Can I mount multiple DRK racks together?
Yes, the DRK series racks are gangable, allowing you to bolt multiple units together when fully loaded.
What is the actual usable depth for my hardware?
While the total depth is 42 in (106.7 cm), the usable depth for your equipment is 34.85 in (88.5 cm).
