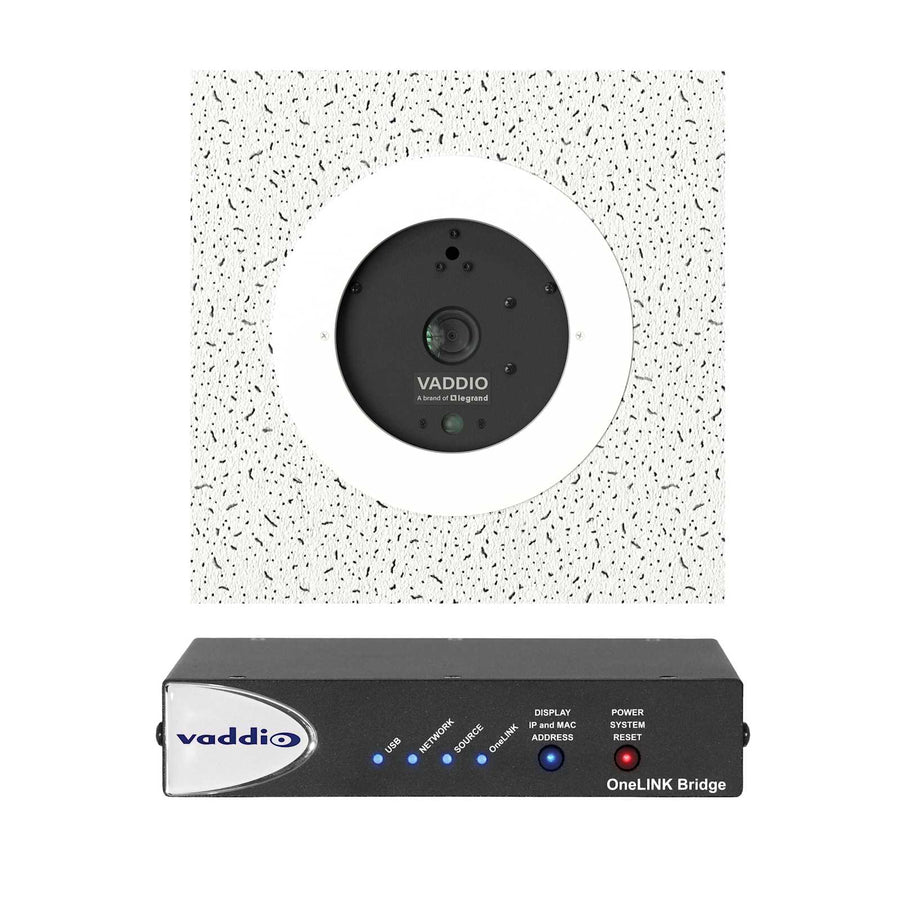

DocCAM 4K HDBT Document Camera with OneLINK Bridge

Ceiling-mounted 4K document camera with 30x optical zoom, HDBaseT connectivity, and OneLINK Bridge compatibility

The Vaddio DocCAM 4K HDBT provides 4K UHD image resolution up to 2160p at 30fps, making it a high-performance solution for medical schools, technical training, and higher education classrooms. This ceiling-mounted document camera features a 1/2.5-type Exmor R CMOS sensor with an 8.57 Megapixel resolution to deliver exceptional image clarity. For detailed overhead imaging, the camera utilizes a 30x optical zoom with a field of view ranging from 70.2° wide to 3.1° tele end. It supports multiple signal types, including 3G SDI, HDMI, and IP Streaming. The unit is designed for versatile installation; it can function as a standalone camera via HDMI or SDI, or integrate into a larger system using Vaddio OneLINK extension systems. When used with the Vaddio OneLINK Bridge, the system extends power, video, and control up to 328 ft (100m) and adds USB 3.0, HDMI, 3G SDI, and an audio mixer to the connection. Remote administration is simplified through a built-in web UI, and the camera supports 16 custom preset positions for rapid repositioning during presentations. For precise targeting during setup, a low-power laser pointer is integrated to assist with centering.
