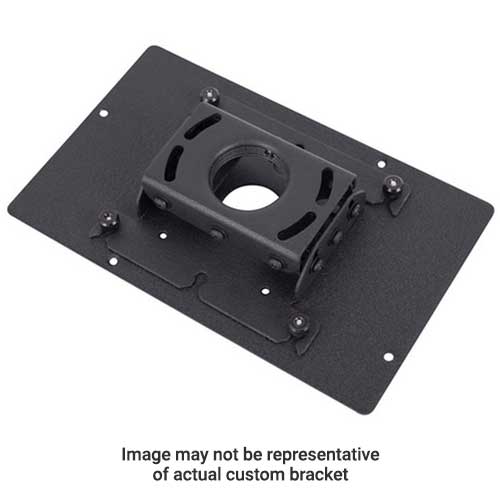

Custom RPA Projector Mount (Black)-RPA357
Custom black projector mount with independent roll-pitch-yaw adjustability and a 50 lbs (22.7 kg) weight capacity
The Chief RPA357 is a custom RPA Projector Mount in a black finish, engineered to provide precise registration for specific projector models. This ceiling-mounted solution features independent roll, pitch, and yaw adjustability, allowing installers to achieve exact alignment during the setup process. Designed for rapid maintenance, the mount includes a quick connect/disconnect feature that facilitates easy access to projector lamps and filters without losing preset adjustments. Once the projector is registered, the mount maintains its position even when the device is disconnected. Security is prioritized through All-Points Security exclusive steel-into-steel locking hardware at all critical connection points to help protect against theft. Installation is highly versatile, offering multiple mounting configurations: a flush mount directly to the ceiling, an installation using 0.25" threaded rods, or an installation utilizing a 1.5" NPT threaded extension column. This unit includes integrated cable management to keep installations clean without needing separate accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Product Weight | 5 lbs (2.3 kg) |
| Shipping Dimensions | 13.25" x 13.25" x 3.5"(336.6 x 336.6 x 88.9 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168784 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Security Cable Kit
PMSC$48.00
Wire Suspension Locks (10pack)
CMA290$128.80
Truss Clamp
CMS380$138.40
CMA372, Offset Unistrut Adapter
CMA372$66.40
Offset Unistrut Adapter - CMA372
CMA372$66.40
Unistrut Adapter
CMA370$23.20
Internal Joist Mount
CMA385$135.20
Architectural Spanning Adapter
CMA366$150.40
Truss Ceiling Adapter
CMA365$66.40
Truss Ceiling Adapter - CMA365
CMA365$66.40
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Verified fitment
Questions about this part
Will this RPA357 mount fit my projector?
This is a custom mount. It is verified to fit 23 models from 1 manufacturer, including the EPSON EH-TW7300, EH-TW7400, EH-TW8300, and EH-TW8300W. Please verify your specific model in the compatibility tab.
What are the installation requirements for the RPA357?
The RPA357 can be installed as a flush mount to the ceiling, with 0.25" threaded rods, or via a 1.5" NPT threaded extension column. It is designed for ceiling applications.
How much weight can this projector mount support?
The RPA357 has a maximum weight capacity of 50 lbs (22.7 kg).
Does the RPA357 include cable management?
Yes, this mount features built-in cable management, so you do not need to purchase additional accessories to manage your cabling.
What documents are available for submittals and installation?
Technical drawings and installation manuals are available for the RPA series. You can also access the RPA CAD Drawing (dwg) and the RPA Catalog Page for detailed planning.
