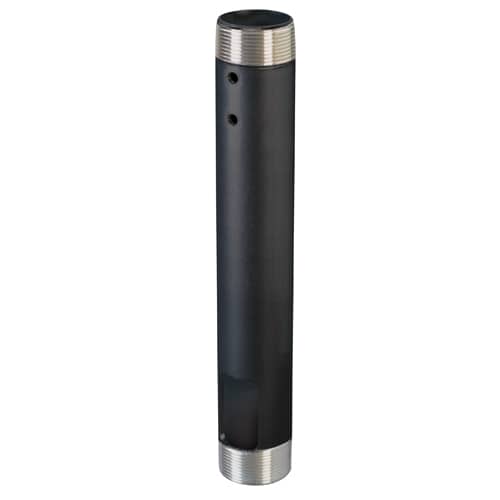

CMS012, 12 Inch Fixed Extension Column, Pole
12 inch fixed aluminum extension column with 1.5" NPT threaded ends for lowering projectors to specific heights
The Chief CMS012 is a 12 inch (30.5 cm) fixed extension column designed to lower projectors to a precise, desired height. This aluminum column is engineered for maximum strength and is TAA compliant and UL Listed. It features 1.5" NPT threaded ends on both sides, allowing for a secure connection to existing hardware. This component should be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessory. For installers requiring specific height adjustments, this 12 in (30.5 cm) component provides a rigid, permanent solution for pole-mounted projector installations. The black finish matches standard professional AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 12 in (30.5 cm) |
| Height | 12 in (30.5 cm) |
| Overall Dimensions | 12.0" x 1.9" x 1.9" (305 x 48 x 48 mm) |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092669 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Dual Electric Outlet Coupler
CMA504$106.40
Single Electric Outlet Coupler
CMA502$80.80

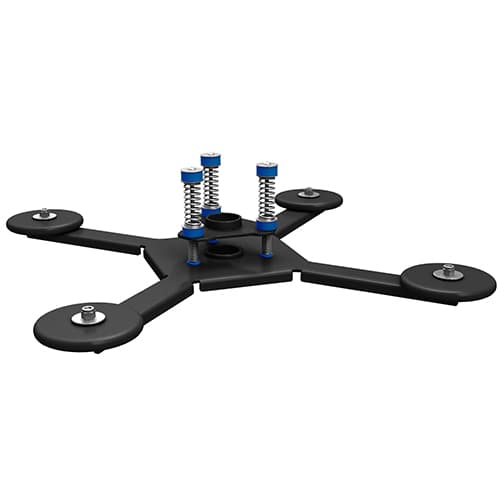

Large Venue Vibration Isolating Coupler, Black
CMA348$588.00
CMA347, Vibration Isolating Coupler
CMA347$416.00
Heavy Duty Swivel Adapter
CMA351$164.00
Large Venue Vibration Isolating Coupler, White
CMA348W$588.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMA152, Threaded Pipe Coupler
CMA152$45.60
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
CMA270 Threaded Pipe Coupler
CMA270$31.20

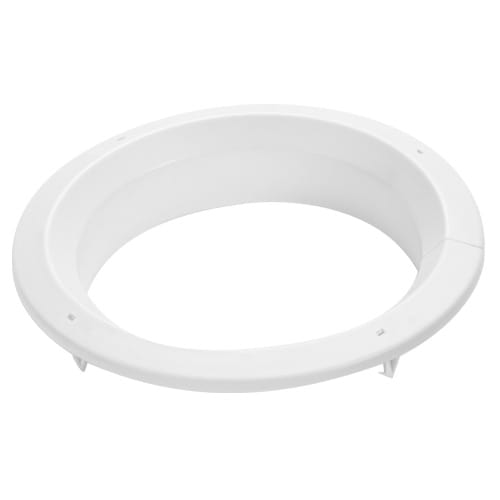

Decorative Ceiling Tile Ring - CPA640W
CPA640W$17.60

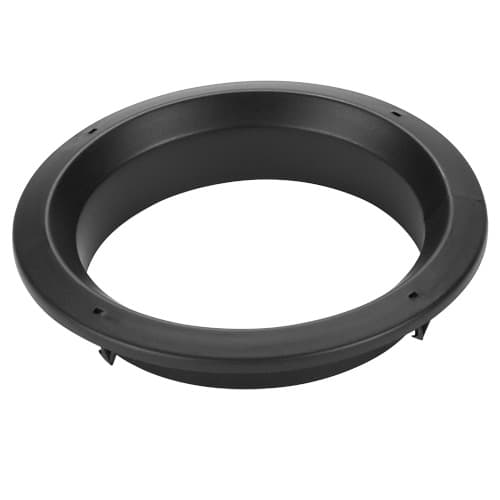

Decorative Ceiling Tile Ring - CPA640
CPA640$17.60
Questions about this part
Will the CMS012 work with my existing ceiling plate?
Yes, this column can be used with any Chief 1.5" NPT ceiling plate or other compatible accessories.
What is the weight capacity of this extension column?
The CMS012 has a maximum weight capacity of 500 lbs (226.8 kg).
How do I connect this column to other components?
The column features 1.5" NPT threading on both ends for simplified, secure connections.
Is the CMS012 TAA compliant?
Yes, this product is TAA compliant and is UL Listed.
What is the difference between the CMS012 and other columns in this series?
The CMS012 is a 12 inch fixed-length version; other models in the series offer different lengths such as 3, 6, 18, 24, 36, 48, or 60 inches.
