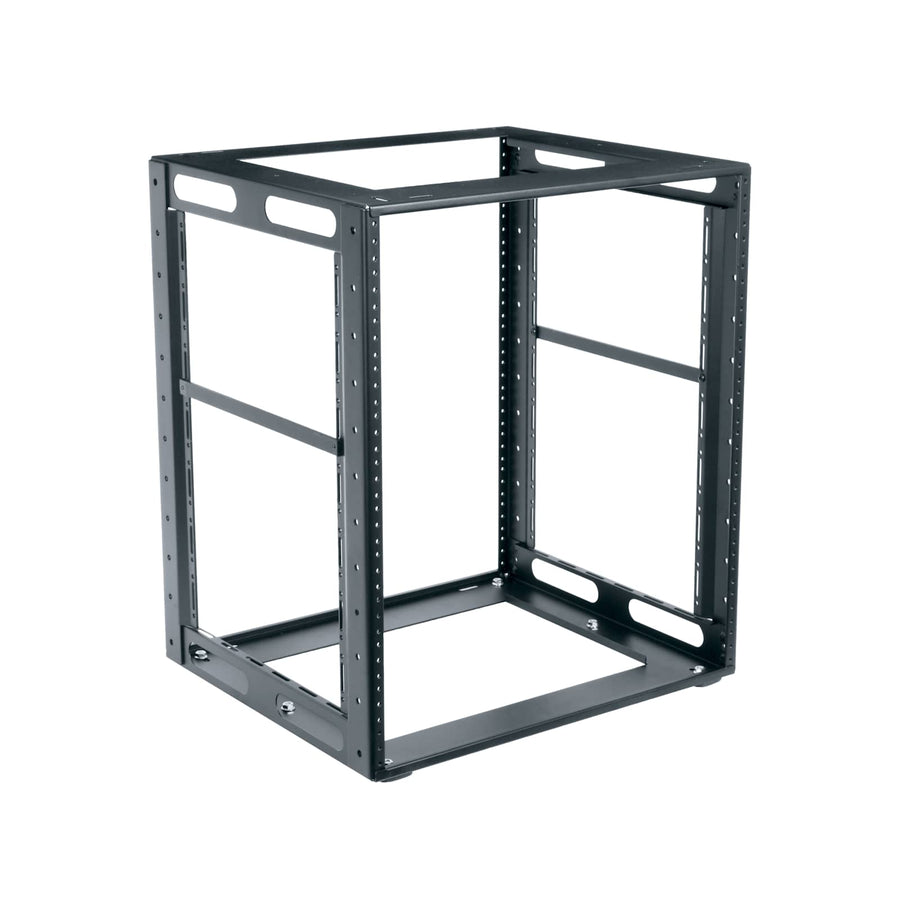

CFR Cabinet Frame Rack CFR-15-23
15 RU in-cabinet frame rack with 23" depth and 250 lbs UL load capacity
The Middle Atlantic CFR-15-23 is a 15 RU in-cabinet frame rack designed to maximize usable rackspace within entertainment systems, cabinets, and similar confined spaces. This low-profile series is built from heavy-duty, welded steel, providing a rigid structure that allows installers to pre-load equipment before transporting it to the final installation site. With a usable depth of 23 in (58.4 cm) and a total height of 27.19 in (69.1 cm), this rack provides a stable foundation for high-density hardware. For cable management, the unit includes two front-to-rear lacing bars and uprights that feature dedicated offset cable tie areas. This rack is TAA compliant and UL listed, ensuring it meets necessary standards for professional system integration. The black flat powder coat finish provides a professional aesthetic for any integrated environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23 in (58.4 cm) |
| Height | 27.19 in (69.1 cm) |
| Product Weight | 21.2 lbs (9.6 kg) |
| Rack Units | 15 RU |
| Shipping Weight | 26.7 lbs (12.1 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 23 in (58.4 cm) |
| Usable Height | 26.25 in (66.7 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747268458 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
23 Inch Deep Runner Kit for RS Series Racks
5-RS23$66.60
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Hinged Horizontal Cable Manager
HHCM-1$84.60
2 RU Horizontal Cable Manager with Front/Rear D-Rings
HCM-2DR$84.60
2 RU D-Ring Horizontal Cable Manager
HCM-2D$66.60
Questions about this part
Will this rack fit in my existing equipment cabinet?
The CFR-15-23 is an in-cabinet frame rack with a width of 19.25 in (48.9 cm), making it suitable for mounting inside larger enclosures or custom entertainment cabinetry.
What is the maximum weight this frame can support?
This rack has a UL Load Capacity of 250 lbs (113.4 kg).
What cable management accessories are compatible with this rack?
You can use various management options such as the HCM-1DR Horizontal Cable Manager with Front/Rear D-Rings or the VSA-1626 Adjustable Rackshelf for additional component support.
How much clearance is available for equipment depth?
The unit provides a usable depth of 23 in (58.4 cm) within its 23 in (58.4 cm) total depth footprint.
Is this rack suitable for government contracts?
Yes, the CFR-15-23 is TAA Compliant and manufactured in the USA.
