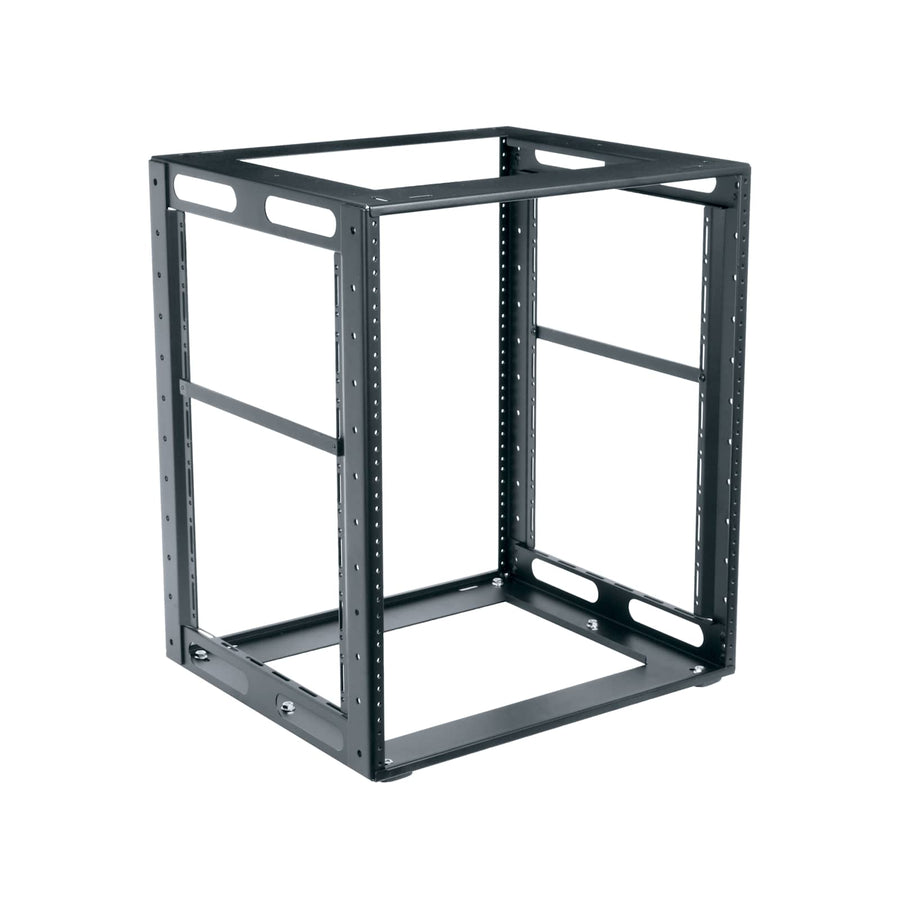

CFR Cabinet Frame Rack CFR-15-16
15 RU in-cabinet frame rack with 16" usable depth and 250 lbs UL load capacity
The CFR-15-16 is a 15 RU in-cabinet frame rack designed to maximize usable space within entertainment systems and tight cabinet environments. Built from welded steel with a flat powder coat finish in black, this low-profile rack is engineered for durability during transportation and pre-loading of equipment at the installation site. It features a 16 in (40.6 cm) depth and a width of 19.25 in (48.9 cm), providing a 26.25 in (66.7 cm) usable height. To assist with organized cabling, the frame includes two front-to-rear lacing bars and uprights that feature offset cable tie areas. This TAA compliant and UL listed rack carries a 250 lbs (113.4 kg) load capacity. For integrated power solutions, it is compatible with accessories like the PD-815SC-20 slim high density vertical power strip or the PDX-920R rackmount power system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 27.19 in (69.1 cm) |
| Product Weight | 21.2 lbs (9.6 kg) |
| Rack Units | 15 RU |
| Shipping Weight | 26.7 lbs (12.1 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 16 in (40.6 cm) |
| Usable Height | 26.25 in (66.7 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747268434 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
2 RU Hinged Horizontal Cable Manager
HHCM-2$94.50
Horizontal Cable Manager 1 RU Front/Rear D-Ring
HCM-1DR$80.10
1 RU Hinged Horizontal Cable Manager
HHCM-1$84.60
1 RU D-Ring Horizontal Cable Manager
HCM-1D$64.80
2 RU Horizontal Cable Manager with Front/Rear D-Rings
HCM-2DR$84.60
Questions about this part
What is the maximum weight capacity for the CFR-15-16?
The CFR-15-16 has a UL listed load capacity of 250 lbs (113.4 kg).
Can I use this rack for cable management?
Yes, this rack includes two front-to-rear lacing bars and uprights with offset cable tie areas to assist with dressing cables.
Is this rack TAA compliant for government projects?
Yes, the CFR-15-16 is TAA compliant and is manufactured in the USA.
What is the usable depth and height of this 15 RU frame?
The rack provides a 16 in (40.6 cm) usable depth and a 26.25 in (66.7 cm) usable height.
What accessories are compatible with this frame rack?
Compatible items include the VSA-1626 adjustable rackshelf, PHCM-1-4 plastic cable managers, and various PD Slim vertical power strips.
