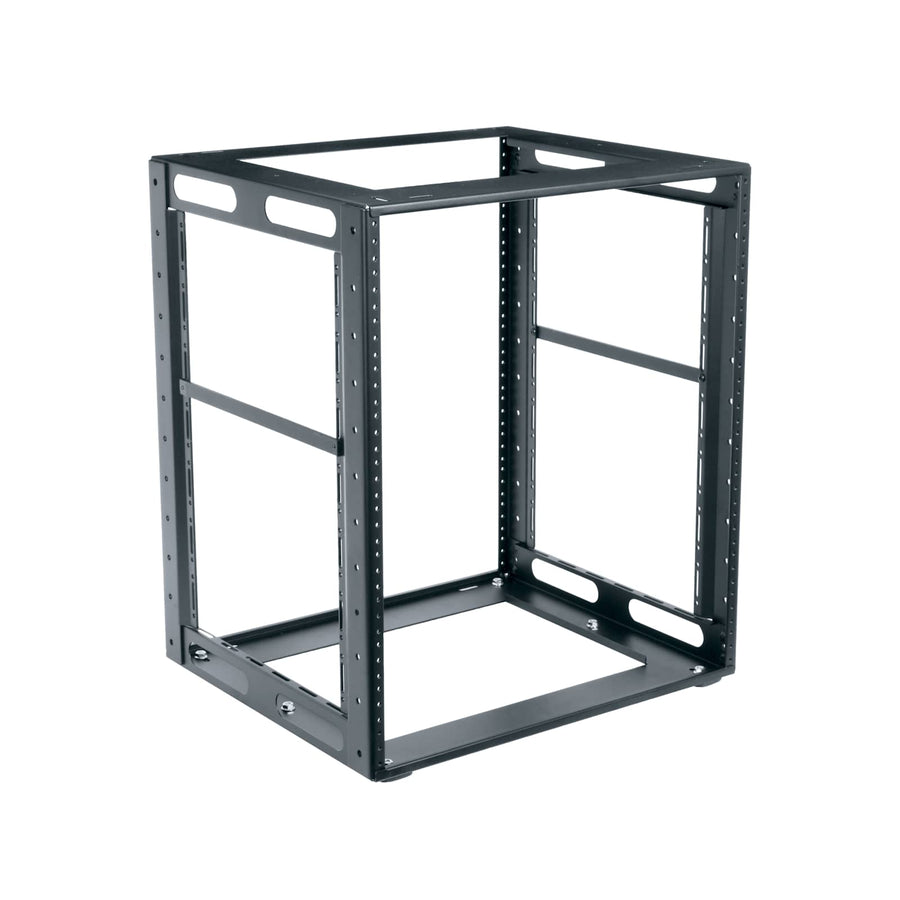

CFR Cabinet Frame Rack CFR-13-18
13 RU in-cabinet frame rack with an 18 in depth, 250 lbs UL load capacity, and welded steel construction
The Middle Atlantic CFR-13-18 is a 13 RU in-cabinet frame rack designed to maximize usable rackspace within entertainment systems and similar cabinet spaces. Built with a strong, welded steel frame, this low-profile rack is engineered to support pre-loading of equipment and remains stable during transportation to the installation site. This specific model features an 18 in (45.7 cm) depth and a usable height of 22.75 in (57.8 cm). For organized cable management, the frame includes two front-to-rear lacing bars and uprights featuring offset cable tie areas. This TAA compliant rack is constructed from steel with a flat powder coat finish in black. It is rated with a UL load capacity of 250 lbs (113.4 kg) and is an ideal solution for integrating professional AV components into tight residential or commercial cabinet environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18 in (45.7 cm) |
| Height | 23.69 in (60.2 cm) |
| Product Weight | 20.2 lbs (9.2 kg) |
| Rack Units | 13 RU |
| Shipping Weight | 25.7 lbs (11.7 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 18 in (45.7 cm) |
| Usable Height | 22.75 in (57.8 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747112713 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Hinged Horizontal Cable Manager
HHCM-1$84.60
2 RU Horizontal Cable Manager with Front/Rear D-Rings
HCM-2DR$84.60
2 RU D-Ring Horizontal Cable Manager
HCM-2D$66.60
Horizontal Cable Manager 1 RU Front/Rear D-Ring
HCM-1DR$80.10
1 RU D-Ring Horizontal Cable Manager
HCM-1D$64.80
Questions about this part
What is the total height and depth of the CFR-13-18?
The CFR-13-18 has a height of 23.69 in (60.2 cm) and an 18 in (45.7 cm) depth.
Can I mount this rack inside a cabinet?
Yes, this is an in-cabinet rack type designed to maximize space in entertainment systems and similar enclosures.
What accessories are compatible with this rack?
Compatible accessories include items such as the VSA-1626 16-to-26 inch adjustable rackshelf, the UTR1 1 RU mounting rackshelf, and various PD Slim or NEXSYS power strips.
Is this rack TAA compliant and UL listed?
The CFR-13-18 is both TAA compliant and UL listed.
How much weight can this 13 RU rack support?
This rack has a UL load capacity of 250 lbs (113.4 kg).
