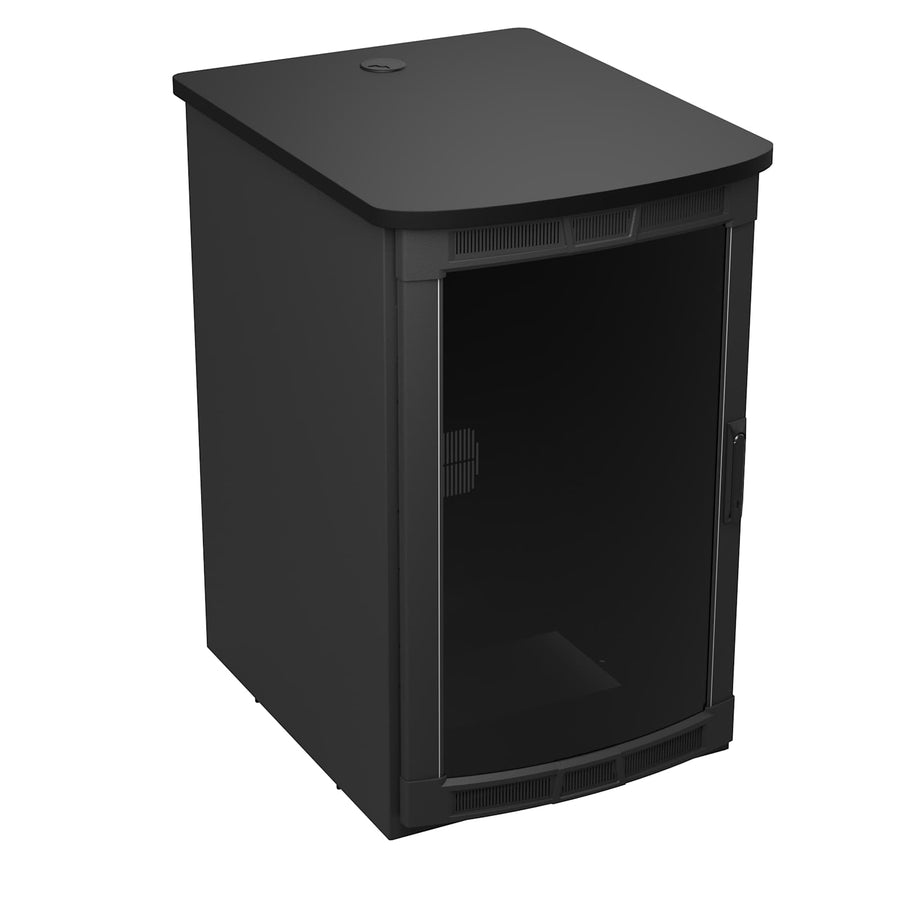

BGR-25SA32MDK-A5 Rolling Presentation Rack with Black Top
Mobile 25 RU rolling rack featuring a black high-pressure laminate top for monitor mounting and Forward Rackrail compatibility
The BGR-25SA32MDK-A5 is a mobile AV enclosure that integrates furniture-grade elegance with heavy-duty steel construction. This 25 RU rack features a black high-pressure laminate (HPL) top designed to accommodate video monitors, making it a versatile centerpiece for presentation spaces. The unit is built for professional environments, featuring a skirted wheelbase with leveling feet for stability and 25mm x 150mm swing handles. For cable management and security, it includes a curved plexi front door and a rear door designed for easy cable entry. This model is Forward Compatible, utilizing the innovative Forward Rackrail system. This rail design provides side lacing for flexible internal cabling and allows the integration of Forward vertical cable management products, Forward blank panels, and Forward vent panels. With a 23” width, the chassis provides additional side space for front-to-back cable management or mounting small devices on Lever Lock™ accessories, maximizing the usable 43.75 in (111.1 cm) of internal height and 29.4 in (74.7 cm) of usable depth. This TAA compliant, UL Listed steel rack supports a UL load capacity of 1100 lbs (499 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36.35 in (92.3 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 204 lbs (92.5 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 229 lbs (103.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402715 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
Forward Hook & Loop Tie Saddles - 15 Pieces
FWD-TSW-15$53.10
19 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR19$152.10
Forward C Style Ring Cable Management
FWD-C-RING$18.00
Forward 2 Inch Offset L Style Lace Bar - 4 Pack
FWD-LB-2A-4PK$118.80
Forward Straight L Style Lace Bar - 4 Pack
FWD-LB-1A-4PK$80.10
1 RU Forward Tool-Less Blank Panel
FWD-EB1$22.50
1 RU Forward DIN Rail Panel
FWD-DIN1H$53.10

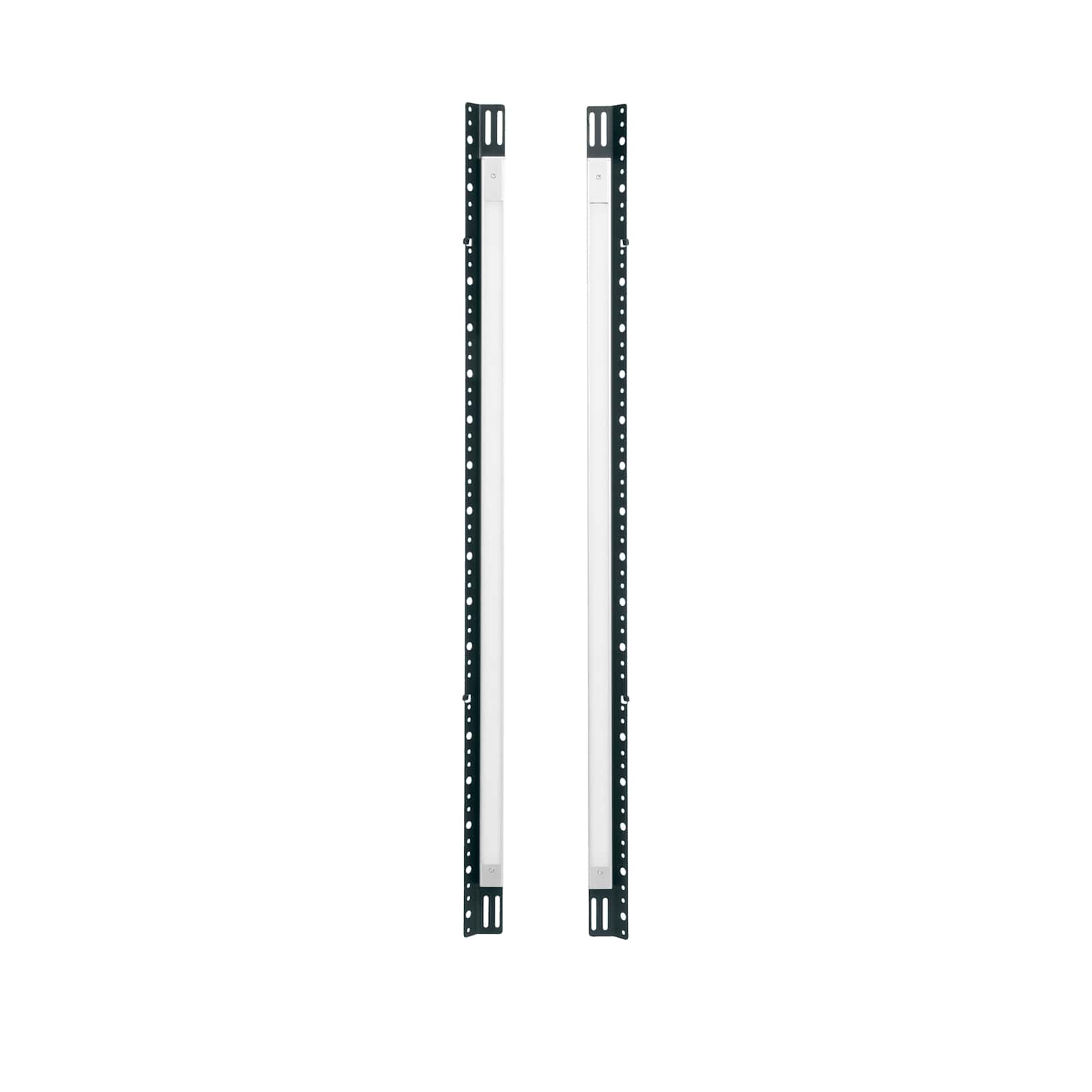

16 RU to 21 RU Forward Full Height Utility Light, White with Dimmer & IR Sensor - 1 Pair
FWD-LT-UTL-16-21-D$363.60
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Will the BGR-25SA32MDK-A5 fit my display monitors?
Yes, the black high-pressure laminate top is specifically designed to accommodate video monitors for presentation use.
What is the weight capacity of this rolling rack?
The rack has a UL Load Capacity of 1100 lbs (499 kg) and a product weight of 204 lbs (92.5 kg).
What accessories are needed for the Forward Rackrail system?
You can utilize Forward vertical cable management, Forward blank panels, Forward vent panels, or Forward Hook & Loop Tie Saddles (FWD-TSW-15).
Does this rack include power distribution options?
Compatible power options include the PDT Low Profile Vertical Power Strip, 16 Outlet, 15A (PDT-1615C-NS) or various MPR modules.
How much usable space is inside the BGR-25SA32MDK-A5?
The unit provides 29.4 in (74.7 cm) of usable depth and a usable height of 43.75 in (111.1 cm) within the 25 RU frame.
