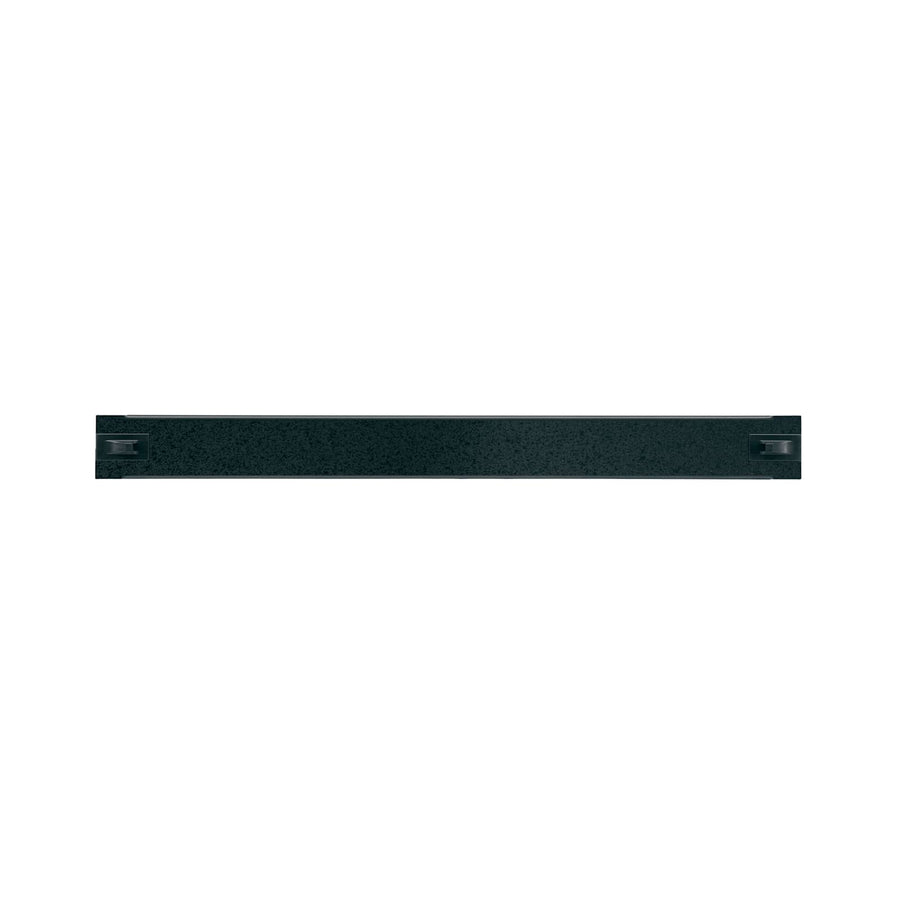

1 RU Forward DIN Rail Panel
1 RU Forward DIN Rail Panel for rapid, hardware-free installation in BGR Series enclosures and Forward rackrails
The FWD-DIN1H is a 1 RU Forward DIN Rail Panel designed to accelerate the installation of DIN-style devices within a rack system. This panel utilizes a hardware-free design, allowing installers to simply click the panel into place rather than using traditional rack screws. By utilizing spring-loaded ergonomic clips, the panel secures into the Forward rackrail, making the process up to 5x faster than standard methods. This 19 in (48.3 cm) wide panel is constructed from durable flanged steel with a black powder coat finish. It is specifically engineered for use in all BGR Series enclosures and is compatible with the Forward rackrail system. The design allows for a single, centralized location for DIN connections on the rackrail, facilitating cleaner and more efficient cable management for system integrators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.75 in (4.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 0.9 lbs (0.4 kg) |
| Rack Units | 1 RU |
| Shipping Weight | 0.5 lbs (0.2 kg) |
| Width | 3.67 in (9.3 cm) |
| Color | Black |
| Special Features | ForwardInstallation Time Savers |
| UPC | 656747384615 |
| Patent Number | PENDING |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
How does the FWD-DIN1H install in a rack?
The FWD-DIN1H uses spring-loaded ergonomic clips to click directly into the Forward rackrail, eliminating the need for traditional rack screws.
Which enclosures is the FWD-DIN1H compatible with?
This 1 RU panel is compatible with all BGR Series enclosures and requires the Forward rackrail system for installation.
What is the main benefit of using this DIN rail panel?
Installation is up to 5x faster than traditional methods because the hardware-free design allows you to install and remove panels without any mounting hardware.
What material is used for the FWD-DIN1H panel?
The panel is made from durable flanged steel and features a black powder coat finish.
Which document should I use for technical submittals?
Installers can refer to the Forward Panels A&E Specification Sheet or the CAD Technical Specification Drawings available in the resources section.
