AXS Series Rack AX-SXR-30
30 RU in-wall slide-out rotating rack for flush-mounted AV equipment with 450 lbs capacity

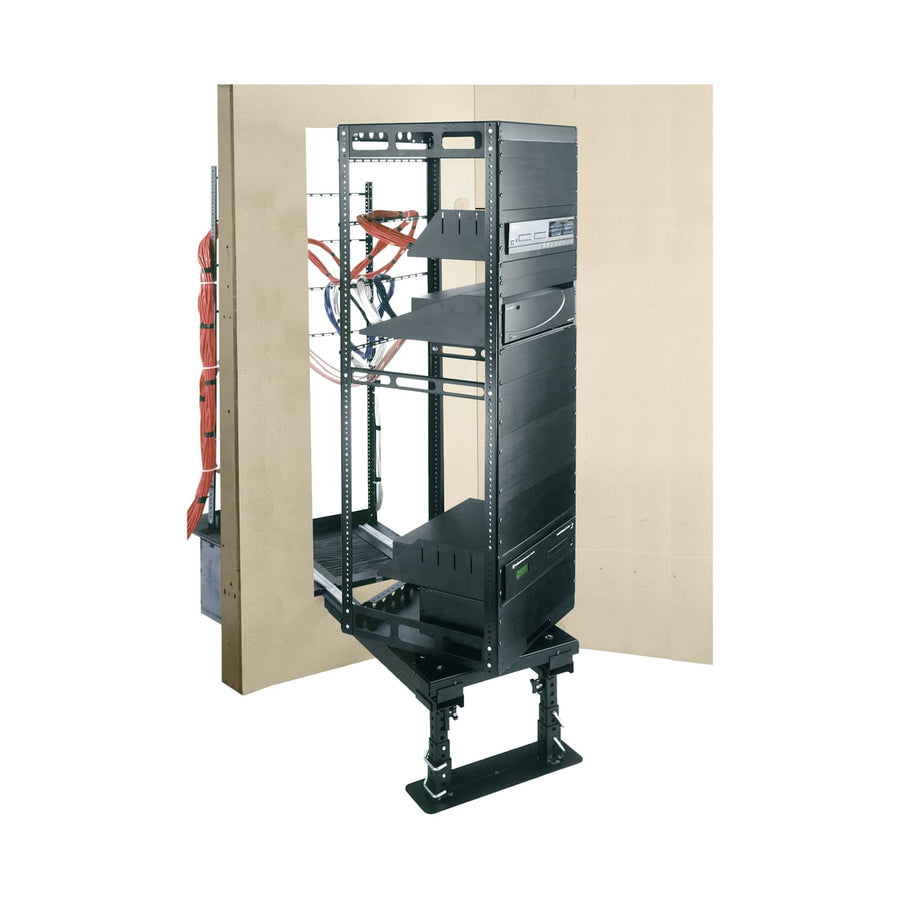

The AX-SXR-30 is a 30 RU in-wall slide-out rotating rack designed for high-density audio and video installations. This series is unique because it not only pulls out from a flush wall or cabinet installation like the standard AXS series but also rotates once extended. This rotation provides technicians with significantly better access to equipment in cramped or shallow mounting spaces. The AX-SXR-30 features a 20 in (50.8 cm) usable depth and a 57.19 in (145.3 cm) total height, supporting a weight capacity of 450 lbs (204.1 kg). The frame is built with a unique interlocking corner joint for enhanced structural strength and includes a built-in cable management system. For efficient onsite installation, the removable frame can be integrated off-site, and service tracks feature a built-in level to save time during setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 57.19 in (145.3 cm) |
| Rack Units | 30 RU |
| Shipping Weight | 105 lbs (47.6 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 52.5 in (133.4 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
All other specifications 5
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056192 |
| Certifications | TAA |
