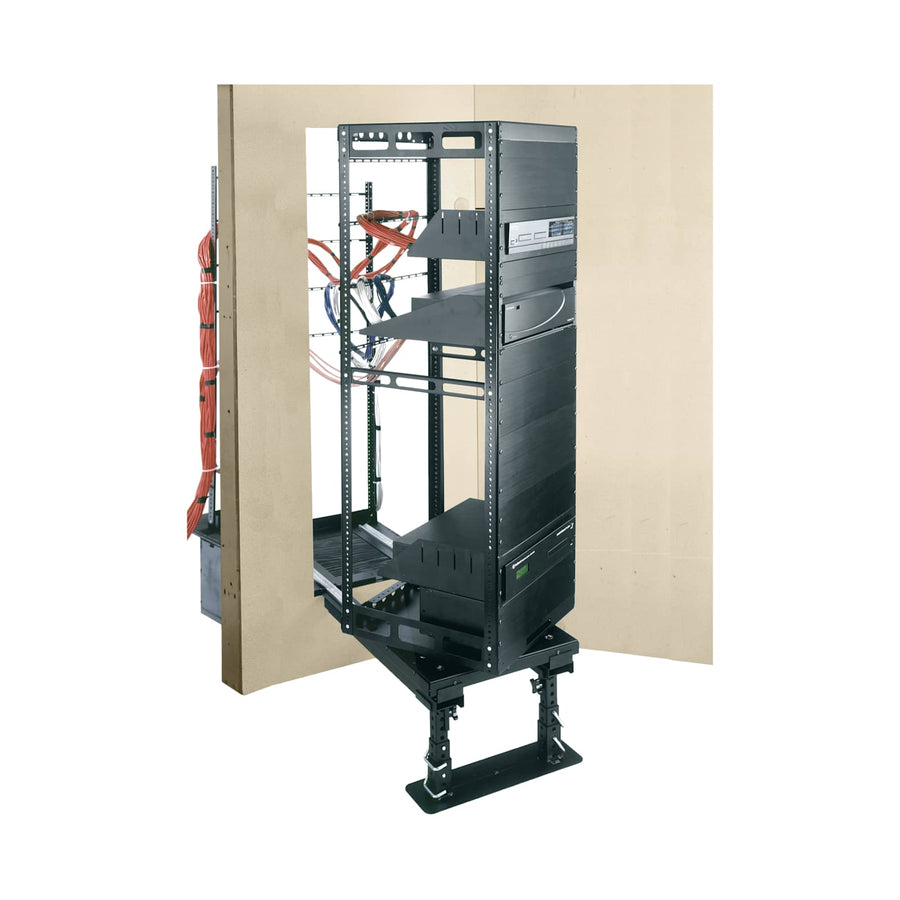

AXS Series Rack AX-SXR-20
20 RU in-wall slide out rotating rack for flush AV installations, featuring a 450 lbs weight capacity
The AX-SXR-20 is an in-wall slide out rotating rack designed for flush-mounted audio and video installations. While it shares design DNA with the standard AXS Series, this AX-SXR variant includes a rotating mechanism that allows the rack to turn once pulled out. This feature provides significantly greater access to equipment in cramped or confined spaces, making it ideal for large-scale system integration. This 20 RU rack features a 39.69 in (100.8 cm) height and a 20 in (50.8 cm) usable depth. It is built with a unique interlocking corner joint for exceptional strength and easy assembly. The frame includes standard fixed front and rear 10-32 threaded rackrails with numbered spaces and an integrated cable management system. For installation, the service tracks include a built-in level to assist with alignment. This unit is TAA compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 39.69 in (100.8 cm) |
| Rack Units | 20 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747056093 |
| Certifications | TAA |
Resources
You'll need these with it
Anodized Trim Kit
TA$99.00
101mm DC Fan Kit with (1) Fan, 69CFM for the European Union
FAN-69-K-EU$130.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
AXS Service Stand 16-40 Inches High
TS1640$678.60
Powder Coated Trim Kit
TS$40.50
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
3 RU Rack Vent Panel, Perforated with 25% Open Area
VTF3$40.50
Questions about this part
How does the AX-SXR-20 differ from the standard AXS series?
The AX-SXR-20 includes a rotating function that allows the rack to turn once it is pulled out, whereas the standard AXS series does not rotate.
What is required to complete the installation of this rack?

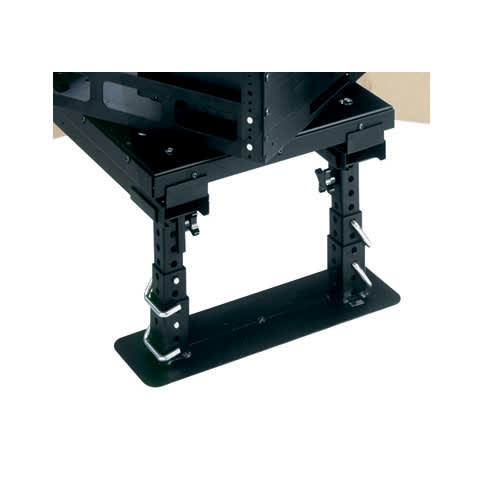

Service tracks and stands, such as the TS1640 AXS Service Stand, are sold separately and are required for installation.
Will this rack work for a heavy equipment installation?
Yes, the AX-SXR-20 is rated for a weight capacity of 450 lbs (204.1 kg).
Is this rack TAA compliant for government contracts?
Yes, the AX-SXR-20 is TAA compliant and is made in the USA.
What type of rack rails are used in the AX-SXR-20?
It uses standard fixed front and rear 10-32 threaded rackrails with numbered spaces.
