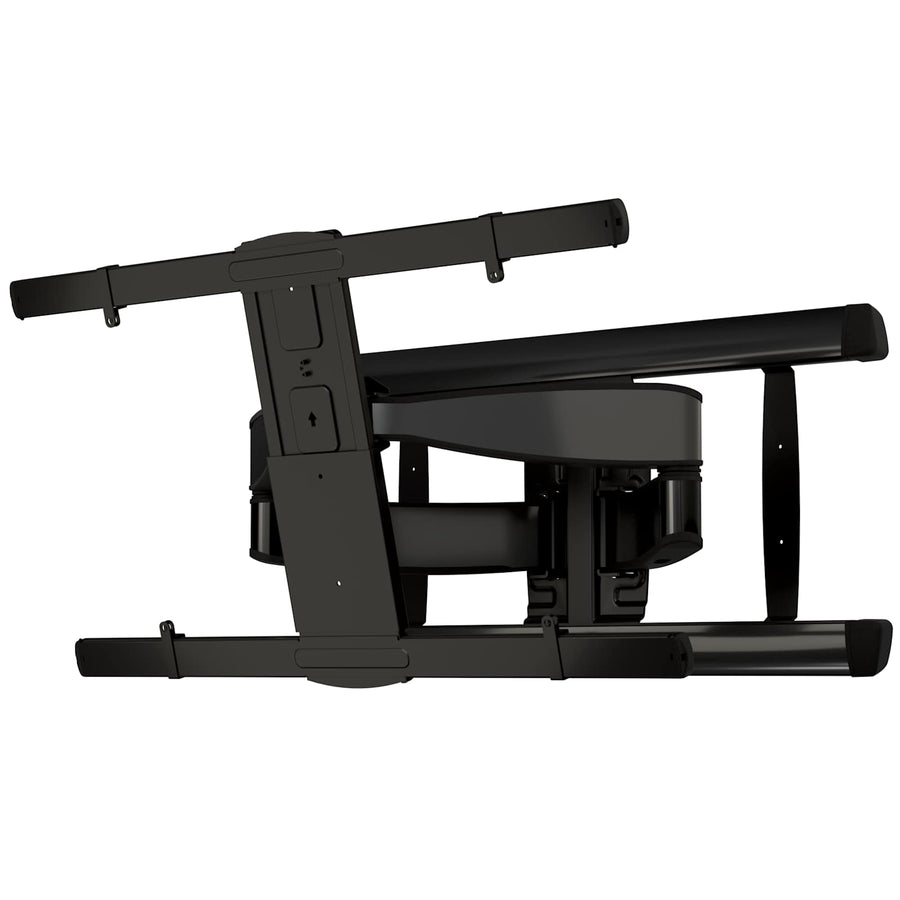

Advanced Full-Motion Premium TV Mount for 65" to 100" TVs
Full-motion premium mount for 65" to 100" displays, 175 lbs capacity, featuring fluid-motion tilt, swivel, and roll adjustments
The Sanus VXF830-B2 is a premium full-motion TV mount engineered to support large-format displays ranging from 65" to 100" (1651mm - 2540mm). Constructed with a solid steel frame and a black brushed metal exterior, this wall-mounted solution provides a secure holding capacity of 175 lbs (79.4 kg). It utilizes FluidMotion™ technology and Virtual Axis™ Fingertip Tilt to facilitate effortless adjustments, including a tilt range of +5° to -15°, a swivel range of +55° to -55°, and a roll adjustment of +2° to -2°. This mount maintains a low-profile depth of 2.61 in (6.6 cm) from the wall when positioned, ensuring a streamlined appearance in residential or commercial environments. For installers seeking stability, Steady Set™ functionality prevents unwanted movement or drifting once the display is positioned. This UL Listed mount is verified against 501 display models from 34 manufacturers, including several Samsung, LG, Sony, and Hisense models.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.61 in (6.6 cm) |
| Height | 20.64 in (52.4 cm) |
| Package Depth | 24.28 in (61.7 cm) |
| Package Height | 4.45 in (11.3 cm) |
| Package Width | 37.51 in (95.3 cm) |
| Product Weight | 66.1 lbs (30 kg) |
| Typical Screen Size | 65" - 100" (1651mm - 2540mm) |
| Weight Capacity | 175 lbs (79.4 kg) |
All other specifications 10
| Width | 37.51 in (95.3 cm) |
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench1/4" Drill Bit5/16" Drill Bit7/16" Socket WrenchElectric DrillLevelPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
| Roll | +2° / -2° |
| Swivel | +55° / -55° |
| Tilt | +5° / -15° |
| UPC | 793795540102 |
| VESA Mounting Pattern | 200 x 200mm300 x 200mm300 x 300mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 400mm500 x 500mm600 x 500mm600 x 600mm700 x 600mm800 x 600mm900 x 600mm |
| Certifications | UL Listed |
Verified fitment
Questions about this part
Will the VXF830-B2 fit my specific TV model?
This mount is verified against 501 display models from 34 manufacturers. Examples of compatible models include the Samsung 98QN90FA, LG 100QNED85AU, Sony 55BZ30P, and Hisense 100DM66D.
What VESA patterns are compatible with this mount?
The VXF830-B2 supports multiple VESA mounting patterns, including 200x200mm, 400x400mm, 600x600mm, and up to 900x600mm.
What tools are required for the installation of the VXF830-B2?
An installer will need an electric drill, level, tape measure, stud finder, Phillips head screwdriver, a pencil, a wrench, a 1/2" socket wrench, a 7/16" socket wrench, a 1/4" drill bit, and a 5/16" drill bit.
How much weight can the VXF830-B2 safely hold?
The VXF830-B2 has a maximum weight capacity of 175 lbs (79.4 kg) for displays between 65" and 100".
Which technical documents are available for submittals?
You can access the VXF830 Technical Drawing (PDF) and the VXF830 Installation Drawing (PDF) for detailed engineering and setup information.
