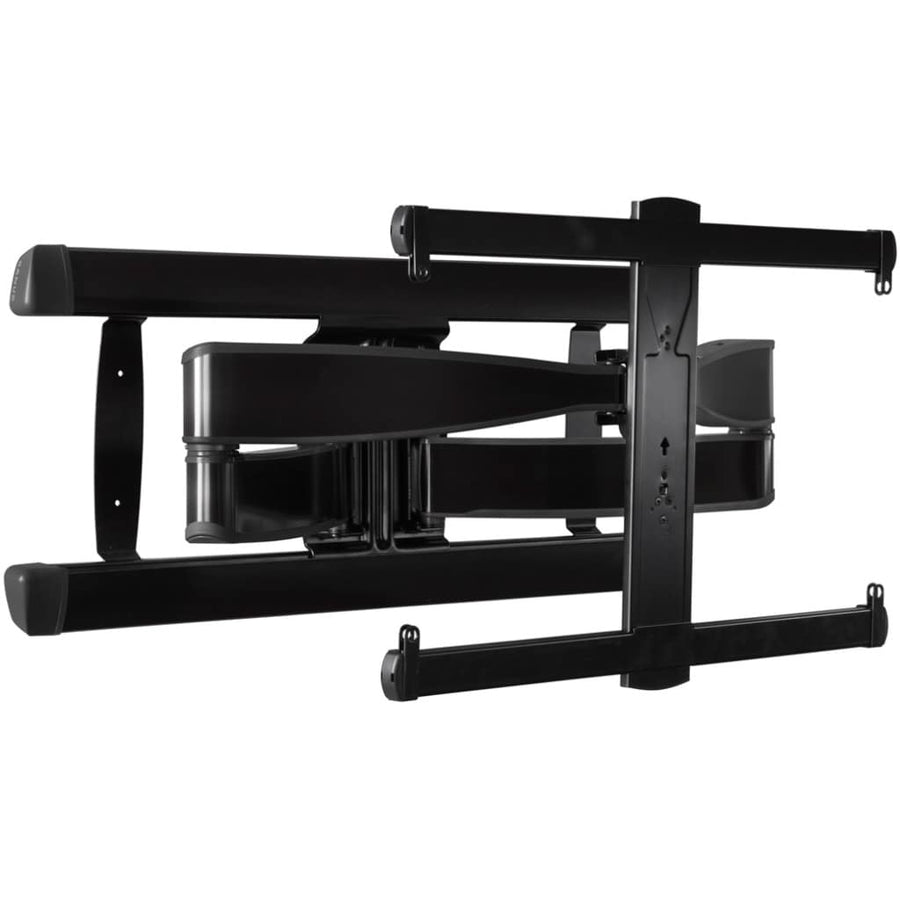

Advanced Full-Motion Premium TV Mount for 42" to 90" TVs
Full-motion TV mount for 42" to 90" displays, 125 lbs capacity, with tilt, swivel, and integrated cable management
The Sanus VDLF28-B1 is an Advanced Full-Motion Premium TV Mount designed for a wide range of large-format displays. This wall-mounted solution supports televisions from 42" to 90" and manages weight capacities up to 125 lbs (56.7 kg). It utilizes FluidMotion™ technology to ensure smooth movement when adjusting the viewing angle via +5° to -15° of tilt and a +57° to -57° swivel range. When not in use, the Steady Set™ functionality allows you to lock the display in a specific position to prevent drifting or unwanted movement. The mount features a brushed black metal exterior and includes integrated cable management to conceal power and HDMI cords. For installation, this unit requires a 1/4" and 5/16" drill bit, a 1/2" and 7/16" socket wrench, an electric drill, a Phillips head screwdriver, a stud finder, and a tape measure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.15-28.00 (5.46cm - 71.12cm) |
| Height | 17.68 in (44.9 cm) |
| Typical Screen Size | 42" - 90" (107cm - 228cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 33.8 in (85.9 cm) |
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench1/4" Drill Bit5/16" Drill Bit7/16" Socket WrenchElectric DrillPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
All other specifications 6
| Swivel | +57° / -57° |
| Tilt | +5° / -15° |
| Universal Mounting | Yes |
| UPC | 793795537775 |
| VESA Mounting Pattern | 200 x 200mm200 x 300mm200 x 400mm300 x 200mm300 x 300mm300 x 400mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 300mm500 x 400mm |
| Certifications | UL Listed |
Resources
Verified fitment
Questions about this part
Will the Sanus VDLF28-B1 fit my TV?
This mount is verified against 1,922 display models from 48 manufacturers. Examples of compatible models include the Samsung 85Q75OG, Sony 55BZ30P, and LG 43NANO75UQA.
What is the VESA pattern for this mount?
The VDLF28-B1 supports several VESA mounting patterns, including 200 x 200mm, 300 x 300mm, 400 x 400mm, and up to 500 x 400mm.
How much can the mount extend from the wall?
The mount provides an adjustable depth range of 2.15" to 28.00" (5.46cm - 71.12cm) from the wall.
What tools are required for installation?
To install this mount, you will need a drill, a stud finder, a tape measure, a Phillips head screwdriver, a wrench, a 1/2" socket wrench, a 7/16" socket wrench, a 1/4" drill bit, and a 5/16" drill bit.
Does this mount include the necessary hardware for mounting?
Yes, this mount includes all necessary hardware to complete the installation.
