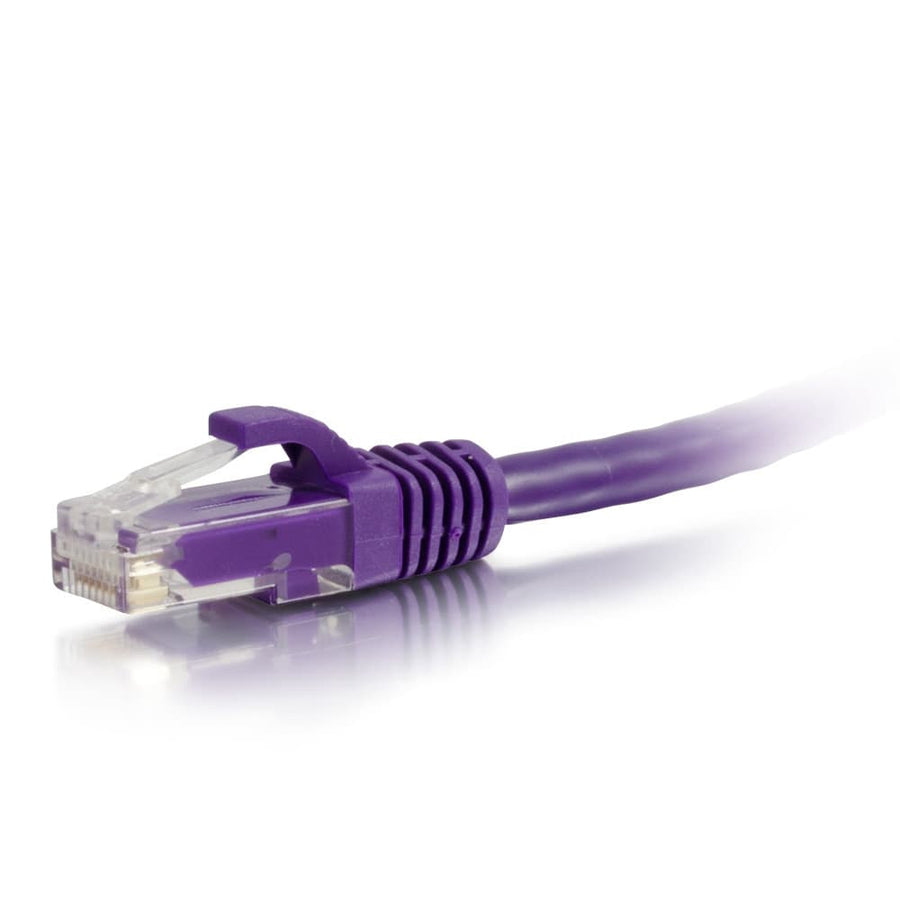

9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
9ft (2.7m) Cat6a Snagless UTP patch cable, 26AWG stranded copper, purple finish
The C2G CG50825 is a 9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in purple, specifically engineered for high-density environments. This cable facilitates 10 Gigabit data transmission over 4-pair copper, supporting connections up to 100 meters for 10GBase-T ports and equipment. It is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Constructed with 26AWG (7/0.16) bare stranded copper conductors and HDPE insulation, this cable features a PVC jacket and connector hood. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, which provides improved alien crosstalk performance compared to legacy Cat6 systems. The snagless, booted RJ-45 male connectors include a PVC hood, making this SKU ideal for dense switch applications where cable strain relief is critical. This product is part of the Cat6a Patch Cable Series and is identified by the 568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.25 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508250 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum distance for 10 Gigabit transmission with this cable?
This Cat6a patch cable enables 10 Gigabit data transmission for connections up to 100 meters.
Is the CG50825 suitable for high-density switch environments?
Yes, the snagless, booted connector design is specifically intended to protect the connection in high-density switch applications.
Which standards is this patch cable tested against?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What wiring scheme does this cable use?
The CG50825 utilizes the 568B wiring scheme for its connections.
What accessories are compatible with this Cat6a cable?
You can use this cable with various components like the WP246A 24-Port Rack Mount Patch Panel or the WP346AIV Cat6a Quick Connect Keystone Insert.
