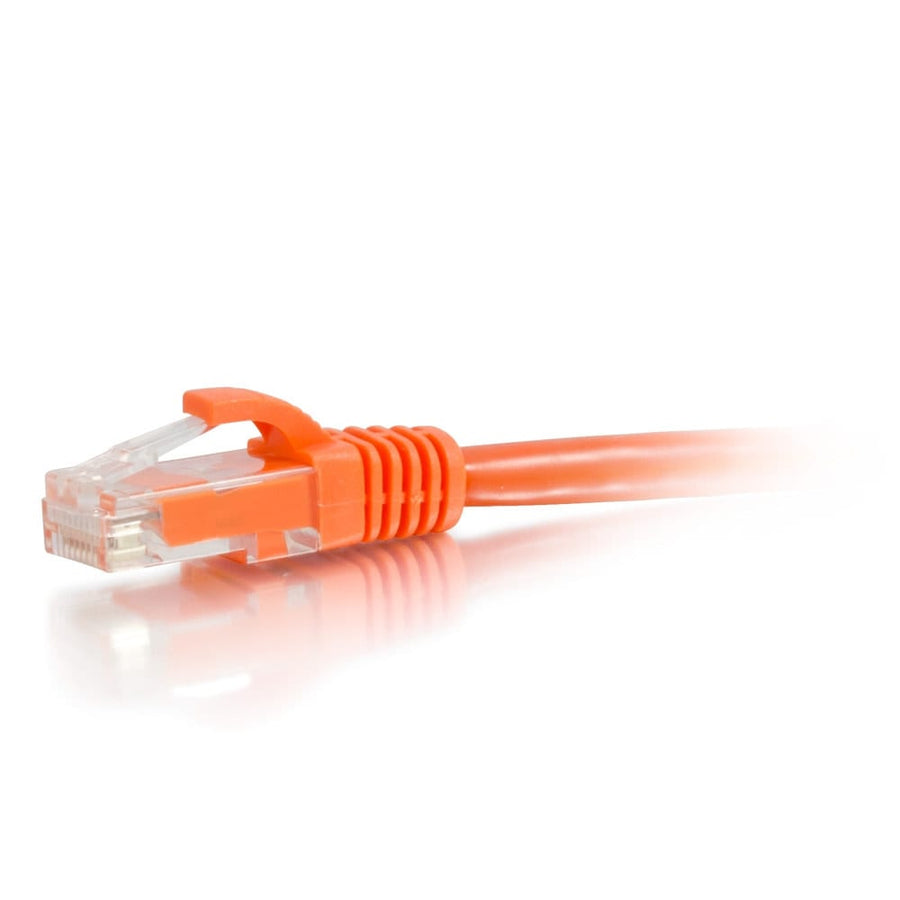

9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
9 ft (2.7 m) Orange Cat6a Snagless Unshielded UTP Ethernet Patch Cable for 10 Gigabit data transmission
The CG50844 is a 9 ft (2.7 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in orange, designed specifically to support 10GBase-T equipment and ports. This cable enables 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters, making it an essential component for high-speed networking environments. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, and patch panels. This patch cable features a 26AWG stranded bare copper conductor with HDPE insulation and a PVC jacket. The snagless hood design is engineered for high-density switch applications, protecting the connector during installation and servicing. With its orange color, this cable allows for easy color-coding within complex network installations. Each cable includes an individual length label to facilitate quick identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.25 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508441 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG50844 is designed for 10GBase-T equipment and supports 10 Gigabit data transmission for connections up to 100 meters.
What is the wiring scheme for the CG50844?
This patch cable uses the 568B wiring scheme and is fully tested to ANSI/TIA 568 C.2 Cat6a channel requirements.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood design on the RJ-45 male connectors is specifically intended to aid installation in high-density switch applications.
What accessories are compatible with Cat6a keystone inserts?
This cable can be used in conjunction with Cat6a Quick Connect RJ45 Keystone Inserts in Orange (WP346AOR) or other compatible inserts like WP346ABK (Black).
What is the temperature rating for this orange patch cable?
The CG50844 patch cable has a temperature rating of 75°C.
