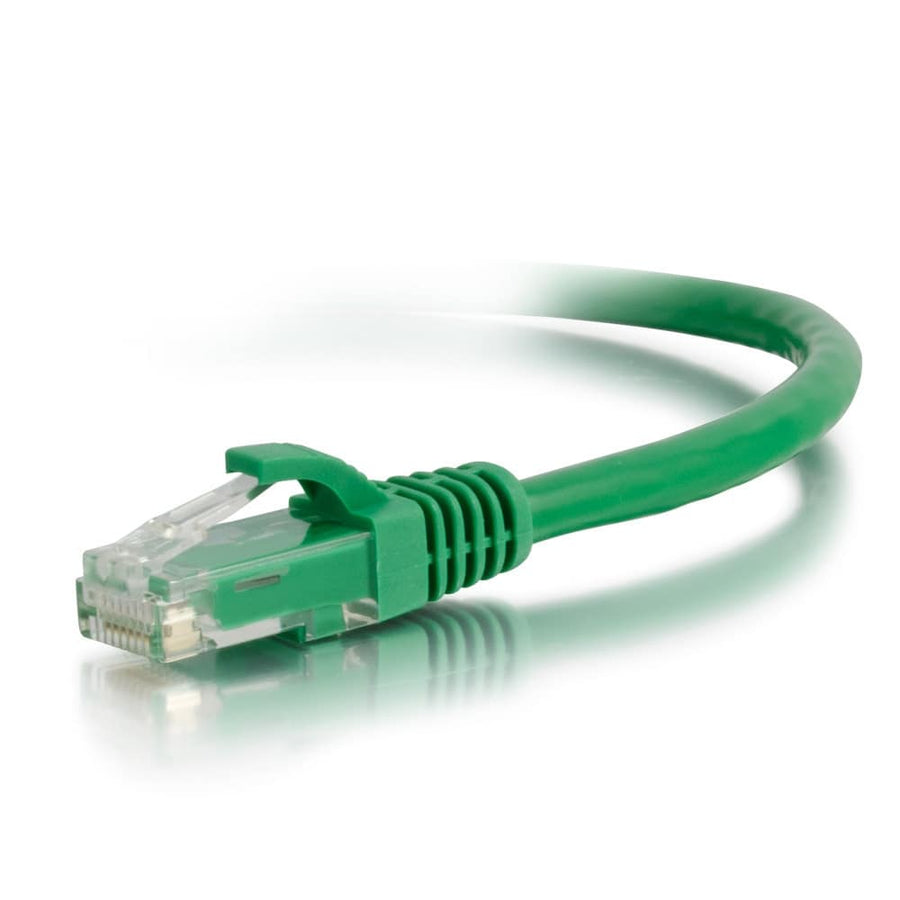

9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
9ft Cat6a Unshielded UTP Ethernet patch cable in Green, featuring snagless boots for high-density switch applications
The C2G CG50787 is a 9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet network patch cable designed for high-performance data transmission. This cable supports 10GBase-T equipment, including network adapters, hubs, switches, routers, and patch panels, enabling 10 Gigabit data transmission over 4-pair copper cabling for connections up to 100 meters. The cable is constructed with 26AWG bare copper stranded conductors and features HDPE (High-density Polyethylene) insulation within a PVC jacket. To facilitate easy identification in complex network environments, each cable is color-coded Green and includes an individual length label. The snagless, booted connector design is specifically intended for use in high-density switch applications where space is limited. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements and is designed to provide improved alien crosstalk performance compared to standard Cat6 cabling systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.25 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507871 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG50787 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 100 meters.
What is the difference between this and a standard Cat6 cable?
Unlike standard Cat6, this Cat6a patch cable is engineered to provide improved alien crosstalk performance for high-speed data.
What accessories are compatible with this Cat6a series?
This cable is compatible with various Cat6a components, including the WP246A 24-Port Rack Mount Patch Panel and the WP346AGN Green Keystone Insert.
What tools are needed for installation?
Standard installation tools for RJ-45 connections may be required; refer to the C2G Ethernet Patch Cable Matrix for detailed technical data.
Does this cable include a warranty?
Yes, this C2G patch cable is backed by a Lifetime warranty.
