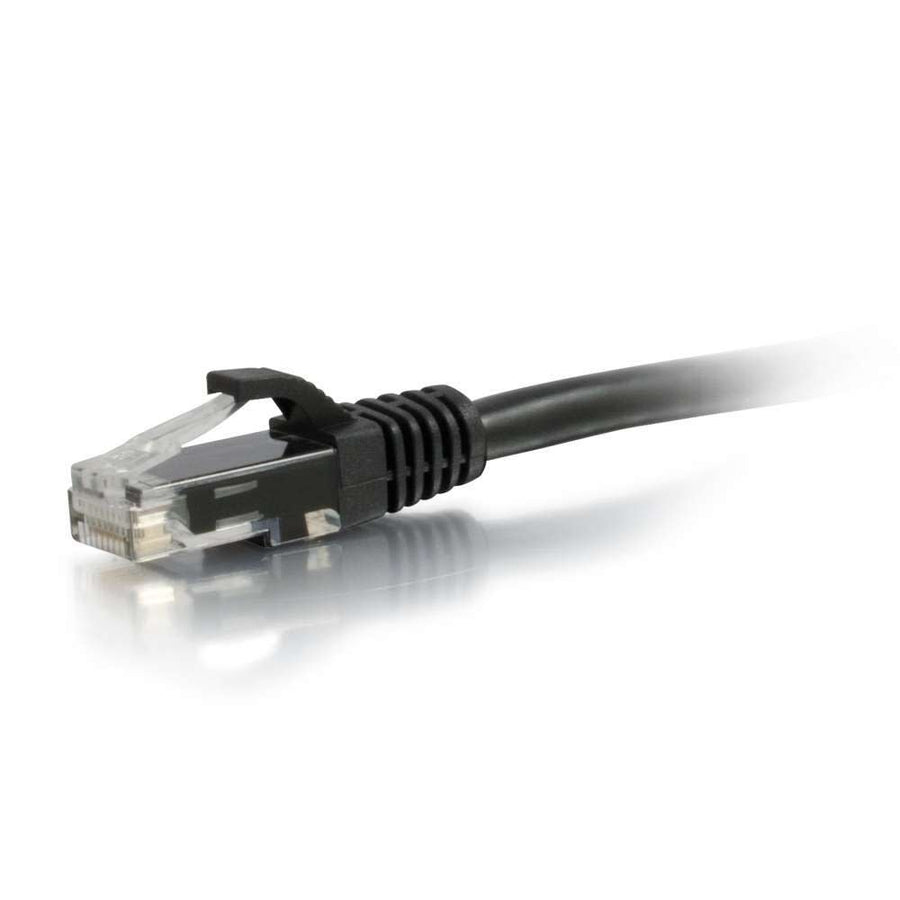

9ft (2.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
9ft (2.7m) black Cat6a snagless UTP patch cable for 10GBase-T networking and high-density switch applications
The CG00731 is a 9 ft (2.7 m) Cat6a snagless Unshielded UTP Ethernet network patch cable designed for 10GBase-T ports and high-speed network equipment. This cable facilitates 10 Gigabit data transmission over a 4-pair copper conductor, supporting connections up to 100 meters. It is specifically engineered to improve alien crosstalk performance compared to standard Cat6 cabling systems. The construction features 26AWG bare copper stranded conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for hubs, switches, routers, and patch panels. The integrated snagless hood is designed to protect the connector in high-density switch environments, while individual length labels are included on every cable for efficient installation and management. This black patch cable is rated for temperatures up to 75°C and follows a 568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.26 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007319 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this CG00731 cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4-pair copper up to 100 meters.
Is this cable suitable for high-density switch environments?
Yes, the snagless hood on the RJ-45 male connectors is designed to protect the connection in high-density switch applications.
What is the wiring scheme for the CG00731?
This patch cable utilizes a 568B wiring scheme for all connections.
What other accessories are compatible with this Cat6a cable?
Compatible items include Cat6a Quick Connect RJ45 Keystone Inserts (such as the WP346ABK) and the 24-Port Rack Mount Patch Panel (WP246A).
Does this cable meet industry standards for Cat6a?
Yes, every cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
