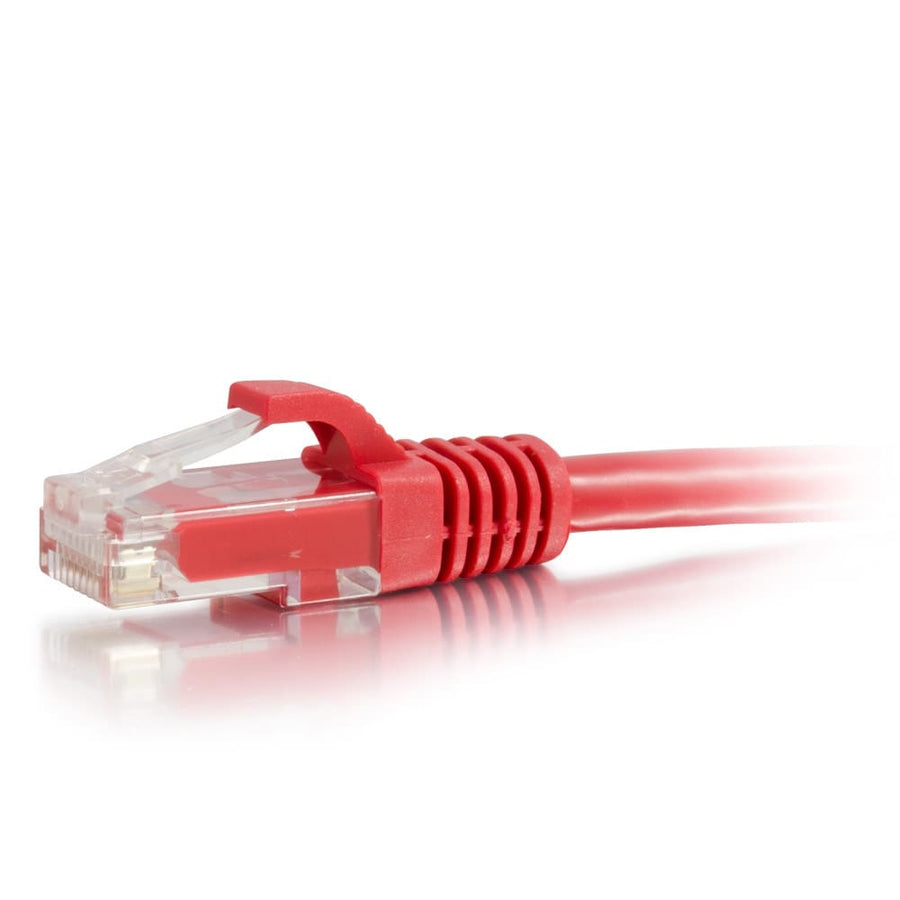

8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Red
8ft Red Cat6a Unshielded UTP Ethernet patch cable with snagless boots for 10 Gigabit data transmission
The CG50805 is an 8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in red, designed to support 10GBase-T equipment. This cable enables 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, and patch panels. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. To prevent accidental disconnects in high-density environments, the RJ-45 male connectors are equipped with snagless PVC boots. This red cable is ideal for color-coded network management. It is constructed with stranded copper and follows the 568B wiring scheme, with a temperature rating of 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508052 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum distance for 10 Gigabit transmission with the CG50805?
This Cat6a patch cable supports 10 Gigabit data transmission over distances up to 100 meters.
Will this Cat6a cable work in a high-density switch?
Yes, the CG50805 features snagless boots and a 0.24 in (6 mm) cable diameter, making it ideal for high-density switch environments.
What standards is this patch cable tested against?
Every CG50805 cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
Is the CG50805 compatible with Cat6a keystone jacks?
Yes, it is compatible with various Cat6a components such as the WP246A 24-Port Rack Mount Patch Panel and WP346A series keystone inserts.
What is the wiring scheme used for this Cat6a cable?
The CG50805 is manufactured using the 568B wiring scheme.
