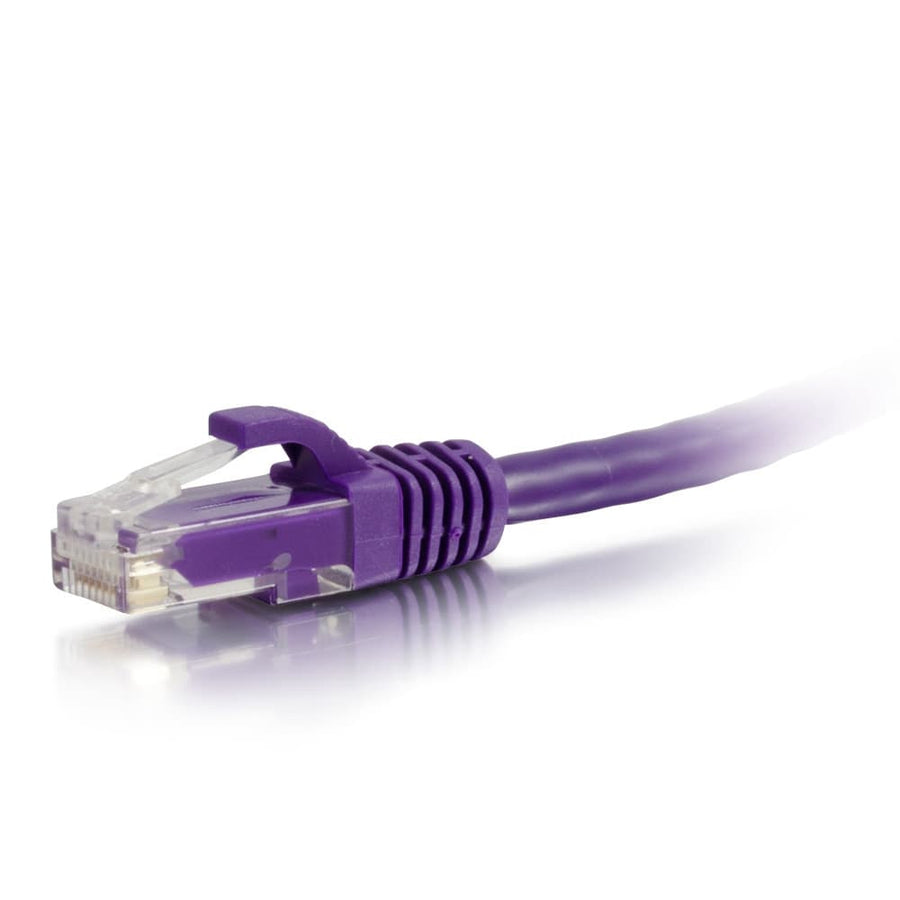

8ft (2.4m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
8ft (2.4m) Cat6a Unshielded UTP patch cable in purple with snagless boots and stranded copper conductors
The C2G CG50824 is a 8 ft (2.4 m) Cat6a Unshielded UTP Ethernet network patch cable designed to support 10GBase-T equipment. It enables high-speed 10 Gigabit data transmission over a 4 pair copper cable, facilitating connections up to 100 meters. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien cross talk performance compared to standard Cat6 cabling. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, the cable features a 0.24 in (6 mm) diameter. It is finished with a PVC jacket and PVC connector hoods. The snagless, booted RJ-45 male connectors are specifically designed for high-density switch applications to prevent accidental disconnects. The purple jacket allows for easy color-coding within complex network installations, and each cable features an individual length label for rapid identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508243 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Is the C2G CG50824 suitable for 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, supporting 10 Gigabit data transmission.
What is the maximum length this Cat6a cable can support?
This cable supports connections up to 100 meters when used in a 10 Gigabit data transmission environment.
Will this cable work in a high-density patch panel or switch?
The snagless boot design is specifically intended to improve ease of use and reliability in high-density switch applications.
What is the difference between this and a standard Cat6 cable?
While Cat6 can support 10 Gigabit over limited distances, this Cat6a cable is specifically constructed to provide improved alien cross talk performance.
Which accessories are compatible with this Cat6a cable?
This cable is compatible with various components including the WP246A 24-Port Rack Mount Patch Panel and several Cat6a Keystone Inserts like the WP346ABK Black version.
