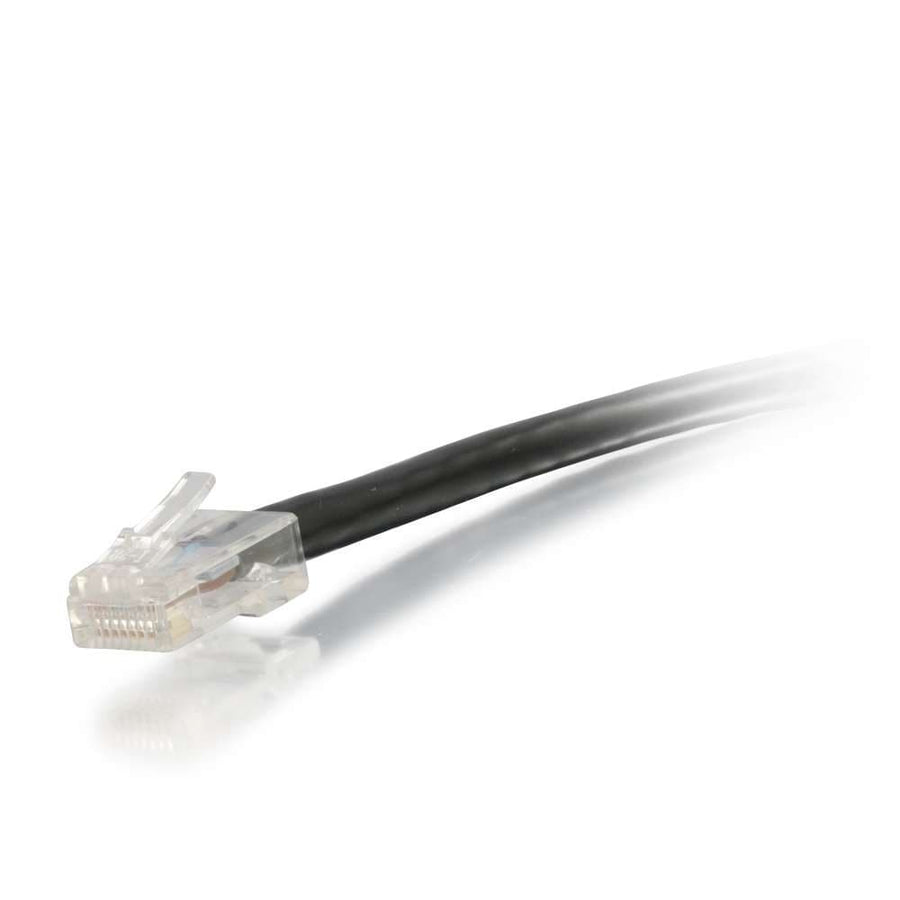

8ft (2.4m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
8ft (2.4m) Cat6 Unshielded UTP Ethernet patch cable, Black PVC jacket, T568B wiring
The C2G CG04113 is an 8ft (2.4m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications involving voice, data, or video distribution. This cable is constructed with stranded copper conductors and a PVC jacket, meeting all Cat6 TIA/EIA standards. Its design is engineered to reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) through bonded individual pairs that maintain twist-spacing up to the termination point. The cable features two RJ-45 male connectors and follows the T568B wiring scheme. With a cable diameter of 0.24 in (6 mm) and a temperature rating of 75°C, it is suitable for various indoor networking environments. This specific SKU is part of a larger series of non-booted Cat6 patch cables available in multiple lengths and colors to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041139 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring standard for the C2G CG04113?
The C2G CG04113 uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is the C2G CG04113 shielded or unshielded?
This is an Unshielded UTP (UTP) cable designed to minimize Near-End Crosstalk (NEXT) through bonded pair twisting.
What is the maximum operating temperature for this cable?
This Cat6 patch cable has a temperature rating of 75°C.
Can I use this cable for high-speed video distribution?
Yes, it is designed for Gigabit computer networks requiring bandwidth-intensive video, data, or voice applications and meets Cat6 TIA/EIA standards.
What are the physical dimensions of the C2G CG04113?
The cable has a diameter of 0.24 in (6 mm) and a total length of 8 ft (2.4 m).
