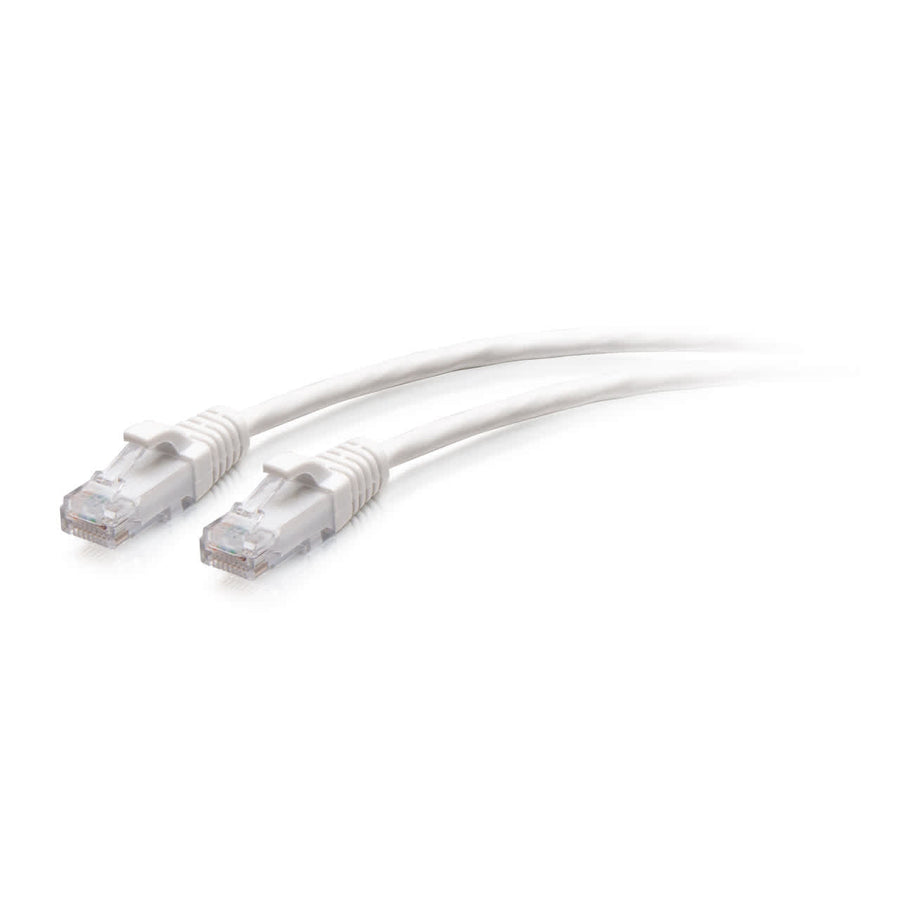

7ft (2.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - White
7ft Cat6a Slim UTP Patch Cable, 28AWG construction, snagless boots, and white finish
The C2G30184 is a 7ft (2.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in white, engineered specifically for high-density cabling environments. This cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (0.01 in) compared to standard Cat6 cables. This slim profile increases airflow in crowded server racks and provides the flexibility required for tight-space installations in datacenters or large conference rooms. Each end features an RJ-45 Male connector with gold-plated contacts and a molded, snagless PVC boot to protect against cable snags and provide strain relief. This Cat6a cable supports data transfer rates of up to 10 GBPS and is suitable for Power over Ethernet (PoE) and VoIP applications. The construction meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, ensuring reliable connectivity for HDBaseT and other high-bandwidth technologies.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301844 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum data transfer rate for the C2G30184?
The C2G30184 supports data transfer rates up to 10 GBPS, making it suitable for high-bandwidth applications like HDBaseT.
Is the C2G30184 suitable for PoE or VoIP applications?
Yes, the 28AWG Cat6a construction is designed to support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) requirements.
What is the cable diameter of this slim patch cable?
The cable features a slim 0.19 in (4.8 mm) diameter (± 0.15 mm), which helps increase airflow in dense network environments.
What do I need for a submittal regarding electrical performance?
This cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
Does this cable include snagless protection?
Yes, the C2G30184 features molded, snagless boots on the RJ-45 male connectors to provide extra strain relief and prevent snags.
