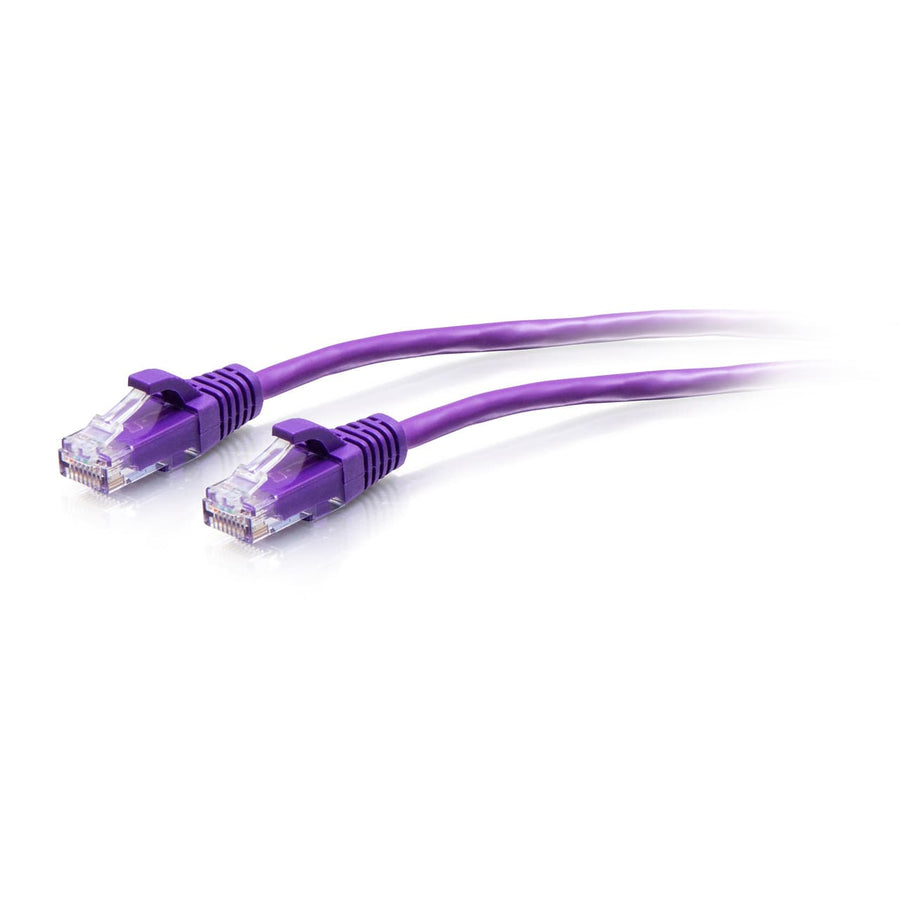

7ft (2.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Purple
7ft Cat6a slim UTP patch cable in purple, featuring 28AWG construction and snagless boots for high-density installations
The C2G30191 is a 7ft (2.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in purple. Designed for high-density cabling environments like data centers and large conference rooms, this cable utilizes 28AWG stranded copper conductors to significantly reduce the cable diameter to just 0.19 in (4.8 mm). This slim profile increases airflow in crowded enclosures and provides greater flexibility for tight space installations. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each RJ-45 male connector features a snagless, molded PVC boot to provide strain relief and prevent accidental snags during installation. This unshielded UTP cable is ideal for applications leveraging HDBaseT technology, VoIP, or Power over Ethernet (PoE) requirements. The purple jacket allows for easy color-coding within complex network infrastructures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301912 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum data rate for the C2G30191?
The C2G30191 supports data transfer rates up to 10 GBPS, making it suitable for high-speed networking and HDBaseT applications.
Will this cable work in high-density rack environments?
Yes, the 28AWG slim construction features a 0.19 in (4.8 mm) diameter that increases airflow and flexibility in tight spaces.
Is this cable suitable for PoE or VoIP applications?
Yes, the Cat6a technology in this cable is designed to support Power over Ethernet (PoE) and Voice over IP (VoIP) situations.
What type of connector does this patch cable use?
The C2G30191 features RJ-45 male connectors with gold-plated contacts and a snagless, booted design for added protection.
What other accessories are compatible with Cat6a systems?
This cable is part of a larger ecosystem that includes components like the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Quick Connect Keystone Inserts.
