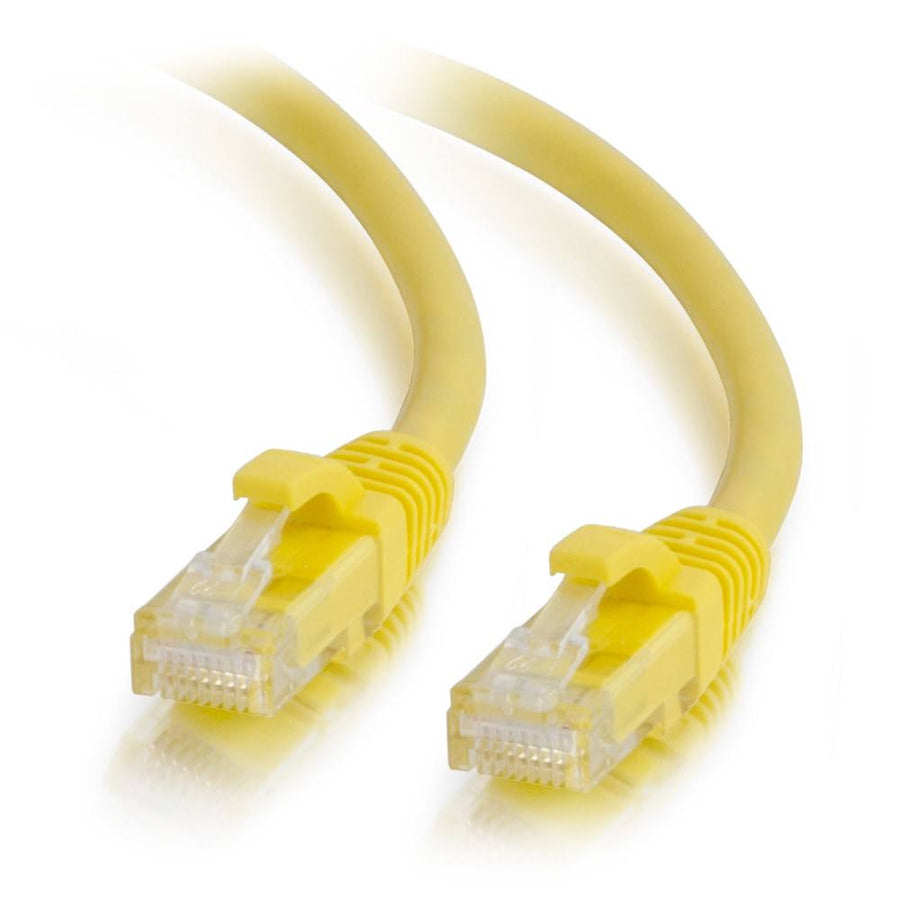

7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
7ft Cat6a snagless UTP patch cable in yellow, supporting 10GbE data transmission for high-density network environments
The C2G CG50747 is a 7 ft (2.1 m) Cat6a snagless UTP patch cable designed to support 10Gigabit Ethernet applications. It is suitable for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. This 4-pair copper cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, enabling 10 Gigabit data transmission for connections up to 100 meters. Constructed with a 26AWG bare copper conductor and HDPE (High-density Polyethylene) insulation, this cable features stranded UTP construction to improve alien crosstalk performance. The yellow PVC jacket and snagless, booted RJ-45 male connectors are specifically designed for high-density switch applications where ease of access is required. Each cable is individually labeled with its length for quick identification during installation and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507475 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
The CG50747 is designed for 10GBase-T ports and equipment, including switches, routers, hubs, and patch panels, supporting 10 Gigabit data transmission.
The CG50747 is designed for 10GBase-T ports and equipment, including switches, routers, hubs, and patch panels, supporting 10 Gigabit data transmission.
What is the maximum distance for 10 Gigabit transmission with this cable?
This Cat6a patch cable enables 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters.
Is this cable suitable for high-density rack environments?
Yes, the snagless hood design is specifically intended for use in high-density switch applications to prevent cable damage during handling.
What is the wiring scheme used for this patch cable?
The CG50747 uses the 568B wiring scheme and features 26AWG (7/0.16) bare copper conductors.
What documentation is available for submittals?
The C2G Ethernet Patch Cable Matrix (PDF) is available for reviewing technical category specifications.
