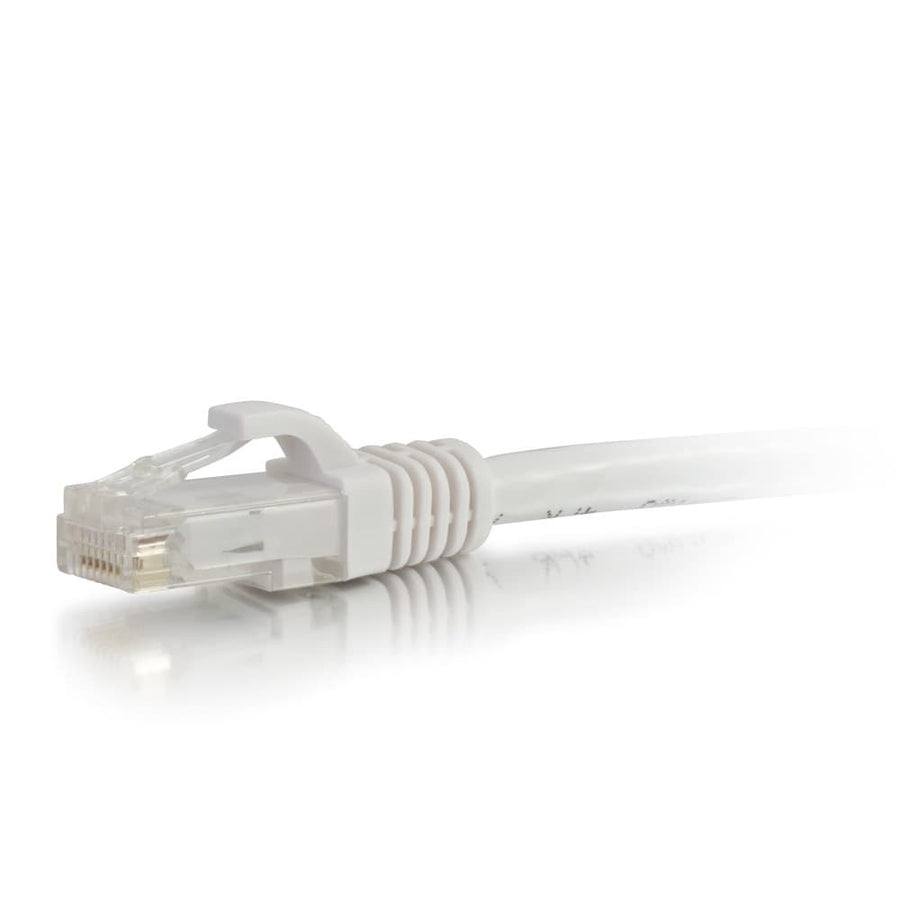

7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - White
7ft Cat6a white UTP snagless patch cable, ANSI/TIA 568 C.2 tested for 10 Gigabit performance
The CG50766 is a 7 ft (2.1 m) Cat6a snagless Unshielded UTP Ethernet patch cable designed for high-density network environments. This white patch cable supports 10GBase-T equipment, including switches, routers, hubs, and network adapters, facilitating 10 Gigabit data transmission over 4-pair copper cabling for distances up to 100 meters. It is constructed with 26AWG bare copper stranded conductors and HDPE insulation to ensure reliable performance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to older Cat6 cabling. The snagless PVC connector boots protect the RJ-45 male terminations, making these cables ideal for high-density switch applications where space is limited. For easy identification in complex installations, each cable features an individual length label. This series offers various colors and lengths to assist with network color-coding and management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507666 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
