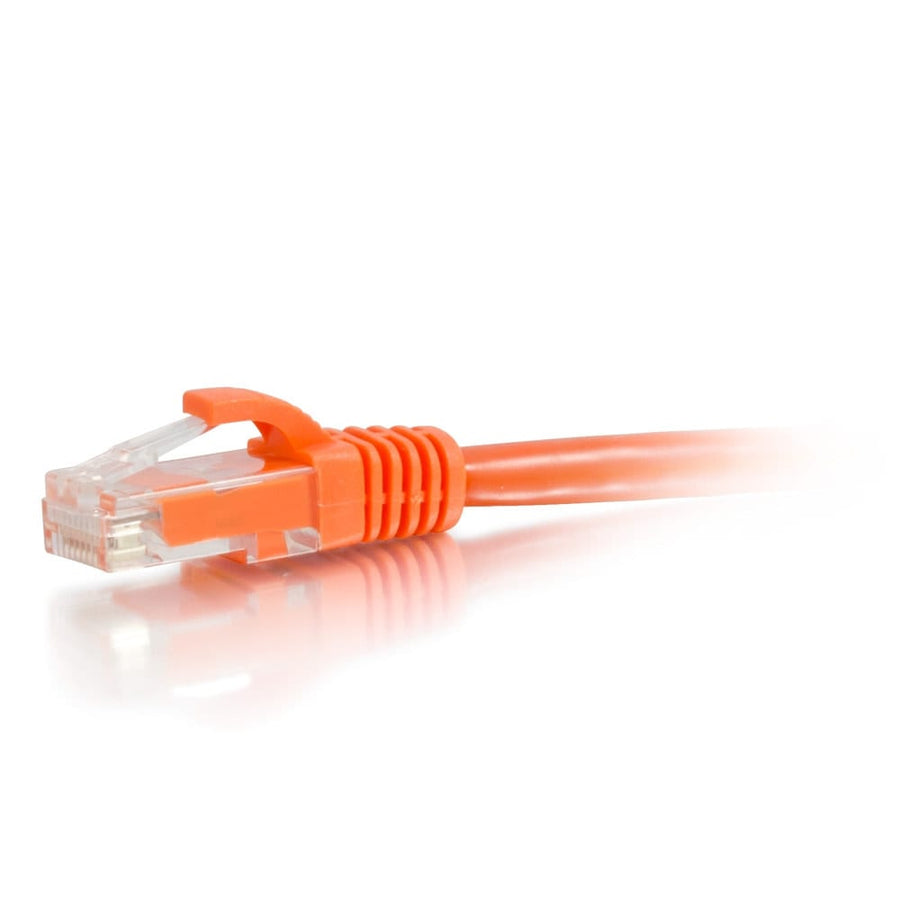

7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
Orange 7 ft (2.1 m) Cat6a snagless UTP patch cable for 10 Gigabit Ethernet applications
The C2G CG50842 is a 7 ft (2.1 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in orange, engineered to support 10GBase-T ports and equipment. This cable facilitates 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for high-speed networking. The construction utilizes 26AWG (7/0.16) bare stranded copper conductors with HDPE insulation to improve alien crosstalk performance. Each cable features snagless, booted RJ-45 male connectors with PVC hoods, making them ideal for high-density switch applications where ease of connection in tight spaces is required. This orange patch cable includes an individual length label for easy identification during installation and is suitable for use with hubs, switches, routers, and patch panels. It operates within a temperature rating of 75°C and features a 0.24 in (6 mm) cable diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508427 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Is the C2G CG50842 suitable for 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T equipment, including switches and routers, supporting 10 Gigabit transmission over 4 pair copper cabling.
What is the maximum length for 10 Gigabit transmission with this cable?
This patch cable supports 10 Gigabit data transmission for connections up to 100 meters.
Will this cable fit in high-density network switches?
Yes, the snagless hood design is specifically intended for high-density switch applications to prevent snagging and facilitate easier installation.
Does the CG50842 support color-coding for network organization?
This specific SKU comes in orange, which can be used alongside other colors from the C2G series to color-code your network installation.
What termination standard does this cable use?
The CG50842 patch cable uses the 568B wiring scheme.
