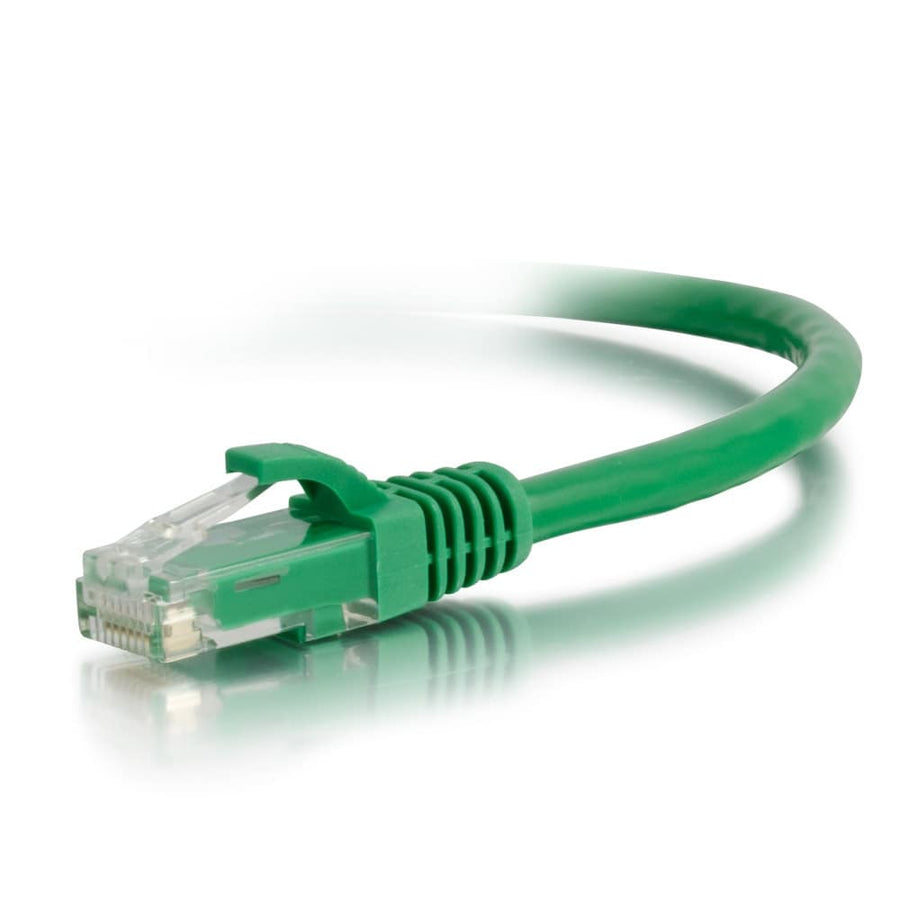

7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
7ft Cat6a Unshielded UTP Ethernet patch cable in green, featuring snagless boots for high-density environments
The C2G CG50785 is a 7 ft (2.1 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance data transmission. This green patch cable is optimized for 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels, supporting 10 Gigabit speeds over a 4-pair copper cable for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien cross talk performance compared to legacy Cat6 cabling. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. For ease of identification in complex network environments, the cable is color-coded green and includes an individual length label on every unit. The snagless, booted RJ-45 connectors are specifically designed to prevent accidental disconnects and facilitate installation in high-density switch applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507857 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
The CG50785 is designed for 10GBase-T ports and equipment such as switches, routers, hubs, and network adapters, supporting 10 Gigabit transmission for up to 100 meters.
The CG50785 is designed for 10GBase-T ports and equipment such as switches, routers, hubs, and network adapters, supporting 10 Gigabit transmission for up to 100 meters.
Is the CG50785 suitable for high-density switch environments?
Yes, the cable features snagless, booted RJ-45 connectors which are ideal for high-density switch applications and prevent accidental unplugging.
What is the difference between this and standard Cat6 cabling?
This Cat6a patch cable is designed to provide improved alien cross talk performance and supports 10 Gigabit Ethernet at distances where standard Cat6 may not.
What do I need to buy to complete my patch panel installation?
Depending on your setup, you may need compatible components such as the WP246A 24-Port Rack Mount Patch Panel or WP346AGN Green Quick Connect RJ45 Keystone Inserts.
Which testing standards does this cable meet?
Every CG50785 cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
