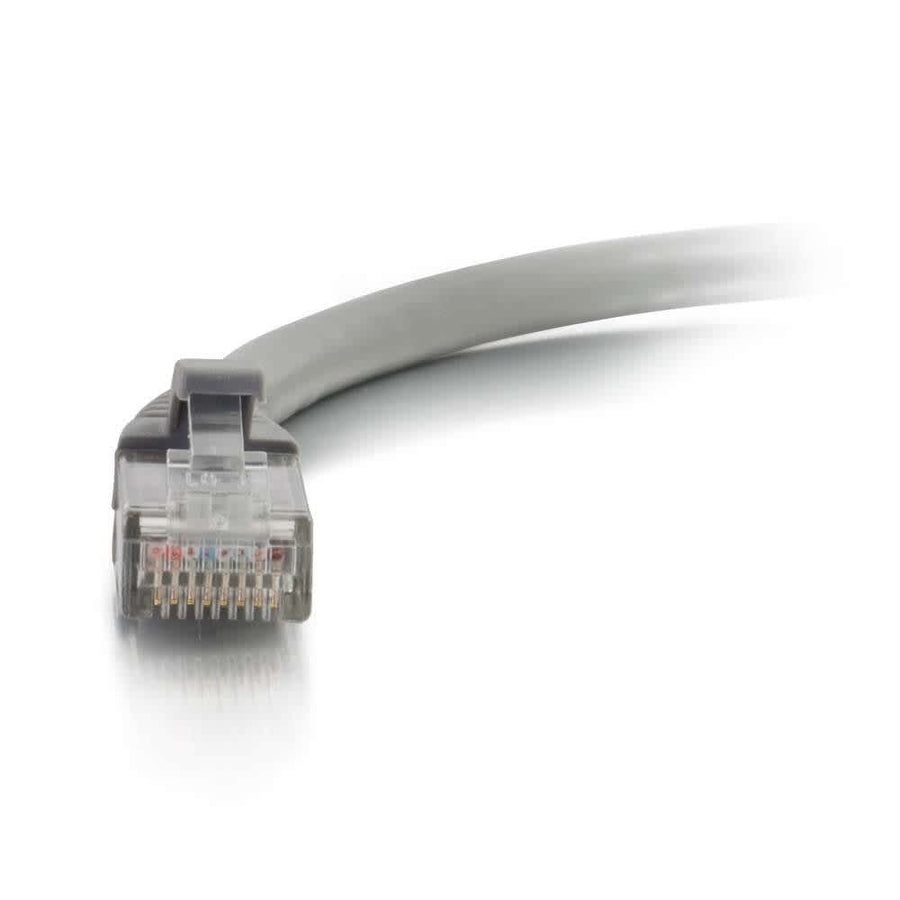

7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
7ft (2.1m) Gray Cat6a snagless UTP patch cable for 10GBase-T equipment and high-density switch applications
The C2G CG00661 is a 7 ft (2.1 m) Cat6a snagless unshielded UTP Ethernet network patch cable designed for high-speed data environments. This cable is engineered to support 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It facilitates 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters. This specific SKU is constructed with 26AWG (7/0.16) bare copper stranded conductors and HDPE insulation to improve alien crosstalk performance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The snagless PVC connector hood is specifically designed for ease of use in high-density switch applications, preventing accidental disconnection during maintenance. This gray patch cable features an individual length label for rapid identification during installation and is built with a PVC jacket and connector hoods.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006619 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00694$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6a cable work with my 10GbE switch?
Yes, the CG00661 is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters, supporting 10 Gigabit transmission.
What is the difference between this and the CG00694?
The CG00661 is a 7 ft (2.1 m) gray cable, whereas the CG00694 is a 6 ft (1.8m) blue version.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood on this Cat6a cable is specifically designed to facilitate use in high-density switch and patch panel applications.
Does this cable meet TIA standards?
The CG00661 is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements for reliable data transmission.
What accessories are compatible with this Cat6a cable?
This cable can be used with various components such as the WP346AIV Cat6a Quick Connect Keystone Insert or the WP246A 24-Port Rack Mount Patch Panel.
