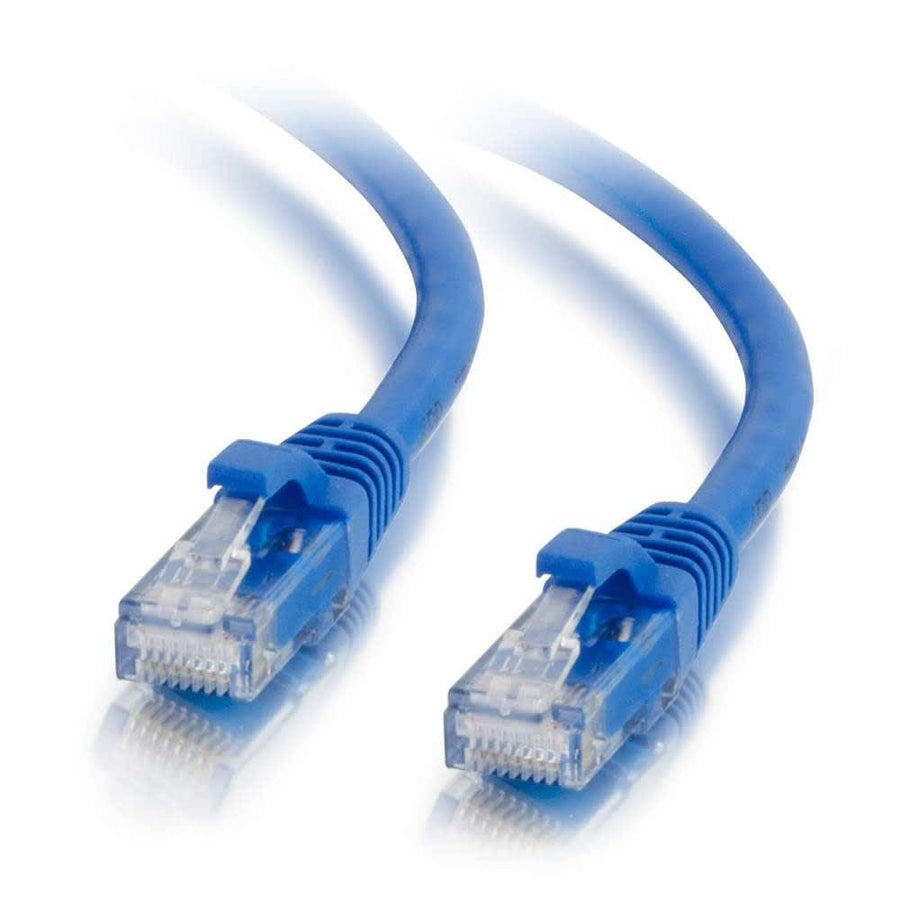

7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
7ft Blue Cat6a Unshielded UTP Ethernet patch cable with snagless boots for 10 Gigabit data transmission
The C2G CG00695 is a 7 ft (2.1 m) Cat6a Unshielded UTP Ethernet network patch cable designed for high-performance 10GBase-T applications. This blue cable facilitates 10 Gigabit data transmission over a 4-pair copper cable, supporting connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to older Cat6 cabling systems. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable features snagless PVC connector hoods to protect the termination in high-density switch environments. This patch cable uses a 568B wiring scheme and is rated for temperatures up to 75°C. The snagless design ensures easy installation in tight spaces, and each cable includes an individual length label for quick identification during deployment. It is an ideal solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006954 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters.
What is the wiring scheme for the C2G CG00695?
This patch cable utilizes the 568B wiring scheme and features RJ-45 male connectors on both ends.
What accessories are compatible with this cable?
This cable is compatible with various hardware including the WP246A Cat6a 24-Port Rack Mount Patch Panel and several Cat6a Quick Connect RJ45 Keystone Inserts such as the WP346ABE in blue.
How does the snagless design benefit my installation?
The snagless PVC connector hood protects the jack from damage, making it ideal for high-density switch applications where space is limited.
Is this cable suitable for commercial networking hardware?
Yes, it is intended for use with network adapters, hubs, switches, routers, and patch panels to provide improved alien crosstalk performance.
