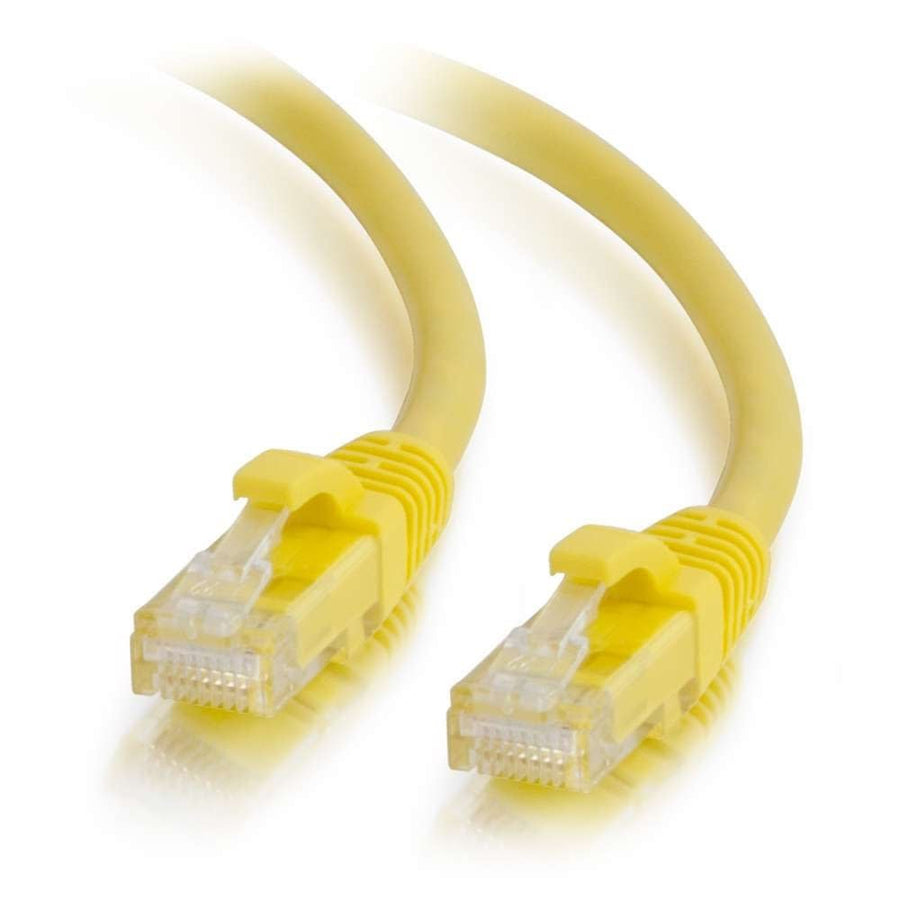

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
7ft yellow Cat6 unshielded UTP patch cable with snagless boots and RJ-45 male connectors
The C2G CG27192 is a 7 ft (2.1 m) Cat6 unshielded UTP Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This yellow cable meets all Cat6 TIA/EIA standards and is built to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The construction features copper stranded conductors and a 0.24 in (6.2 mm) cable diameter. To facilitate installation, the RJ-45 male connectors include snagless PVC hoods that protect the clips from damage during plugging and unplugging. This snagless design also provides extra strain relief for the cable. This specific SKU belongs to a series of Cat6 Snagless Patch Cables available in 10 different colors and various lengths up to 150ft to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271925 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my patch panel?
Yes, this cable is compatible with various hardware including the 48-Port Rack Mount Patch Panel (SKU 48845CC6) and the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
How do the snagless boots help during installation?
The snagless design uses a PVC hood to protect the RJ-45 connector clips from breaking during frequent plugging and unplugging, while also providing additional strain relief.
