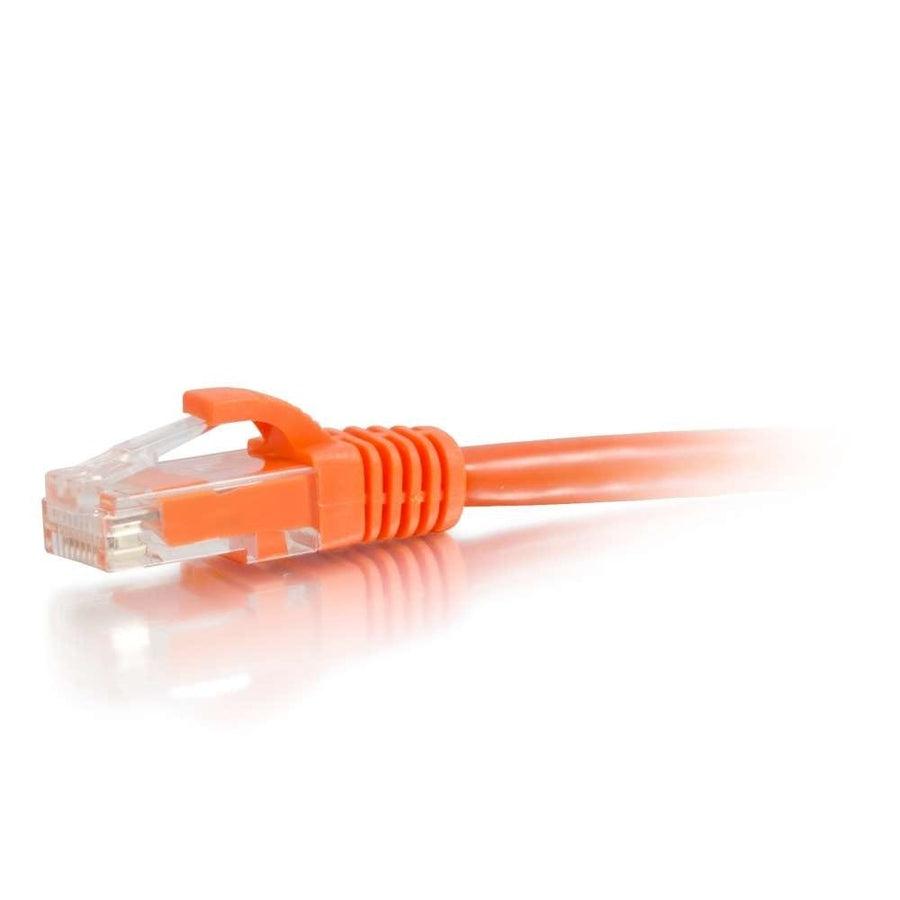

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
7ft Orange Cat6 Snagless UTP Ethernet patch cable for high-bandwidth voice, data, or video distribution applications
The C2G CG27812 is a 7 ft (2.1 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards, providing high performance by significantly reducing impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, the design utilizes high-quality copper stranded conductors. Each individual pair is bonded together to maintain consistent twist-spacing up to the termination point. For installation ease, the cable features a molded snagless boot made of PVC, which protects the RJ-45 clips from damage during plugging and unplugging while providing additional strain relief. This orange cable is part of a broader series available in 10 different colors to facilitate network color-coding, with lengths available up to 150ft. This SKU is an unshielded, orange variant within the Cat6 Snagless Patch Cable Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278122 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the length and color of this C2G patch cable?
The CG27812 is a 7 ft (2.1 m) cable in an orange color finish.
Is this cable shielded or unshielded?
This is an unshielded (UTP) Category 6 cable featuring stranded copper conductors.
Will this cable work with my Cat6 patch panel?
Yes, it is compatible with various hardware including the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What is the wiring scheme for the CG27812?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Does this cable have a warranty?
This product is covered by a manufacturer lifetime warranty.
