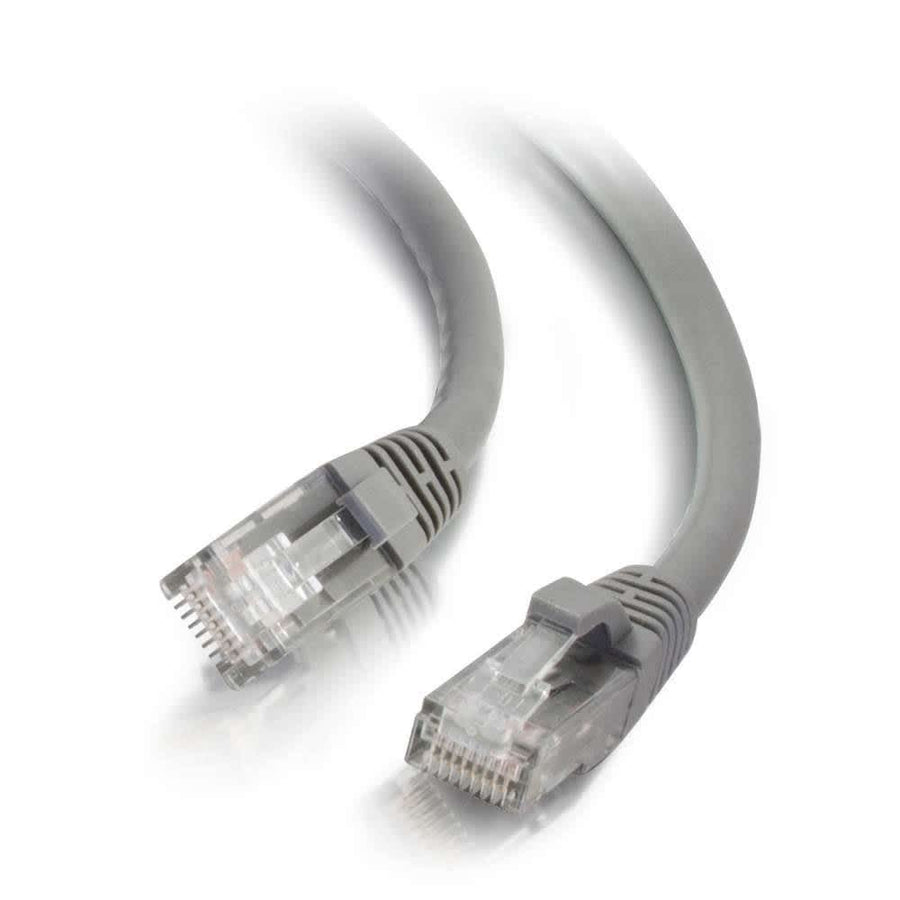

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 50 Pack - Gray
50-pack of 7ft (2.1m) Gray Cat6 UTP patch cables with snagless boots for high-bandwidth data distribution
The C2G CG29033 is a 50-pack of 7 ft (2.1 m) Cat6 Unshielded UTP Ethernet patch cables designed for high-bandwidth voice, data, or video distribution applications. These cables meet all Cat6 TIA/EIA standards, providing performance that drastically reduces impedance and structural return loss (SRL). Each cable is constructed with high-quality 24 AWG stranded copper conductors, which helps minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing throughout the entire 7 ft (2.1 m) length up to the termination point. The connectors feature a snagless, booted PVC hood design that prevents accidental snags during installation while providing extra strain relief. These gray cables operate in environments ranging from -4°F (-20°C) to 176°F (80°C) and utilize a standard T568B wiring scheme for reliable connectivity in Gigabit computer networks.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 50 |
| Shield Type | UTP |
| Shipping Weight | 10.26 lbs (4.7 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290339 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
12-Port Cat6 Network Interface Module
AC1015$164.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
0.5ft (0.15m) Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29858$9.99
Questions about this part
Is this patch cable suitable for high-bandwidth video or data distribution?
Yes, these Cat6 cables are designed for high-bandwidth voice, data, or video applications and meet all TIA/EIA Cat6 standards.
What is the wiring scheme used for these C2G cables?
The CG29033 patch cables utilize a standard T568B wiring scheme for all connections.
How many cables are included in this multipack?
This SKU is a 50-pack containing 50 individual 7 ft (2.1 m) Gray Cat6 patch cables.
Can I use these with a patch panel or surface mount box?
Yes, these are compatible with accessories like the CG37199 24-Port Cat6 110-Type Patch Panel and the WP3502WH Surface Mount Box.
What are the operating temperature limits for these cables?
These cables are rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
