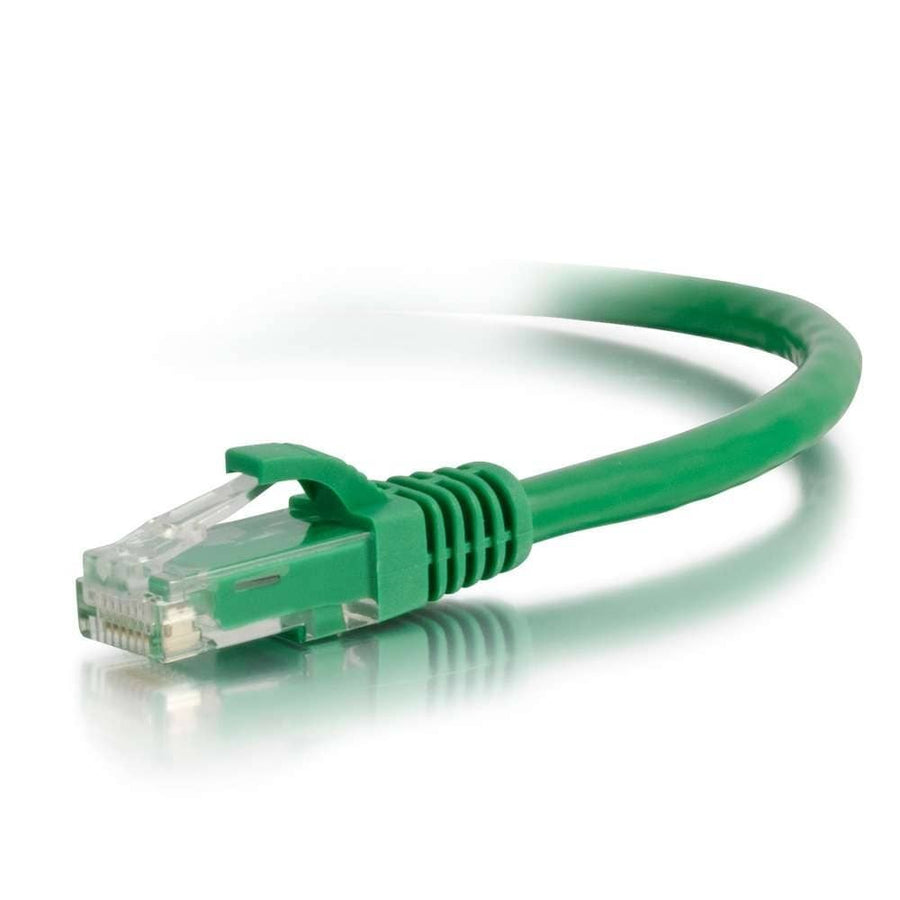

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Green
7ft Cat6 unshielded UTP patch cable in green, featuring a snagless boot for clip protection and strain relief
The C2G CG27172 is a 7ft (2.1m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards, providing performance that drastically reduces impedance and structural return loss (SRL). The construction utilizes high-quality copper stranded conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together, ensuring twist-spacing remains consistent right up to the termination point. This green cable features a snagless, booted RJ-45 male connector design that protects the locking clips from damage during frequent plugging and unplugging while providing extra strain relief. This SKU belongs to the C2G Cat6 Snagless Patch Cable series, which is available in various other colors for network color-coding and lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271727 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the length and color of the CG27172 cable?
This is a 7ft (2.1m) green Cat6 patch cable.
Does this cable support standard Cat6 performance requirements?
Yes, this cable meets all Cat6 TIA/EIA standards and is designed to reduce impedance and structural return loss.
What type of connectors does the CG27172 use?
The cable is equipped with two RJ-45 male connectors featuring a snagless, booted design for strain relief.
Is the CG27172 suitable for high-speed data applications?
Yes, it is designed for Gigabit computer networks requiring bandwidth-intensive distribution for voice, data, or video.
What is the wire gauge of this Cat6 cable?
The cable utilizes 24 AWG copper stranded conductors.
