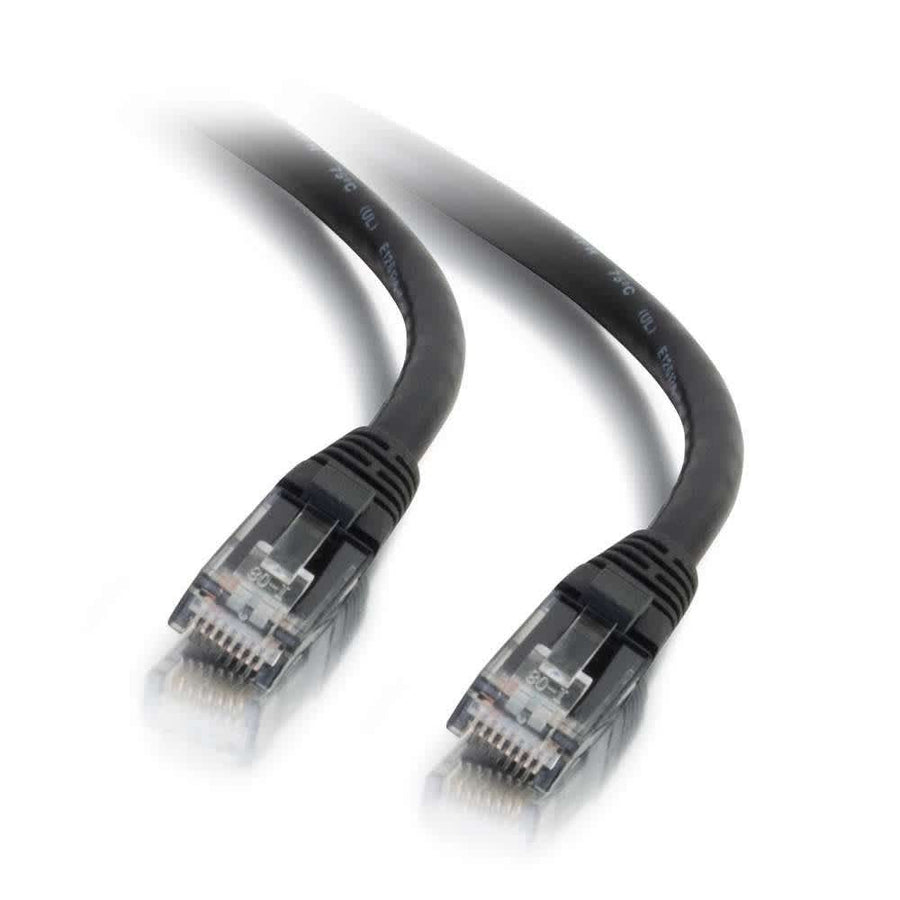

7ft (2.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
Black Cat6 snagless UTP patch cable, 7 ft (2.1 m) length, featuring stranded copper conductors and RJ-45 male connectors
The CG27152 is a 7 ft (2.1 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth applications. This cable is engineered for fast Ethernet and Gigabit computer networks that require reliable voice, data, or video distribution. Built with high-quality stranded copper conductors, this cable is designed to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the 0.24 in (6.2 mm) diameter line, extending right to the termination point to reduce impedance and structural return loss (SRL). This Cat6 cable meets all TIA/EIA standards for Category 6 performance. The construction includes PVC jacket material and PVC connector hoods. For installation ease, the molded snagless boots protect the RJ-45 male clips from damage during plugging and unplugging, providing additional strain relief in tight spaces. This black cable follows the T568B wiring scheme and is suitable for unshielded (UTP) environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271529 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the length and wiring for the CG27152?
This CG27152 patch cable is 7 ft (2.1 m) long and utilizes the T568B wiring scheme.
Will this Cat6 cable work in a high-bandwidth network?
Yes, this Cat6 cable is designed for Gigabit computer networks involving intensive voice, data, or video distribution.
How does the snagless design help during installation?
The molded snagless boots protect the RJ-45 clips from being broken during plugging and unplugging, while also providing extra strain relief.
What is the conductor material and cable type?
This is an unshielded (UTP) Cat6 cable featuring stranded copper conductors with a 0.24 in (6.2 mm) diameter.
What compliance and certifications does this cable have?
The CG27152 is listed with REACH, RoHS, and NDAA 889 compliance, and meets Prop 65 and TSCA requirements.
