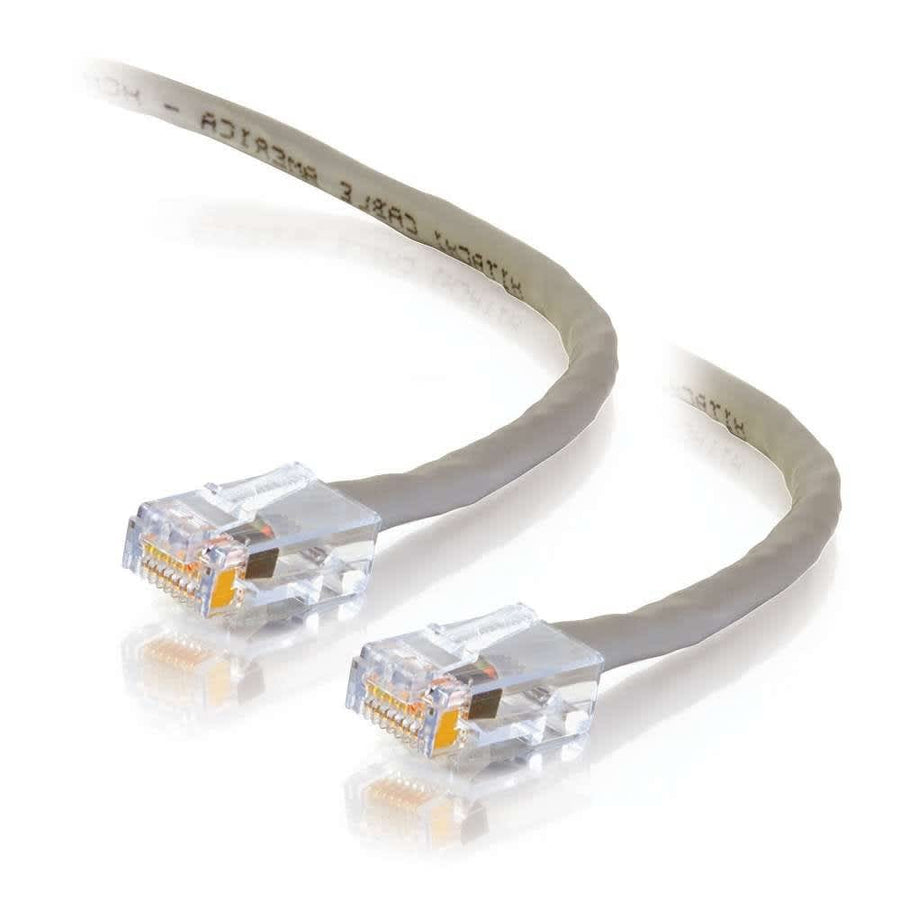

7ft (2.1m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Gray
7 ft (2.1 m) Cat6 plenum rated patch cable, CMP rated, unshielded UTP, gray finish
The C2G CG15267 is a 7 ft (2.1 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed to meet strict building codes for plenum spaces. This CMP-rated and FT6 rated cable is ideal for routing through air handling spaces, such as dropped ceilings or under raised floors in schools, hospitals, and commercial buildings. It is engineered for bandwidth-intensive voice, data, and video distribution applications. The cable features 23AWG solid copper conductors and is tested up to 550MHz to ensure performance. The construction includes 50 micron gold-plated RJ-45 male connectors and minimizes Near-End Crosstalk (NEXT) levels. This specific SKU is available in Gray, which allows for easy color-coding within a network installation. This TAA compliant cable is built to meet all Cat6 TIA/EIA-568-C.2 standards and is designed to reduce impedance and structural return loss (SRL).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152675 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG15267 suitable for plenum spaces?
Yes, this cable is CMP rated and FT6 rated, making it suitable for routing through plenum spaces above dropped ceilings or under raised floors.
What is the performance rating for this Cat6 cable?
This Cat6 UTP patch cable is tested up to 550MHz and is designed to reduce structural return loss (SRL) and impedance.
Does this cable meet TIA/EIA standards?
Yes, this cable is constructed to meet all Cat6 TIA/EIA-568-C.2 standards for reliable data and video distribution.
Is this product TAA compliant?
Yes, the CG15267 is TAA compliant, making it suitable for various government and commercial procurement requirements.
What is the conductor material and gauge for this SKU?
This cable uses 23AWG solid copper conductors in a 4-pair UTP configuration.
