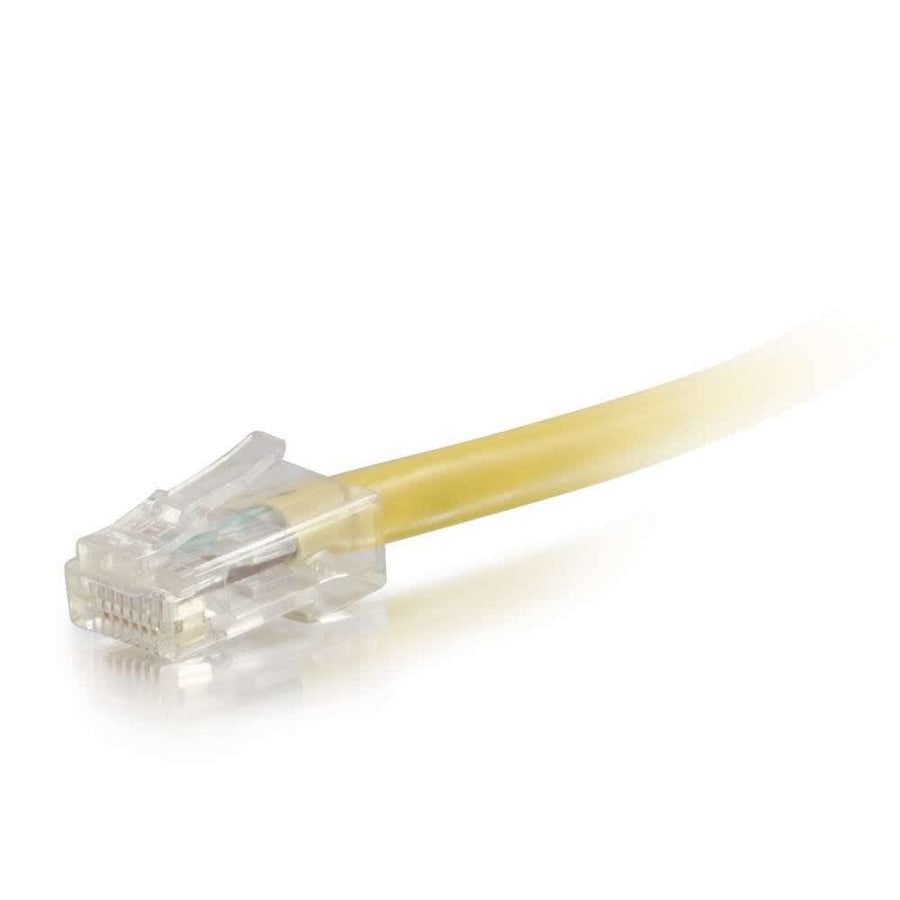

7ft (2.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
7ft yellow Cat6 UTP patch cable with stranded copper conductors and T568B wiring for high-bandwidth data applications
The C2G CG04175 is a 7ft (2.1m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This yellow cable is constructed from high-quality stranded copper conductors, which helps minimize Near-End Crosstalk (NEXT) levels. The design ensures that individual pairs are bonded together to maintain twist-spacing from the connector to the termination point, effectively reducing both impedance and structural return loss (SRL). This cable follows the T568B wiring scheme and is rated for a maximum temperature of 75°C. Featuring a non-booted connector type with RJ-45 male ends on both sides, this Cat6 cable provides the performance required for Gigabit computer networks. Its yellow PVC jacket allows for easy color-coding within complex network environments. This product is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041757 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04175?
This Cat6 patch cable follows the T568B wiring scheme and uses RJ-45 male connectors.
Will this cable work for high-speed Gigabit networking?
Yes, it is designed for fast Ethernet and Gigabit networks requiring high bandwidth for video, data, or voice.
What type of conductor is used in this patch cable?
The CG04175 utilizes high-quality stranded copper conductors to help reduce Near-End Crosstalk.
Is this cable rated for high temperature environments?
This cable has a temperature rating of up to 75°C.
What is the jacket material of the CG04175?
The cable features a PVC jacket with a 0.24 in (6 mm) diameter.
