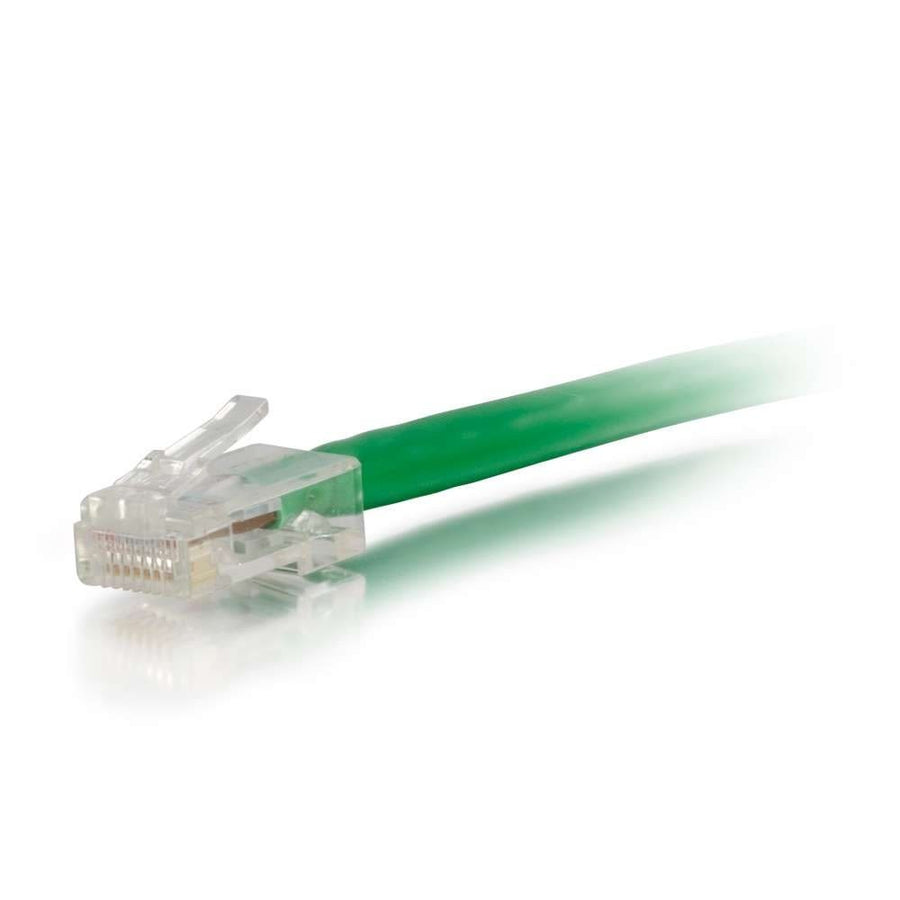

7ft (2.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Green
7ft (2.1m) green Cat6 UTP patch cable, non-booted design, with stranded copper conductors and RJ-45 male connectors
The C2G CG04133 is a 7 ft (2.1 m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards, helping to drastically reduce both impedance and structural return loss (SRL). It is constructed with high-quality copper stranded conductors and features a PVC jacket with a 0.24 in (6 mm) diameter. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together, which helps maintain consistent twist-spacing throughout the entire line up to the termination point. This green-jacketed cable utilizes an RJ-45 male to RJ-45 male connector configuration with a T568B wiring scheme. It is rated for temperatures up to 75°C and is suitable for high-speed Gigabit computer networks requiring stable performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041337 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring configuration for the CG04133?
This patch cable uses the T568B wiring scheme on both RJ-45 male connectors.
What can I use this Cat6 cable with?
It is compatible with various hardware including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (24845CC6).
Is this cable suitable for high-speed Gigabit networks?
Yes, it is designed for fast Ethernet and Gigabit networks, meeting all Cat6 TIA/EIA standards to reduce impedance and return loss.
What are the physical dimensions of this cable?
The cable has a length of 7 ft (2.1 m) and a diameter of 0.24 in (6 mm).
What certifications does this product have?
The CG04133 is CE, REACH, and RoHS compliant.
