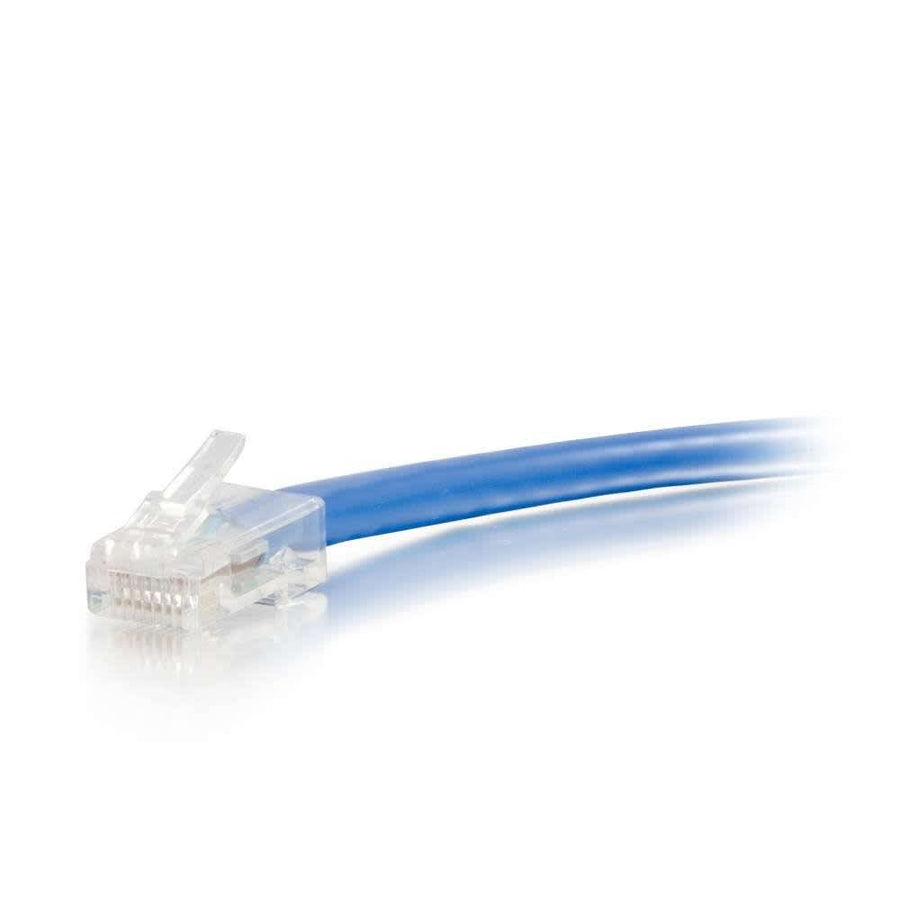

7ft (2.1m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
7ft Cat6 Unshielded UTP Ethernet patch cable in blue with stranded copper conductors and T568B wiring
The C2G CG04091 is a 7 ft (2.1 m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth voice, data, or video distribution applications. This cable is built to support fast Ethernet and Gigabit computer networks while meeting all Cat6 TIA/EIA standards. The construction utilizes high quality copper stranded conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together, which helps preserve twist-spacing throughout the entire line up to the termination point. This design drastically reduces both impedance and structural return loss (SRL). This specific blue SKU is part of a series with 22 different length options and 10 color choices available. The 0.24 in (6 mm) diameter jacket is made of PVC and is rated for a temperature range of 75°C. This non-booted cable uses an RJ-45 male to RJ-45 male connector configuration with a T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040910 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my network patch panel?
Yes, this cable is compatible with various C2G hardware, including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (24845CC6).
What is the wiring standard for the CG04091?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this cable suitable for high-bandwidth video distribution?
Yes, the Cat6 rating and stranded copper construction are designed for bandwidth-intensive voice, data, and video distribution applications.
What is the difference between this and the other C2G Cat6 patch cables?
This SKU is a blue, 7 ft length, non-booted version; the series offers 150 different variants across various lengths and colors.
Does this cable require additional tools for installation?
As a pre-terminated patch cable with RJ-45 male connectors, it is ready for immediate connection without additional installation tools.
