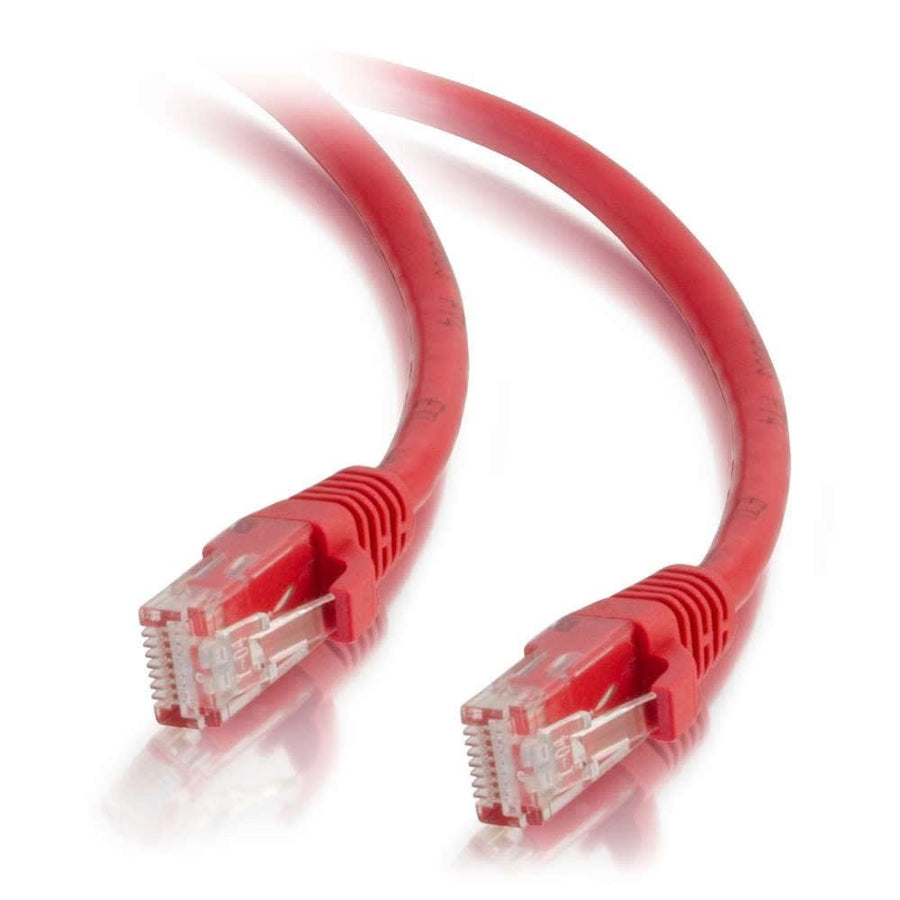

7ft (2.1m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Red
7ft (2.1m) Red Cat5e Snagless Unshielded UTP Ethernet Patch Cable with stranded copper conductors
The C2G CG15197 is a 7ft (2.1m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in red. This cable is engineered for fast Ethernet networks that require high bandwidth for voice, data, or video distribution. Built with high-quality stranded copper conductors, this design minimizes Near-End Crosstalk (NEXT) levels and helps maintain twist-spacing through the line up to the termination point. This construction reduces both impedance and structural return loss (SRL) to support demanding applications. Each cable features a molded, snagless PVC boot that protects the RJ-45 clips from damage during installation and provides added strain relief. These unshielded twisted pair (UTP) cables operate at a bandwidth of 350 mHz and follow the T568B wiring scheme. The cable has a 0.21 in (5.3 mm) diameter and is rated with a 24 AWG wire gauge. This red cable is part of a larger series available in up to 150ft lengths and 10 different colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151975 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum bandwidth for the C2G CG15197?
The CG15197 is rated for a bandwidth of 350 mHz, supporting high-speed data, voice, and video distribution.
How does the snagless design help during installation?
The molded snagless boot protects the RJ-45 clips from being damaged when plugging or unplugging, providing extra strain relief.
What is the difference between this and other C2G Cat5e cables?
This SKU is the 7ft red version; the series is available in 10 different colors and lengths up to 150ft.
Is this cable suitable for high-crosstalk environments?
Yes, the stranded copper construction is designed to minimize Near-End Crosstalk (NEXT) and reduce structural return loss.
What electrical specifications does this patch cable meet?
This cable features a maximum conductor DC resistance of 89 Ohm/km and a minimum insulation resistance of 100 Ohm/km.
