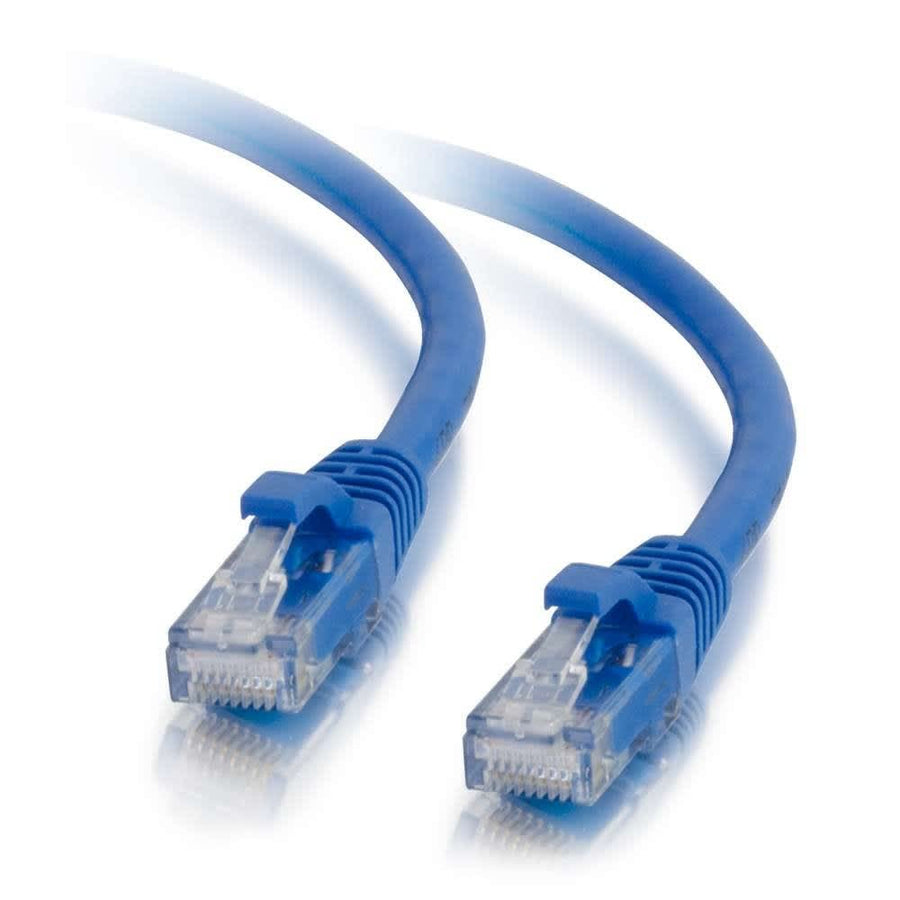

7ft (2.1m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
Blue 7ft (2.1m) Cat5e snagless UTP patch cable with stranded copper conductors for Ethernet networking
The C2G CG15193 is a 7 ft (2.1 m) Cat5e snagless unshielded UTP Ethernet network patch cable finished in blue. This cable is designed for fast Ethernet networks that require bandwidth-intensive distribution for voice, data, or video applications. It meets all Cat5e TIA/EIA standards and is engineered to drastically reduce both impedance and structural return loss (SRL). Each individual pair is bonded together to help maintain the twist-spacing throughout the line right up to the termination point, a design that minimizes Near-End Crosstalk (NEXT) levels. The cable features stranded copper conductors and a 24 AWG wire gauge. For physical protection, the RJ-45 male connectors include a PVC snagless boot that provides extra strain relief and prevents the clips from being damaged during installation or frequent unplugging. This unshielded twisted pair (UTP) cable has a 0.21 in (5.3 mm) diameter and a bandwidth of 350 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151937 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
What is the maximum bandwidth for the CG15193 cable?
The CG15193 is rated for a bandwidth of 350 mHz, making it suitable for bandwidth-intensive data and video applications.
Does this patch cable include strain relief?
Yes, the CG15193 features a snagless boot design that provides extra strain relief and protects the connector clips from damage.
What is the wiring scheme for this Cat5e cable?
This cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is the CG15193 a shielded or unshielded cable?
The CG15193 is an unshielded twisted pair (UTP) cable with a 0.21 in (5.3 mm) diameter.
Which documents are available for the CG15193?
Installers can access the Cat5e Snagless Unshielded Cables PDF, the Cat5e Network Patch Cable Overview, and the C2G Ethernet Patch Cable Matrix.
