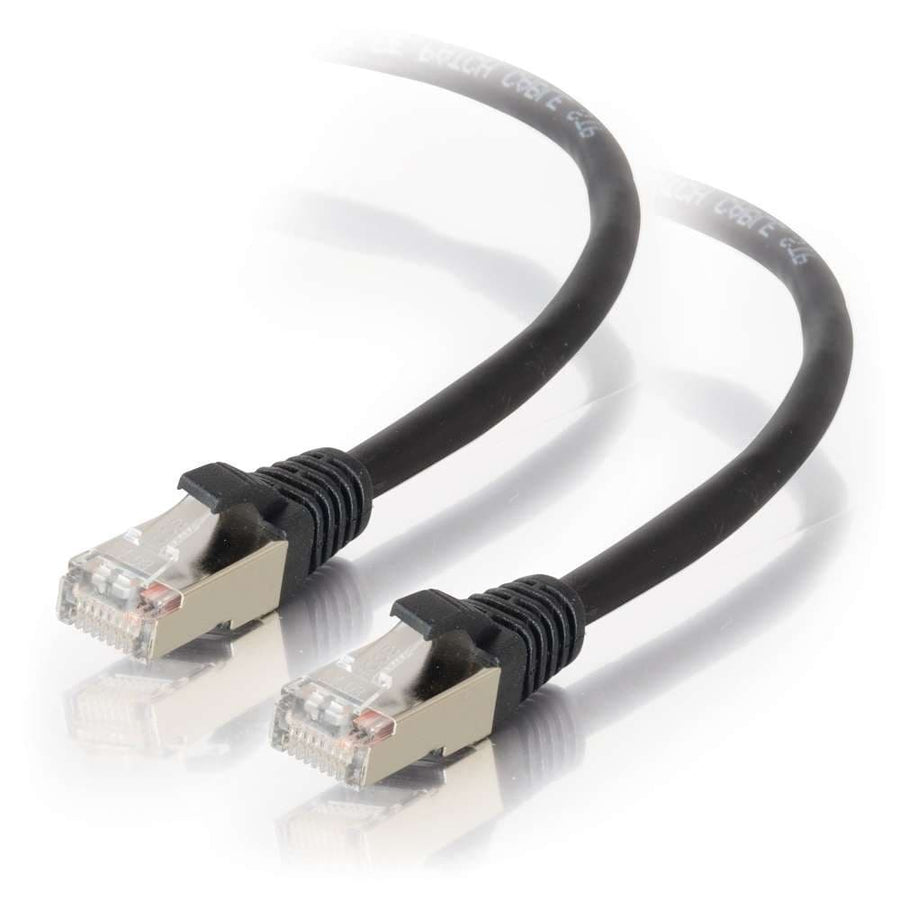

7ft (2.1m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat5e STP patch cable, 7 ft (2.1 m) length, featuring snagless boots and copper stranded conductors for EMI/RFI protection
The C2G CG28692 is a 7 ft (2.1 m) Cat5e shielded STP Ethernet network patch cable designed for connectivity in environments prone to high electromagnetic interference (EMI) or radio frequency interference (RFI). This F/UTP cable utilizes an overall cable foil shield and a drain wire to provide continuous protection against noise. The cable features 24 AWG stranded copper conductors and is wired to the TSB 568B (AT+T 258A) standard. For durability and ease of installation, the RJ-45 male connectors include PVC snagless boots that provide extra strain relief. Each connector is shielded and utilizes 50 micron gold-plated contacts. This cable is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C). To achieve a complete end-to-end shielded system, this cable should be used with Cat5e shielded patch panels and shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120286929 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this Cat5e cable work in high-interference environments?
Yes, the F/UTP shielding and overall cable foil shield are designed specifically to provide protection from EMI/RFI noise.
What is required for a complete end-to-end shielded installation?
For maximum protection, use this cable in conjunction with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
Does this cable include snagless boots for strain relief?
Yes, the CG28692 features molded PVC snagless boots on both RJ-45 male connectors to provide extra durability.
What is the operating temperature range for the CG28692?
This patch cable is rated for operating temperatures from -4°F to 176°F (-20°C to 80°C).
What is the wire gauge and conductor material?
This cable uses 24 AWG stranded copper conductors and features 50 micron gold-plated RJ45 connectors.
