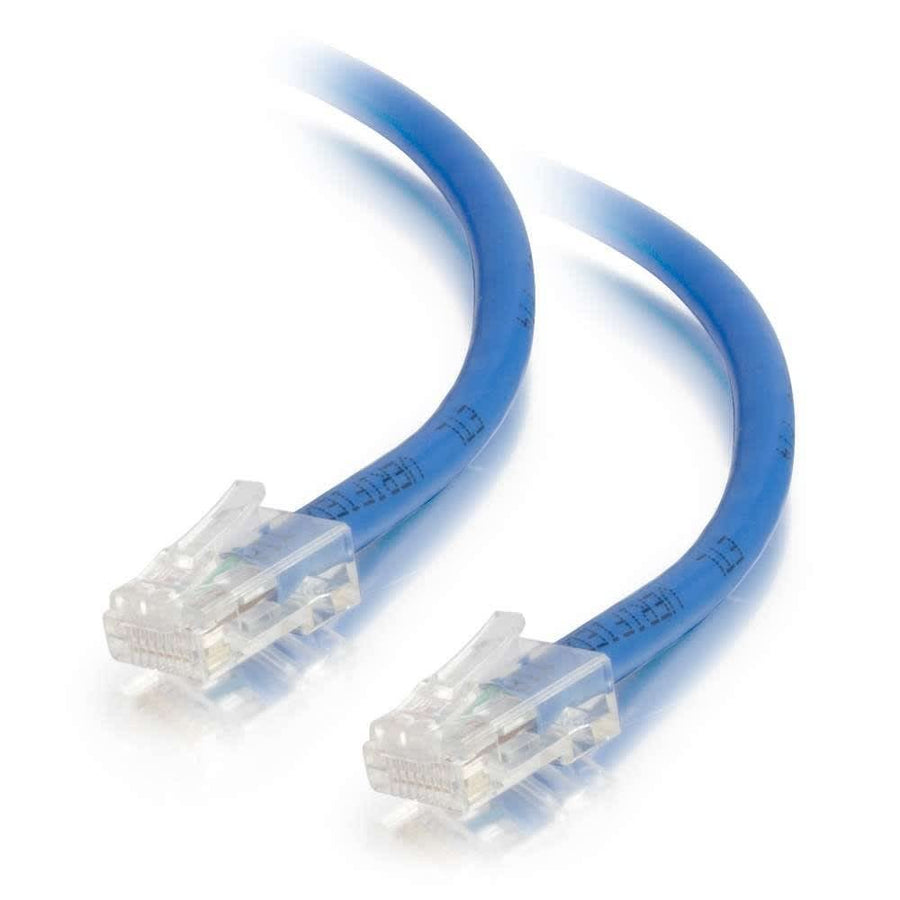

7ft (2.1m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
7ft blue Cat5e UTP patch cable with non-booted RJ-45 connectors for high-bandwidth network applications
The C2G CG22685 is a 7ft (2.1m) Cat5e unshielded twisted pair (UTP) Ethernet patch cable designed for high-bandwidth voice, data, or video distribution applications. This cable features a non-booted connector design and is constructed with high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. The T568B wiring scheme and 24 AWG wire gauge ensure performance meets all Cat5e TIA/EIA standards, which significantly reduces impedance and structural return loss (SRL). Each individual pair is bonded together to maintain precise twist-spacing from the cable through to the termination point. This blue cable is suitable for connecting network adapters to hubs, switches, and routers in various environments. It features a PVC jacket with a 0.21 in (5.3 mm) diameter and is compliant with REACH, RoHS, and CE standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120226857 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
What is the purpose of the CG22685 patch cable?
The CG22685 is designed for bandwidth-intensive network applications involving voice, data, or video distribution between devices like hubs, switches, and routers.
What connector type does the CG22685 use?
This 7ft Cat5e cable uses non-booted RJ-45 male connectors on both ends for standard network interfacing.
Is the CG22685 suitable for color-coding a network?
Yes, this specific SKU is blue, and the series is available in 10 different colors to assist with network organization.
What are the electrical properties of this cable?
This cable features 24 AWG stranded copper conductors with a maximum conductor DC resistance of 89 /km.
What accessories are compatible with this Cat5e cable?
This cable is compatible with various C2G modules, including the AC1058 8 Port Cat5e Network Interface Module and several WP3450 series keystone connectors.
