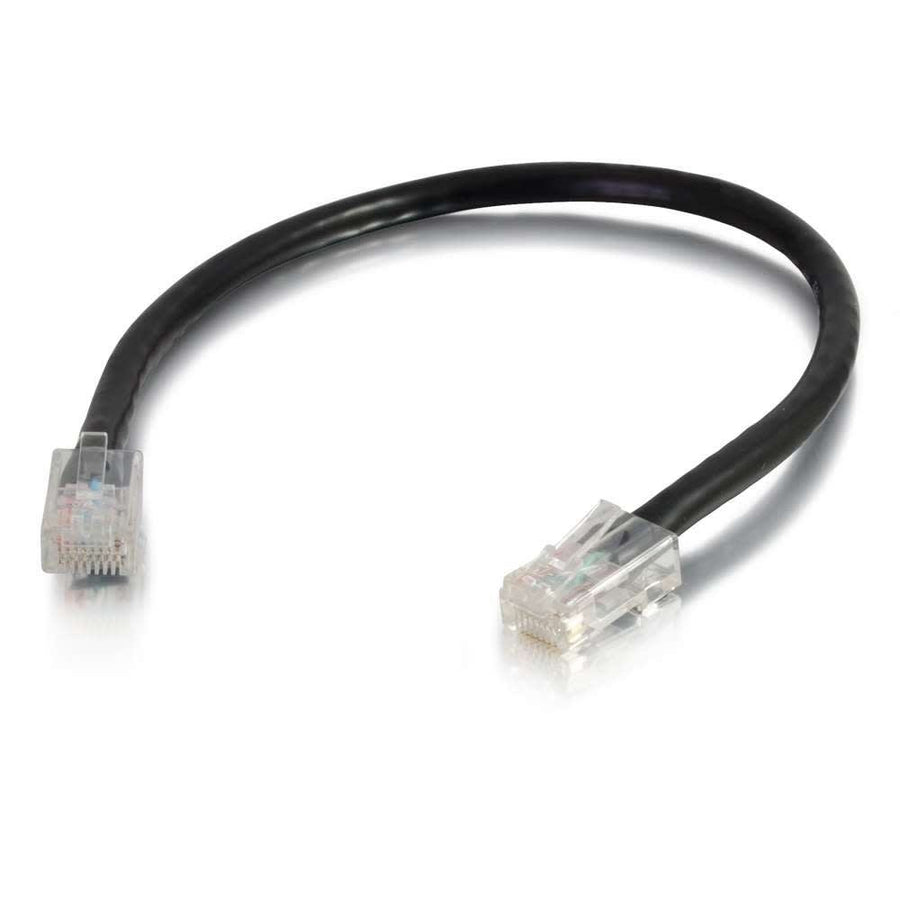

7ft (2.1m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
7ft Cat5e unshielded UTP Ethernet patch cable in black with stranded copper conductors and T568B wiring
The C2G CG22689 is a 7 ft (2.1 m) Cat5e Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, and video distribution in fast Ethernet computer networks. This black patch cable features 24 AWG stranded copper conductors, which help minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, reducing impedance and structural return loss (SRL). This cable utilizes a non-booted connector type with RJ-45 Male ends on both sides, following the T568B wiring scheme. It is constructed with a PVC jacket and is rated for standard applications. This SKU is part of a larger series of Cat5e Non-Booted Patch Cables available in various colors to support color-coded network installations. This cable is rated for CMG in-wall use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120226895 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum length available in the C2G Cat5e patch cable series?
While this specific SKU is 7 ft, the series is available in lengths up to 150 ft.
What type of connectors are used on the CG22689?
The CG22689 features non-booted RJ-45 Male connectors on both ends of the cable.
Can I use this cable to color-code my network installation?
Yes, this black cable is one of 10 available colors in this series used for network color-coding.
Is this cable suitable for in-wall installation?
Yes, this cable features a CMG In-Wall rated jacket.
What is the wiring standard for this patch cable?
This cable follows the T568B wiring scheme and uses 24 AWG stranded copper conductors.
