75ft (22.8m) USB-A Male to Female Active Extension Cable - Plenum, CMP-Rated
75ft USB-A Male to Female active extension cable, CMP-rated plenum jacket, supports USB 2.0 480 Mbps data transfer
The CG39936 is a 75ft (22.9 m) USB-A Male to Female active extension cable designed to overcome the 5 meter (16.5ft) distance limitations inherent in standard USB cabling. This active device utilizes internal buffering to actively manage incoming and outgoing signals, ensuring the connection remains compliant with USB 2.0 specifications for electrical and timing requirements. Because this cable is an active extension, it draws the power required for its internal operation directly through the USB port. This specific model is built with a CMP-rated, FT6-rated PVC jacket, making it suitable for installation in commercial plenum spaces where air circulation requirements demand specific fire and smoke safety standards. The cable features a 0.24 in (6 mm) diameter and a 2.36 in (60 mm) bend radius. It supports bidirectional signal transmission at a data transfer rate of 480 MBPS. This solution is compatible with both high-speed and low-speed USB devices, providing a reliable link for long-distance peripheral connections in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.36 in (60 mm) |
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | 14° - 167°F (-10° - 75°C) |
| Shipping Weight | 4.4 lbs (2 kg) |
| Signal Transmission | Bidirectional |
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 14 Fahrenheit (-10 Celsius) |
All other specifications 13
| Wire Gauge | 24 |
| Cable Type | Active Copper CableExtensionUSB |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Active DeviceCable |
| TAA Compliant | No |
| UPC | 757120399360 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
You'll need these with it

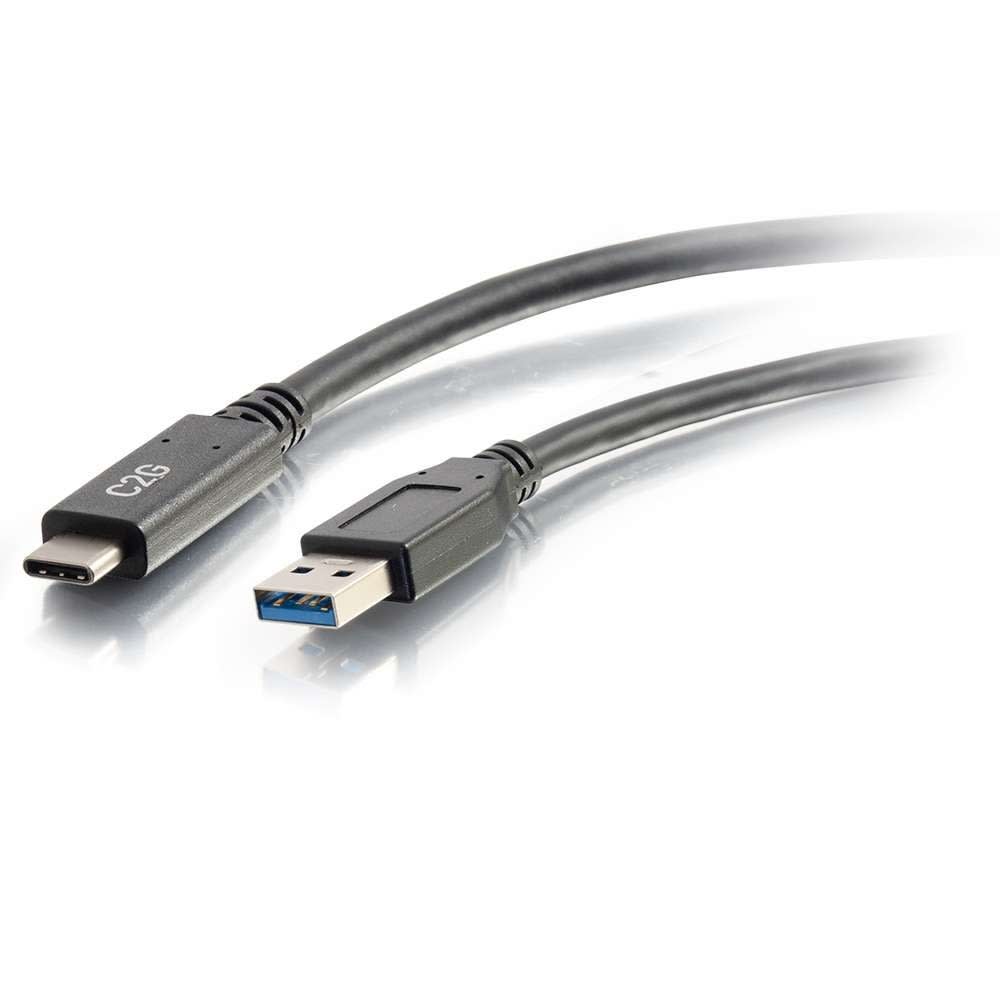

10ft (3m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
CG28833$30.99
6ft (1.8m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
CG28832$26.99

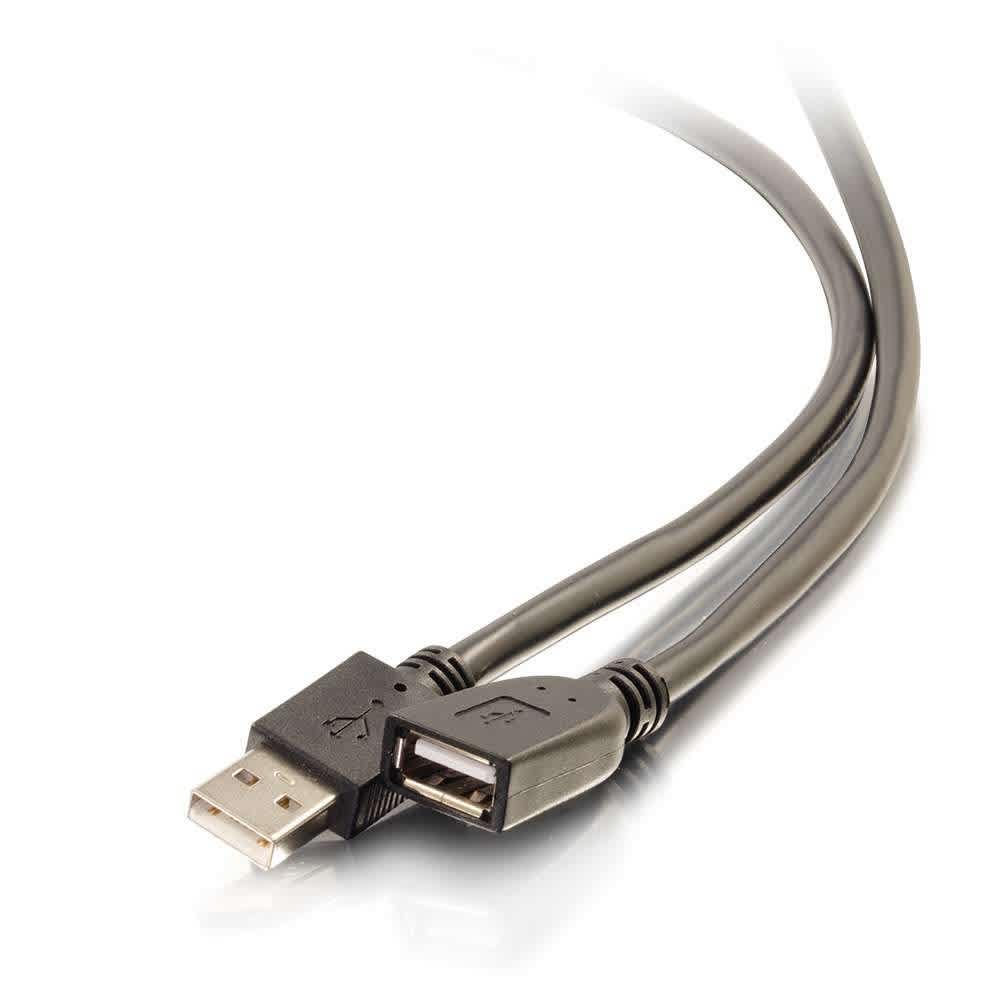

50ft (15.2m) USB-A Male to Female Active Extension Cable - Plenum, CMP-Rated
CG39935$223.99
10ft (3m) USB 2.0 USB-C to USB-A Cable M/M - Black
CG28872$34.99
Questions about this part
Will this CG39936 cable work for long-distance USB runs?
Yes, this 75 ft (22.9 m) active extension cable uses internal buffering to overcome the standard 5 meter USB distance limit, supporting bidirectional data at 480 Mbps.
Is the CG39936 suitable for plenum ceiling installations?
Yes, the cable features a CMP-rated and FT6-rated jacket designed specifically for installation in commercial plenum spaces.
Does this cable require an external power supply?
No, this is an active device that draws the power required for operation directly through the USB port.
What is the difference between the CG39936 and the CG39935?
The CG39936 is a 75 ft (22.9 m) version, whereas the CG39935 is the 50 ft (15.2 m) variant of this same CMP-rated active extension series.
Which USB devices are compatible with this extension?
This cable is compatible with both high-speed and low-speed USB 2.0 devices, including those requiring 480 MBPS transfer rates.
