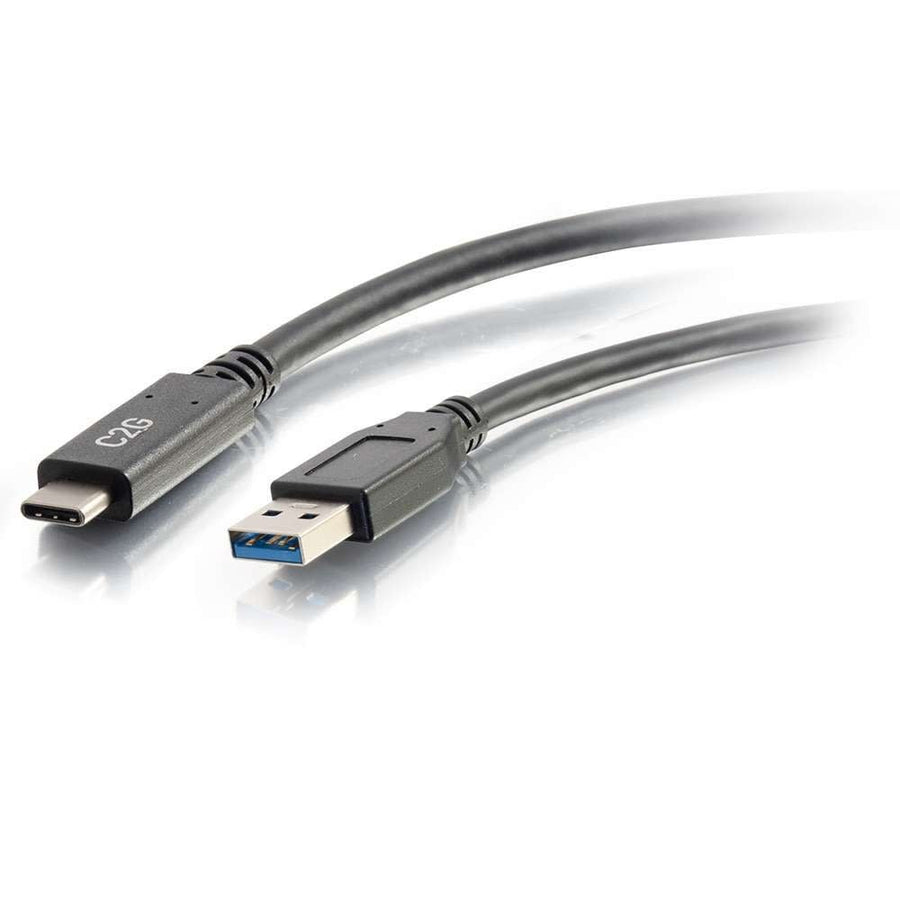

10ft (3m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
10ft USB-C to USB-A 3.2 Gen 1 SuperSpeed cable for 5Gbps data transfer and 3A charging
The C2G CG28833 is a 10 ft (3.1 m) USB-C to USB-A 3.2 Gen 1 SuperSpeed cable designed to connect USB-C enabled devices to standard USB-A ports. This bidirectional cable supports data transfer speeds up to 5Gbps, making it suitable for moving photos, music, and large files quickly. It provides a 3A charging output to ensure laptops, tablets, and smartphones are powered effectively while maintaining a high-speed data connection. The USB IF Certified construction features a symmetrical USB-C connector that is identical on both sides, allowing for reversible, easy insertion that prevents port damage. This black cable is built with a PVC jacket that carries a VW-1 rating and features a 0.19 in (4.8 mm) diameter. The cable is rated for a maximum conductor resistance of 378 OHMS/KM at 20°C and is designed to operate in temperatures ranging from 32° to 122°F (0° to 50°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 3 Amp |
| Bend Radius | 1.89 in (48 mm) |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.33 lbs (0.2 kg) |
All other specifications 20
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-A Male(1) USB-A Male |
| Jacket Rating | VW-1 |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288336 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
6ft (1.8m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
CG28832$26.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will this USB-C to USB-A cable work for fast charging?
Yes, this cable supports a 3A charging output, making it suitable for charging smartphones, tablets, and other USB-C compatible devices.
What is the maximum data transfer rate for the CG28833?
This cable supports SuperSpeed USB 5Gbps data transfer rates using USB 3.2 Gen 1 technology.
Is there a shorter or longer version of this cable available?
Yes, this is part of a series that includes a 6ft (1.8m) version, part number CG28832.
What are the environmental operating requirements for this cable?
The cable is designed to operate in temperatures between 32° to 122°F (0° to 50°C) with a relative humidity range of 15% to 85% (non-condensing).
Which accessories are compatible with this USB-C cable?
You can use the CG54428 USB-C female to USB-A male adapter or the CG29854 USB-C male to USB-A female adapter converter with this cable.
