10ft (3m) USB 2.0 USB-C to USB-A Cable M/M - Black
10ft USB 2.0 cable featuring USB-C male and USB-A male connectors in a black PVC jacket

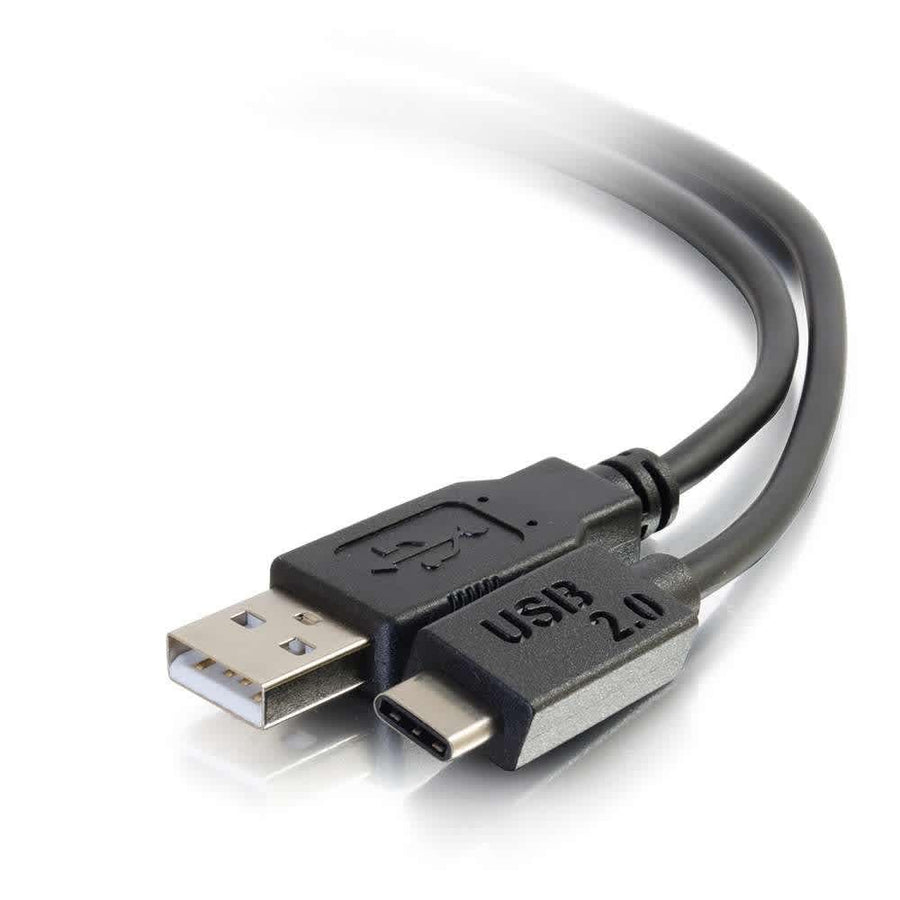

The C2G CG28872 is a 10 ft (3.1 m) USB 2.0 cable designed for bidirectional signal transmission between USB-C and USB-A interfaces. This cable features a USB-C male connector on one end and a USB-A male connector on the other, allowing for high-speed data transfer rates of up to 480 MBPS. Constructed with a 30 AWG wire gauge and a durable PVC jacket, the cable is designed for stability in various environments, supporting operating temperatures from -4°F to 176°F (-20°C to 80°C) and humidity levels between 20% and 80% RH (non-condensing). The cable diameter is 0.15 in (3.8 mm) with a minimum bend radius of 1.5 in (38 mm). This component is NDAA 889 compliant and carries CE and RoHS certifications. For different lengths in the same series, refer to the 12ft (3.7m) model, CG28873.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.5 in (38 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-A Male(1) USB-A Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120288725 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
12ft (3.7m) USB 2.0 USB-C to USB-A Cable M/M - Black
CG28873$36.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
What is the maximum data transfer speed for the CG28872?
The CG28872 supports USB 2.0 data transfer rates up to 480 MBPS.
What is the difference between the CG28872 and the CG28873?
The CG28872 is a 10 ft (3.1 m) cable, while the CG28873 is a 12 ft (3.7 m) version of the same USB-C to USB-A M/M cable.
What accessories are recommended for cable management with this SKU?
For organized installation, this cable is compatible with CG43037 6in black cable ties and CG29854 11in hook-and-loop management wraps.
Is this cable suitable for use in various environmental conditions?
Yes, it is rated for operating temperatures from -4°F to 176°F (-20°C to 80°C) and non-condensing humidity between 20% and 80% RH.
Which certifications does the CG28872 hold?
The CG28872 is NDAA 889, CE, RoHS, REACH, and TSCA compliant.
