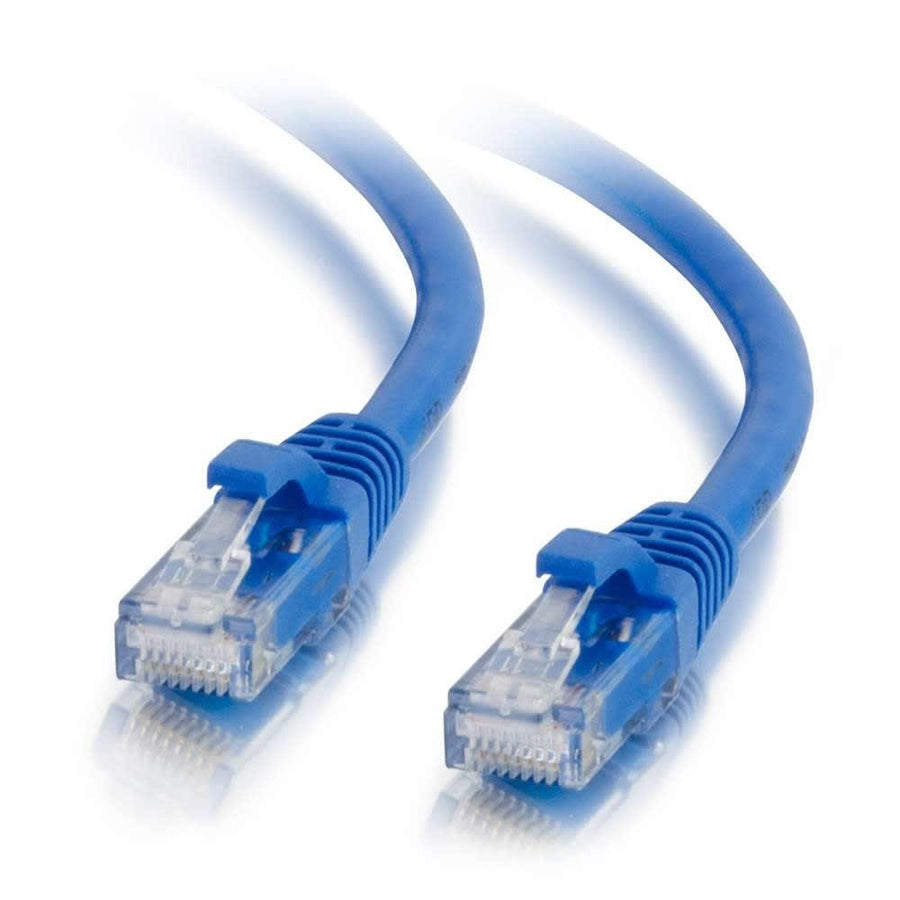

75ft (22.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
75ft blue Cat6a snagless UTP patch cable, 26AWG stranded copper for 10GbE networking applications
The C2G CG50878 is a 75ft (22.9 m) Cat6a patch cable designed to support 10GBase-T equipment, including network adapters, switches, routers, and patch panels. This unshielded UTP cable facilitates 10 Gigabit data transmission over a 4-pair copper configuration, supporting connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for high-speed data transfers. The cable features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. To accommodate high-density switch applications, the RJ-45 connectors include snagless PVC boots to protect the termination. The blue jacket allows for easy color-coding within complex network infrastructures. This cable is rated for temperatures up to 75°C and utilizes a 568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.94 lbs (0.9 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508786 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Is the C2G CG50878 compatible with 10GbE equipment?
Yes, this Cat6a cable is designed specifically for 10GBase-T ports and equipment, including switches, routers, and hubs.
What is the maximum distance this Cat6a cable supports?
This cable enables 10 Gigabit data transmission over 4-pair copper for connections up to 100 meters.
What wiring scheme does this patch cable use?
The CG50878 cable uses the 568B wiring scheme for all connections.
Will this cable work in high-density patch panels?
Yes, the snagless boot design is intended to protect the connectors in high-density switch and patch panel applications.
